The perfect desktop accessory for circuit designers of any level!
Designed by Fundamentalz in United States of AmericaThis product is no longer available for sale.
The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

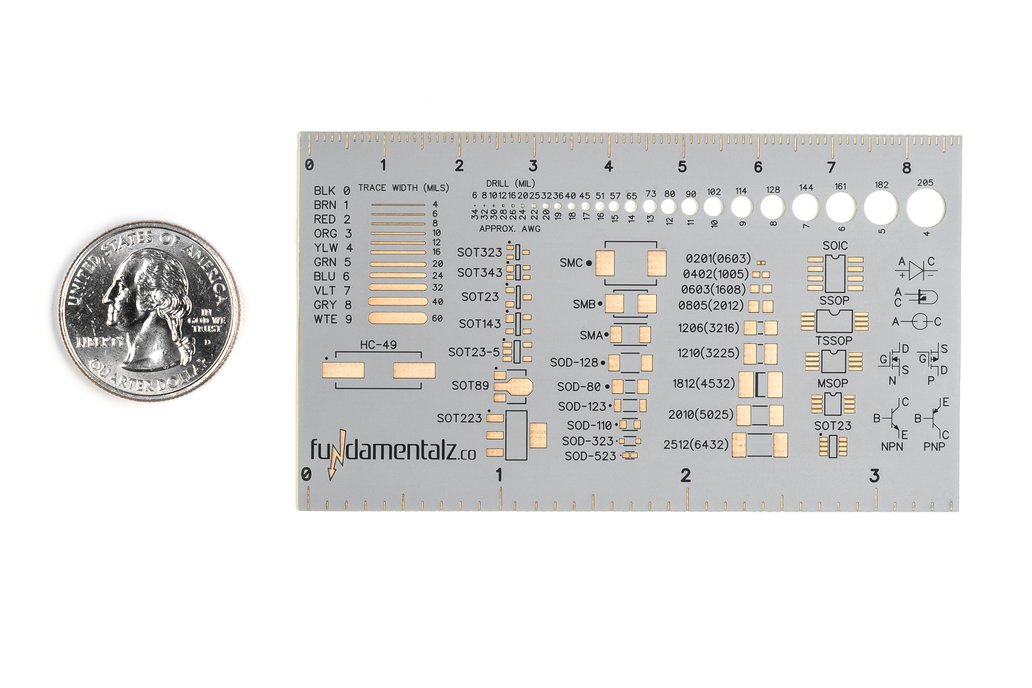

This handy little gold-plated card provides a quick visual reference for the most common surface mount components, traces widths, hole sizes and more. (It's even a ruler!) PCB Specifications Materia…
Read More…This handy little gold-plated card provides a quick visual reference for the most common surface mount components, traces widths, hole sizes and more. (It's even a ruler!)
PCB Specifications
Material: FR-4
Board Thickness: 0.062"
Copper Thickness: 1Oz
Finish: Electroless Nickel Immersion Gold (ENIG)
Dimensions: 3.5" (w) x 2" (h)
Package Contains
Quantity of 1 gold-plated reference card printed circuit board.
Proudly designed and manufactured in Silicon Valley, USA
Fremont, CA, United States of America
Ships from United States of America.
