Development Logs :

V2.3

• Changed indicator LEDs (BLE and USB)
• Added switching mode : BLE and USB in the same firmware

V2.2

• Changed the MCU to ESP32-S3
• Added Bluetooth function (separate firmware)
• Added battery charging circuit

V2.1

• Changed PCB Color to Blue (Blue PCB, ESP32-S2)

V1.1

• Change PCB name from McPlay to McKey-S2
• Change PCB color from green to blue
• Assembled Wifi chip antenna, so you can hack it and connect it to the network

V1.0

• Initial design

WHAT IS THIS?

McKey-S3 is a rework of original design of Makey Makey board published by Sparkfun. What are the differences?

• McKey-S3 uses ESP32-S3 as their main chip, instead using Atmega32u4
• McKey-S3 uses USB type C, instead mini-USB
• McKey-S3 support both Native USB and BLE connection

Using the McKey-S3 you can make anything into a key, just by connecting a few alligator clips. The McKey-S3 is an invention kit that tricks your computer into thinking that almost anything is a keyboard. This allows you to hook up all kinds of fun things as an input. Instead using ATMega32u4, we use ESP32-S3 to communicates with your computer using the Human Interface Device (HID) protocol which means that it can act like a keyboard or mouse

Connect the McKey-S3 to your computer using USB type C cable. Your computer will automatically detect it as ESP32-S3 HID. Now try touching the Earth bar while simultaneously touching the space circle pad. The LED above the SPACE key should light up, and a space command should be sent to your computer.

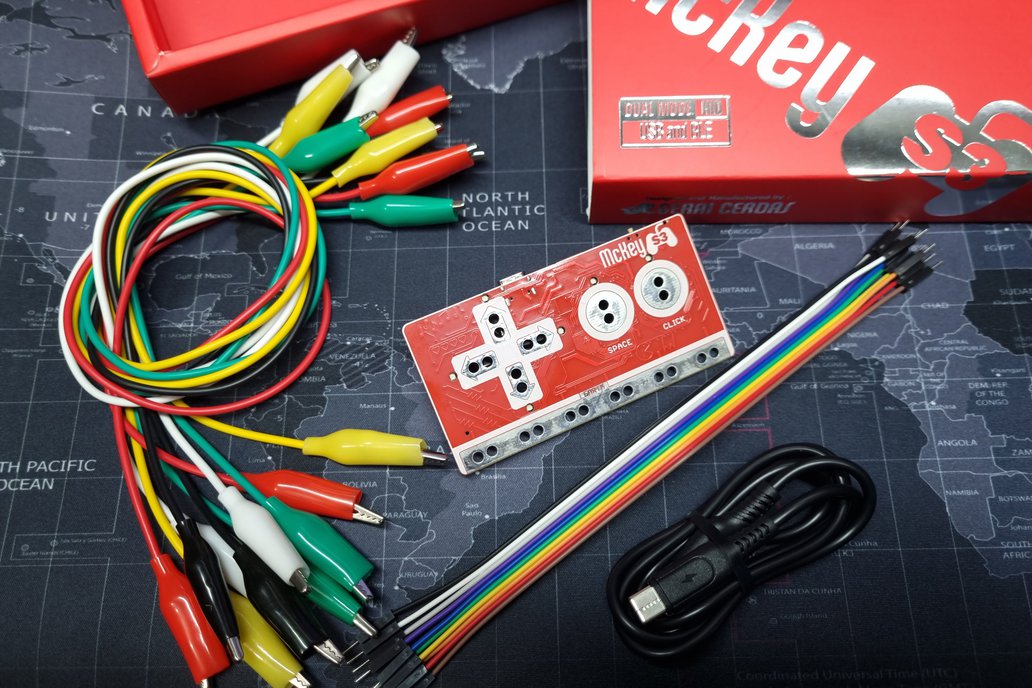

PACKAGE INCLUDED :

• 1x McKey-S3 v2.3
• 10x Aligator clip
• 10x jumper wires male/male
• 1x USB type C cable

Notes :

• Compatible with Scratch Programming
• Tested on Windows 10/11

Please visit our github documentation : https://github.com/geraicerdas/mckey-S3
