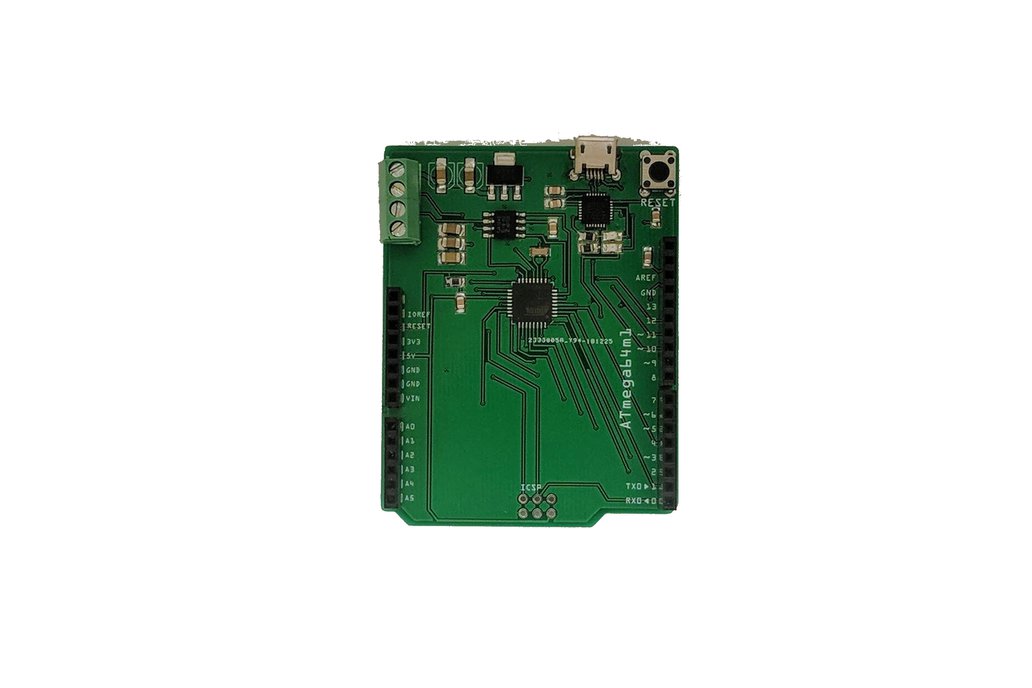

This is a board based on the Atmel Atmega64m1 with a arduino footprint. This integrates both a microcontroller with native canbus support with the ability to use arduino footprint for use with other prototyping boards. Pared together with a TJA1040, allows a direct canbus connection through screw terminal connectors and the ability to run the TJA1040 in normal operational mode or Standby mode.

Key Features:

• Raw built in regulator. Short circuit protected, Reverse polarity protected. AEC-Q100 Qualified.
• Compatible with Arduino or “compatible” pinout arrangement products.
• Easy to connect side pinouts 12v, CanH, CanL, Ground with screw terminals.
• 16Mhz resonator.
• Sleep/ StandBy pin for low power mode, (D14)
• Ultra LOW power consumption (low quiescent current) when in standby.

ATmega64m1 Specs:

• Program Memory Type: Flash
• Program Memory Size (KB): 64
• CPU Speed (MIPS/DMIPS): 16
• SRAM Bytes: 4,096
• Data EEPROM/HEF (bytes): 2048
• Digital Communication Peripherals: 1-UART, 1-SPI,
• Capture/Compare/PWM Peripherals: 1 Input Capture, 1 CCP, 14PWM
• Timers: 1 x 8-bit, 1 x 16-bit
• Number of Comparators: 4
• Number of CAN Modules: 1 CAN
• Temperature Range (C): -40 to 125
• Operating Voltage Range (V): 5.0 - 5.5

USB to serial driver
