1268 MHz Bandpass Filter with 35 MHz Bandwidth

PRODUCT OVERVIEW

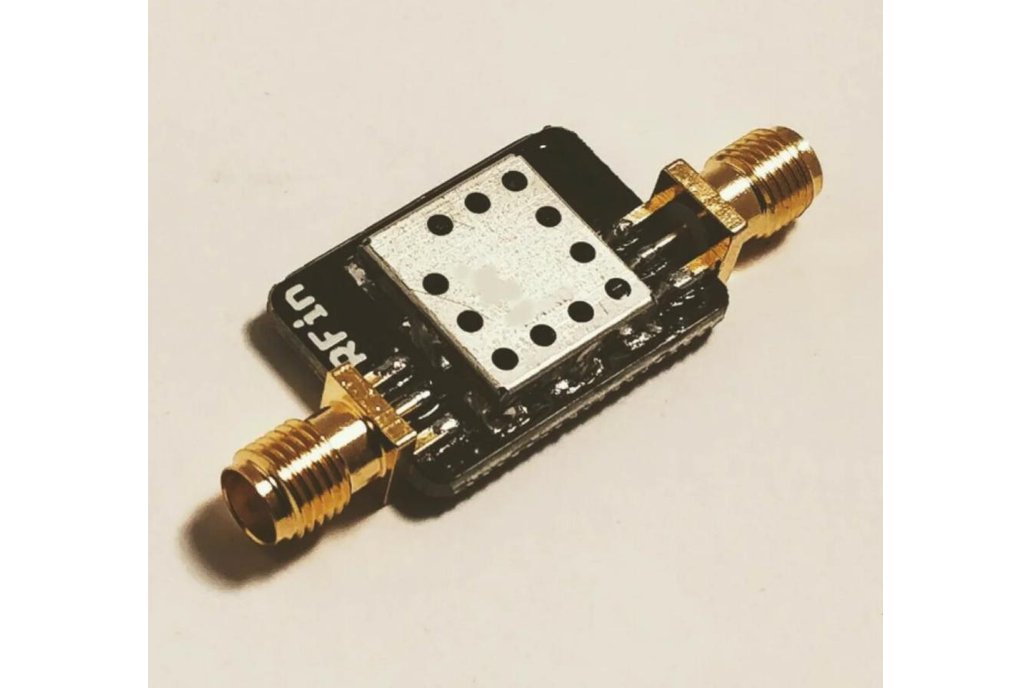

This is a small, cost-effective band pass filter centered at 1268 MHz with a typical insertion loss of 2 dB in the pass band. This filter has excellent rejection specifications. Rejection at 800 MHz for instance, is greater than 30 dB. The filter also provides power handling of up to a maximum +10 dBm and has an operating temperature range of -40C to +85C.

APPLICATIONS

• Amateur radio

• Rejection of strong signals in Cellular, LTE, UHF and 915 MHz ISM bands

• Filtering in Software-defined radio receivers and transmitters such as HackRF, RTL-SDR, USRP, etc.

• In the Lab or out in the Field

SPECIFICATIONS

Passband

1268 +/- 15 MHz

Frequency --- Minimum Attenuation

800 MHz --- 30 dB

1400 MHz --- 40 dB

3000 MHz --- 30 dB

NOTE

The filter uses SMA-F PCB edge mount connectors
