PRODUCT OVERVIEW

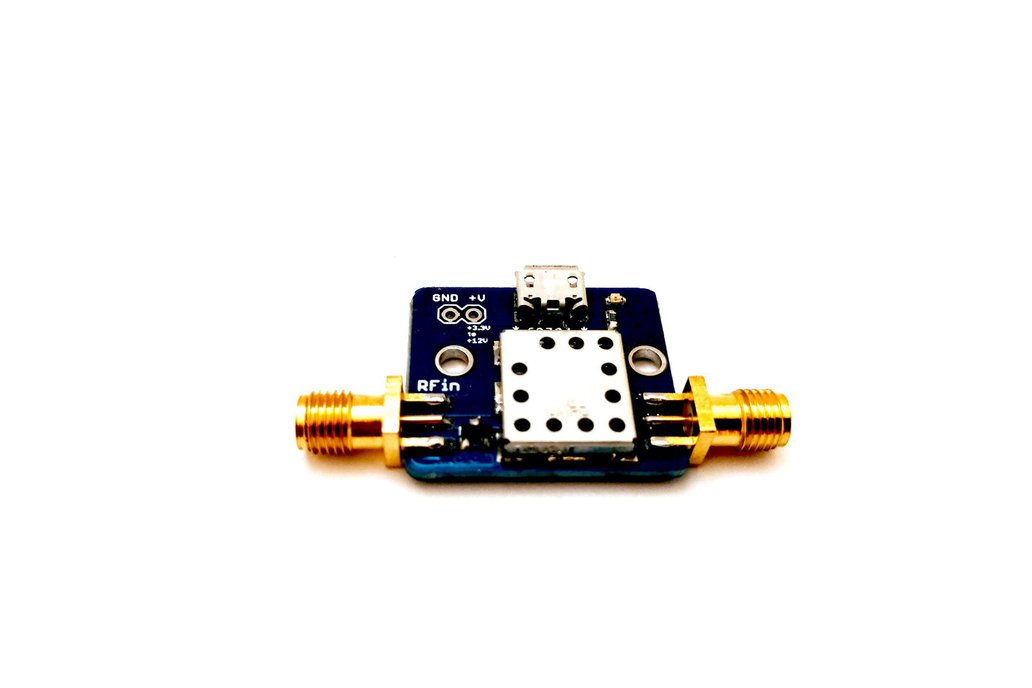

This is a small, Filtered Low Noise Amplifier centered at 869 MHz with a typical gain of 15 dB in the 4 MHz pass band and Noise Figure of less than 1 dB. This product has excellent out-of-band rejection specifications, provides power handling of up to a maximum -15 dBm and has an operating temperature range of -40C to +85C. The product includes an ESD diode at the front-end to prevent damage.

If you would like twice the amount of gain than that provided by this device then please consider the Filtered Dual LNA.

APPLICATIONS

868 and 869 MHz signal reception in a weak signal environment Rejection of strong signals in Cellular, LTE, UHF and 915 MHz, 2.4 GHz ISM bands

SPECIFICATIONS NOTE: This is not a bi-directional amplifier. Here is an amplifier for EU868 Helium miners

Frequency ------ Gain

867-871 MHz ------ 15 dB

50 - 850 MHz ------ < -20 dB

900 - 2000 MHz ------ < -20 dB

Maximum RF Input Power

-5 dBm
