DAB Notch Filter

Digital Audio Broadcast DAB Notch Filter 170 MHz to 240 MHz

Designed by GPIO Labs in Canada

This seller is taking a break until Feb. 8, 2025. Sign up below to get an email when they're back!

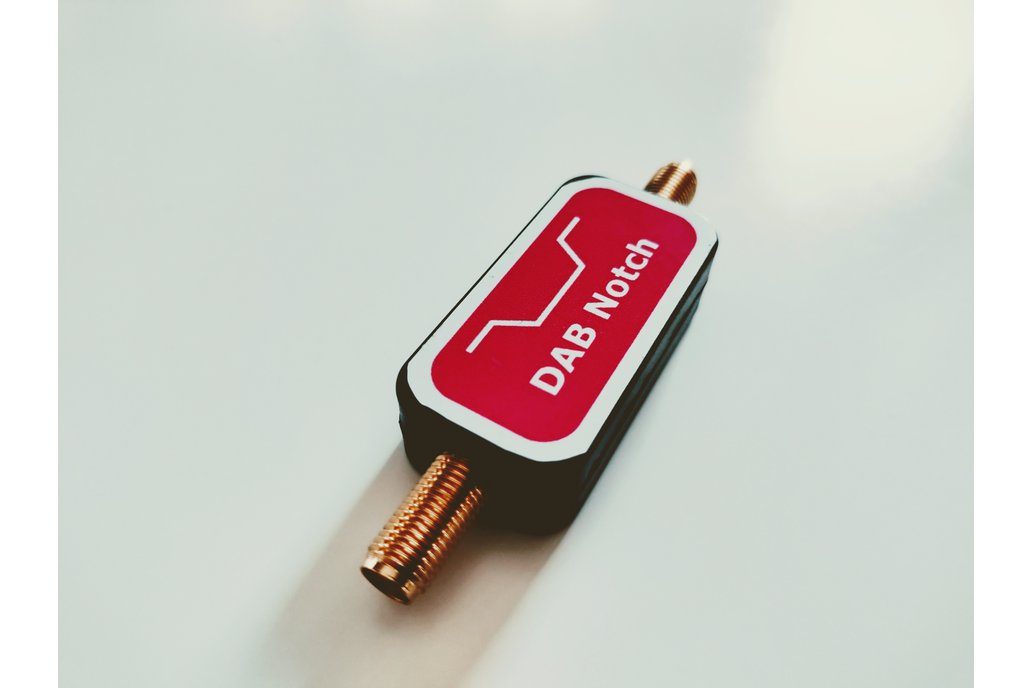

DAB Notch Filter 1

DAB Notch Filter 2

DAB Notch Filter 3

DAB Notch Filter 4





$63.00

On A Break

Sign up and we'll send a reminder when the seller returns!

Digital Audio Broadcast DAB Notch Filter 170 MHz to 240 MHz

PRODUCT DESCRIPTION Digital Audio Broadcast notch filters are used to reject strong DAB signals. A good DAB Notch filter will reject DAB signals and have low insertion loss for signals outside the ba…

Read More…

PRODUCT DESCRIPTION

Digital Audio Broadcast notch filters are used to reject strong DAB signals. A good DAB Notch filter will reject DAB signals and have low insertion loss for signals outside the band.

DAB signals can saturate a receiver very easily. If a receiver is saturated it will not be able to pick up signals in other bands for which it was designed. A DAB notch filter can prevent receiver saturation.

This is a 7th order Filter with excellent rejection in the 170 MHz to 240 MHz band in a sturdy plastic enclosure. The filter works up to 3 GHz with minimal out-of-band insertion loss.

SPECIFICATIONS

SPECIFICATIONS

Frequency (MHz)	Typical Attenuation (dB)
130	1
140	2
150	2.7
160	5
170	19
174	35
180	60
185	75
190	75
195	75
200	70
205	70
210	70
215	60
220	45
225	30
230	20
235	8
240	5
250	3
270	1.6

Insertion loss from 300 MHz to 3 GHz < 1.5 dB

NOTES

The filter uses SMA-F connectors. The Maximum RF input power for this filter is +30 dBm or 1 Watt.
