PRODUCT OVERVIEW

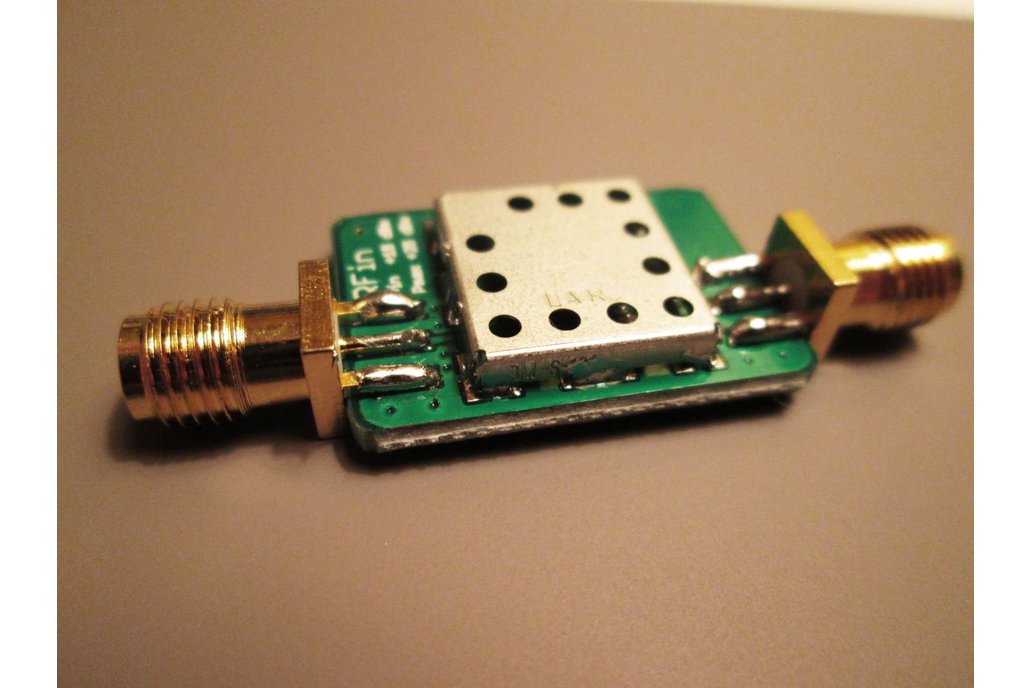

This is a passive frequency doubler that provides excellent harmonic suppression. The doubler can be used in a number of different applications such as signal generation, test equipment, etc. The product is designed to operate over an input frequency range of 2 to 4 GHz although it can be used from 1 to 5 GHz with some degradation of performance.

EXAMPLE APPLICATION

Many signal generators operate only to 3 GHz or 4 GHz. This product allows you to cost-effectively double the range of your signal generator and have it operate up to 8 GHz.

SPECIFICATIONS

Input frequency range........................ 2 to 4 GHz

Output frequency range...................... 4 to 8 GHz

Input power................................. +10 to +15 dBm

Typical conversion loss...................... 13 dB

F0 Isolation................................. 33 dB

3F0 Isolation................................ 40 dB

4F0 Isolation................................ 40 dB
