GPS L2 Bandpass Filter Fc 1227.6 MHz

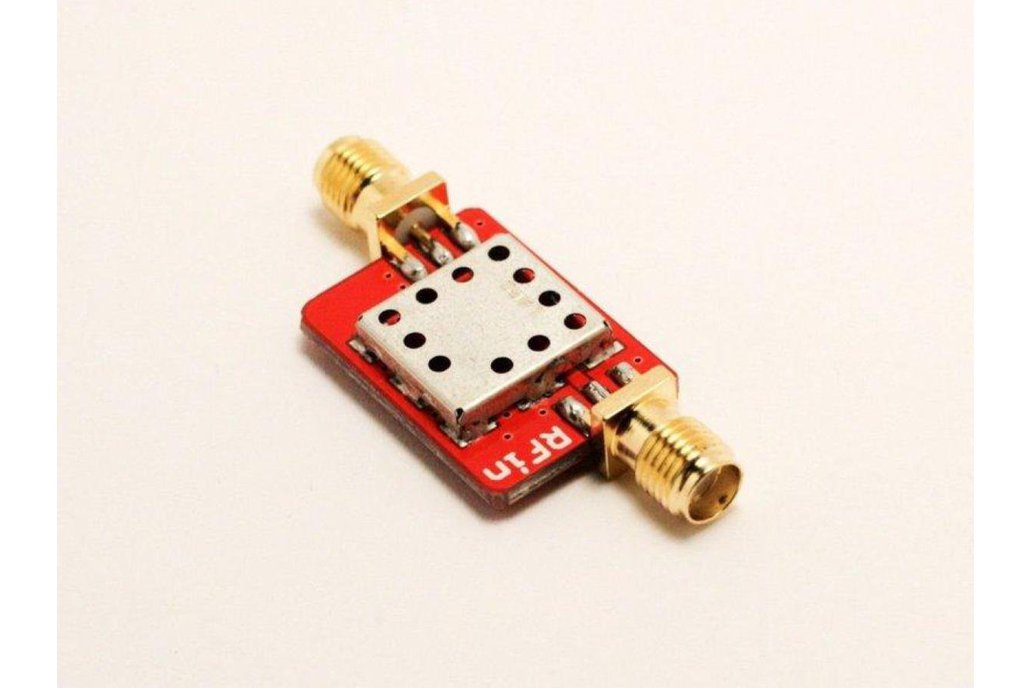

1227.6 MHz GPS L2 Bandpass Filter

Designed by GPIO Labs in Canada

GPS L2 Bandpass Filter Fc 1227.6 MHz 1

GPS L2 Bandpass Filter Fc 1227.6 MHz 2

GPS L2 Bandpass Filter Fc 1227.6 MHz 3

GPS L2 Bandpass Filter Fc 1227.6 MHz 4

2022-04-20T16:35:58.533Z-GPS L2 Filter.jpg

2022-04-20T16:35:58.533Z-GPS L2 Filter(3).jpg

2022-04-20T16:35:58.533Z-GPS L2 Filter(2).jpg

2022-04-20T16:35:58.533Z-GPS L2 Filter(1).jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

1227.6 MHz GPS L2 Bandpass Filter

PRODUCT OVERVIEW This is a small, cost-effective band pass filter that will pass GPS L2 1227.6 MHz signals with a typical insertion loss of less than 2 dB in the pass band. This filter has excellent …

Read More…

PRODUCT OVERVIEW

This is a small, cost-effective band pass filter that will pass GPS L2 1227.6 MHz signals with a typical insertion loss of less than 2 dB in the pass band. This filter has excellent rejection specifications. The filter also provides power handling of up to a maximum +20 dBm and has an operating temperature range of -40C to +85C.

APPLICATIONS

• GPS L2 signal reception

• Rejection of strong signals in Cellular, LTE, UHF and 915 MHz, 2.4 GHz ISM bands

• In the Lab or out in the Field

SPECIFICATIONS

Passband

1218 MHz - 1238 MHz

NOTES

The filter uses SMA-F connectors.

Maximum DC voltage on input or output: +3V

Maximum RF input signal Level: +20 dBm
