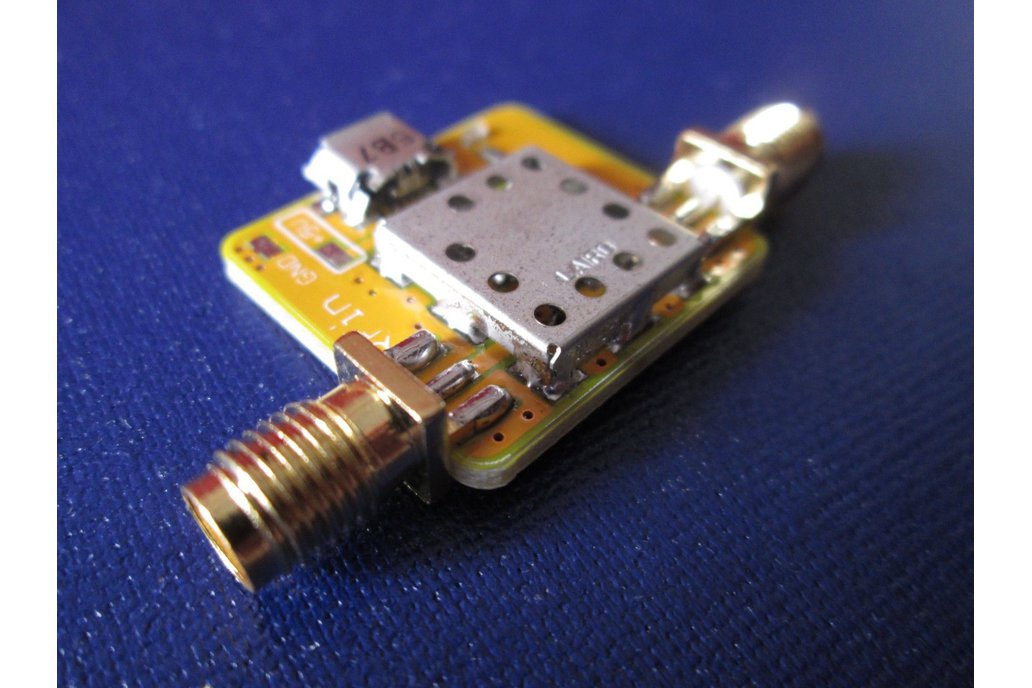

PRODUCT OVERVIEW

This amplifier provides an excellent combination of wideband gain, low noise figure and high IP3. The LNA can be used in a number of different receiver applications such as Ham Radio,TV reception, etc. The product is ideally suited as an IF amplifier where the USB power supply means you can power it off your laptop. Pads for a two-pin header are designed into the product so that you can power the board using a DC power supply.

FEATURES

• Wideband LNA operates from 50 MHz to 6 GHz

• 2.4 dB Noise Figure at 1 GHz

• LED power indicator

• SMA-F connectors

• USB powered (cable not included)

SPECIFICATIONS

Frequency ---- Gain

50 MHz ---- 17 dB

100 MHz ---- 17 dB

1 GHz ---- 16 dB

2 GHz ---- 14 dB

3 GHz ---- 12 dB

4 GHz ---- 9 dB

5 GHz ---- 8 dB

6 GHz ---- 7 dB

Output IP3 @ 1 GHz

+34 dBm

Maximum RF Input Power

+13 dBm
