Ultra Linear Low Noise Amplifier; 10-2000 MHz RF LNA; Gain>20dB; NF 0.5 dB
Designed by GPIO Labs in Canada
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
PRODUCT OVERVIEW This is an ultra linear low noise PGA-103 amplifier that provides exceptional gain and noise figure. The LNA can be used in a number of different receiver applications such as Ham …
Read More…PRODUCT OVERVIEW

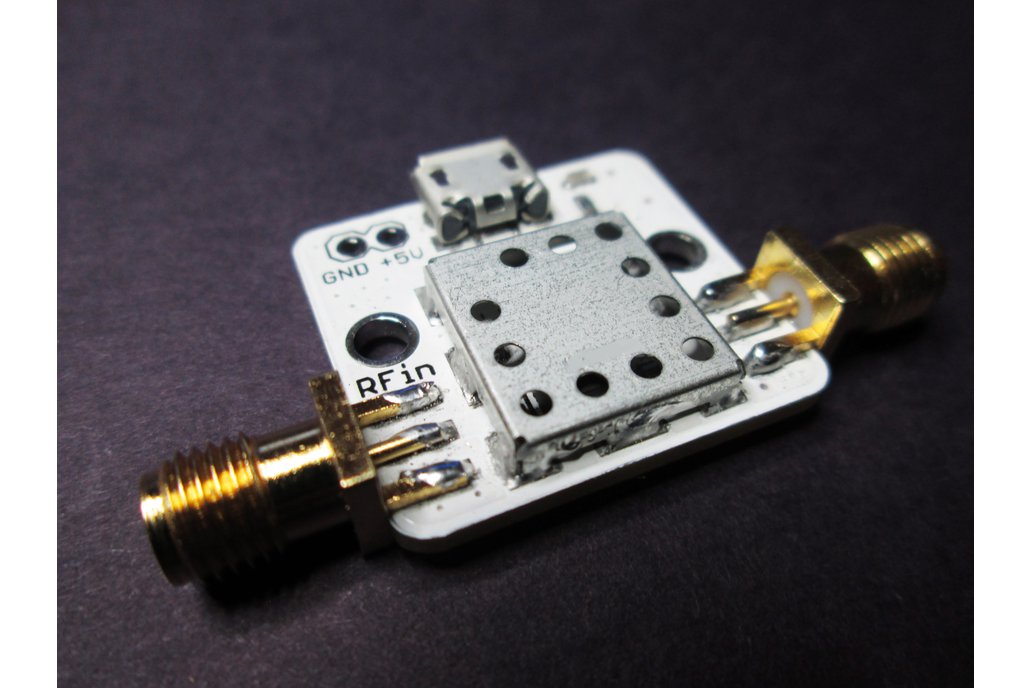

This is an ultra linear low noise PGA-103 amplifier that provides exceptional gain and noise figure. The LNA can be used in a number of different receiver applications such as Ham Radio, Software radio, TV reception, etc. The product is ideally suited as a pre-amplifier for software radio products such as RTL-SDR, HackRF, USRP, etc. where the USB power supply means you can power it off your laptop. The noise figure of this LNA is only 0.5 dB at 400 MHz.
FEATURES
• Wideband LNA operates from 10 MHz to 3 GHz
• Suitable for use with software radio receivers such as HackRF, BladeRF, RTL-SDR, USRPx, etc.
• 0.5 dB Noise Figure at 400 MHz
• LED power indicator
• SMA-F connectors
• USB powered (cable not included)
SPECIFICATIONS
Frequency ..... Gain
10 MHz ..... 22 dB
50 MHz ..... 25 dB
100 MHz ..... 25 dB
500 MHz ..... 23 dB
1 GHz ..... 15 dB
2 GHz ..... 10 dB
3 GHz ..... 5 dB
Output IP3 @ 1 GHz
+42 dBm
Maximum RF Input Power
+20 dBm
