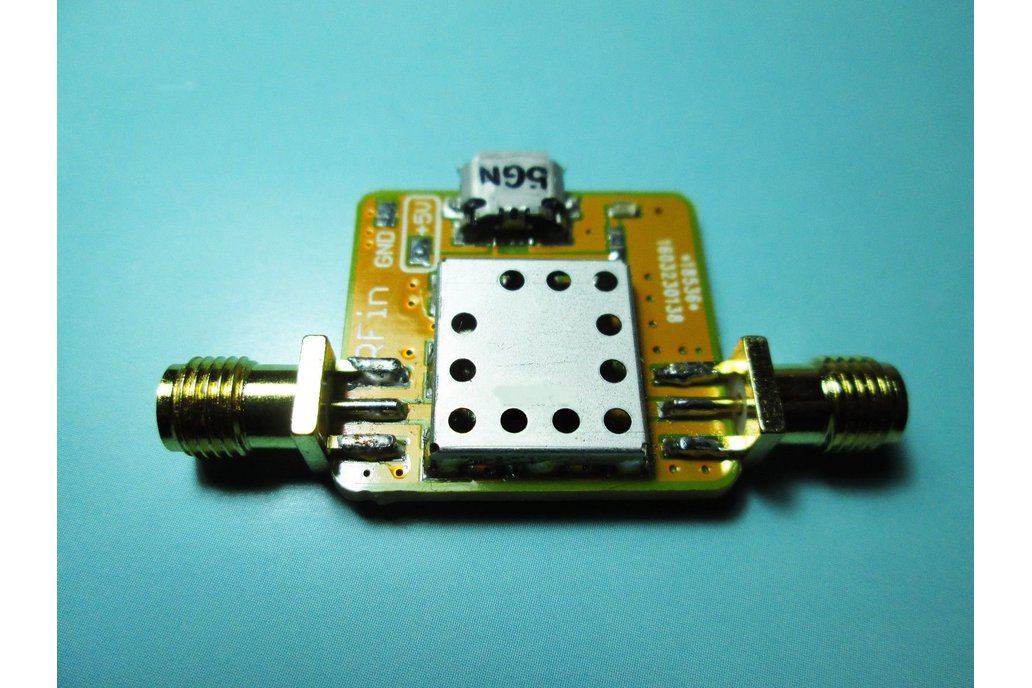

PRODUCT OVERVIEW This is an low noise RF amplifier that provides excellent gain, noise figure and dynamic range. The gain at 800 MHz is 15 dB while the output IP3 is +40 dBm. The LNA can be used in a number of different receiver applications such as Ham Radio, Software radio, TV reception, etc. The product is ideally suited as a pre-amplifier for software radio products such as RTL-SDR, HackRF, USRP, etc., where the USB power supply means you can power it off your laptop.

FEATURES • Wideband LNA with 17 dB Maximum Gain between 50 MHz and 6 GHz

• Ultra high dynamic range +40 dBm OIP3 at 800 MHz

• Suitable for use with software radio receivers such as HackRF, BladeRF, RTL-SDR, USRP, etc.

• LED power indicator

• SMA-F connectors

• USB powered (cable not included)

• Pads for two-pin power header

SPECIFICATIONS

Frequency --------- Gain

50 MHz --------- 17 dB

1 GHz --------- 15 dB

2 GHz --------- 13 dB

3 GHz --------- 10 dB

4 GHz --------- 9 dB

5 GHz --------- 9 dB

6 GHz --------- 6 dB

Output IP3 @ 800 MHz

+40 dBm

Maximum RF Input Power

+24 dBm
