Wideband Ultra Low Noise Amplifier (LNA) 10 MHz to 4000 MHz
Designed by GPIO Labs in CanadaThis product is no longer available for sale.
The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.
$63.00
Free Shipping!
$60.00
Free Shipping!
$30.00
Free Shipping!
$81.00
Free Shipping!

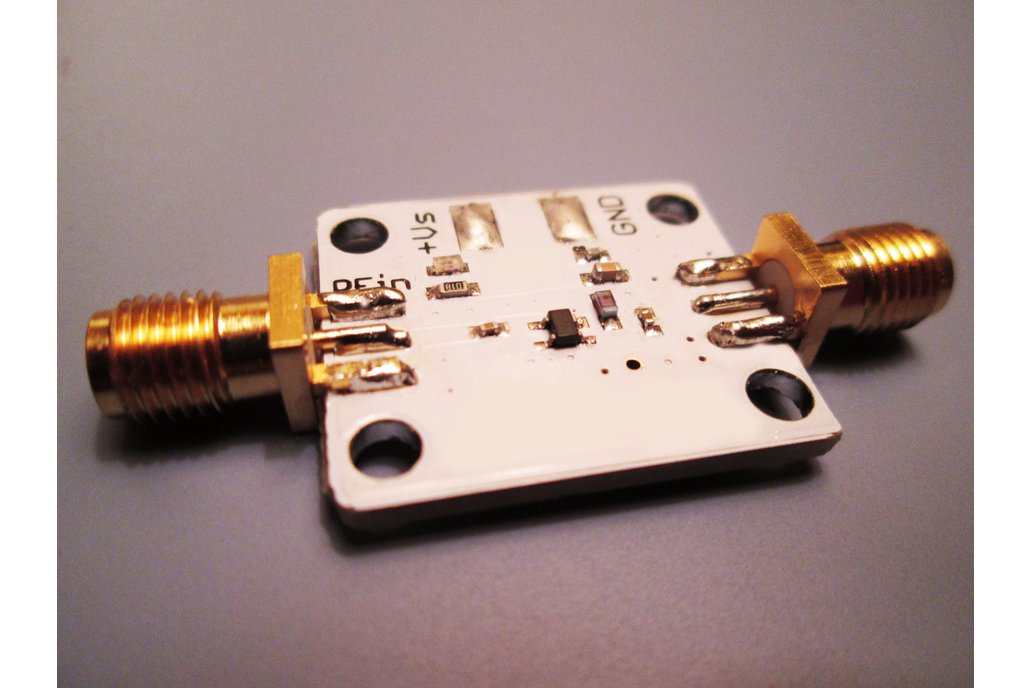

PRODUCT OVERVIEW This is an ultra low noise amplifier that provides excellent gain and noise figure. The product is ideally suited as a pre-amplifier for lab applications. The noise figure of this LN…
Read More…PRODUCT OVERVIEW
This is an ultra low noise amplifier that provides excellent gain and noise figure. The product is ideally suited as a pre-amplifier for lab applications. The noise figure of this LNA is only 0.65 dB at 100 MHz.
FEATURES
• Wideband LNA operates from 10 MHz to 4 GHz
• 0.65 dB Noise Figure at 100 MHz
• LED power indicator
• SMA-F connectors
• +3V to +5V DC power required (+5.5V Absolute Max)
SPECIFICATIONS
Frequency Gain
10 MHz --- 18 dB
100 MHz --- 23 dB
1 GHz --- 18 dB
2 GHz --- 12 dB
3 GHz --- 9 dB
4 GHz --- 6 dB
Output IP3
+32 dBm
Maximum RF Input Power
+20 dBm
Maximum Device Voltage
+5.5V
