What is it?

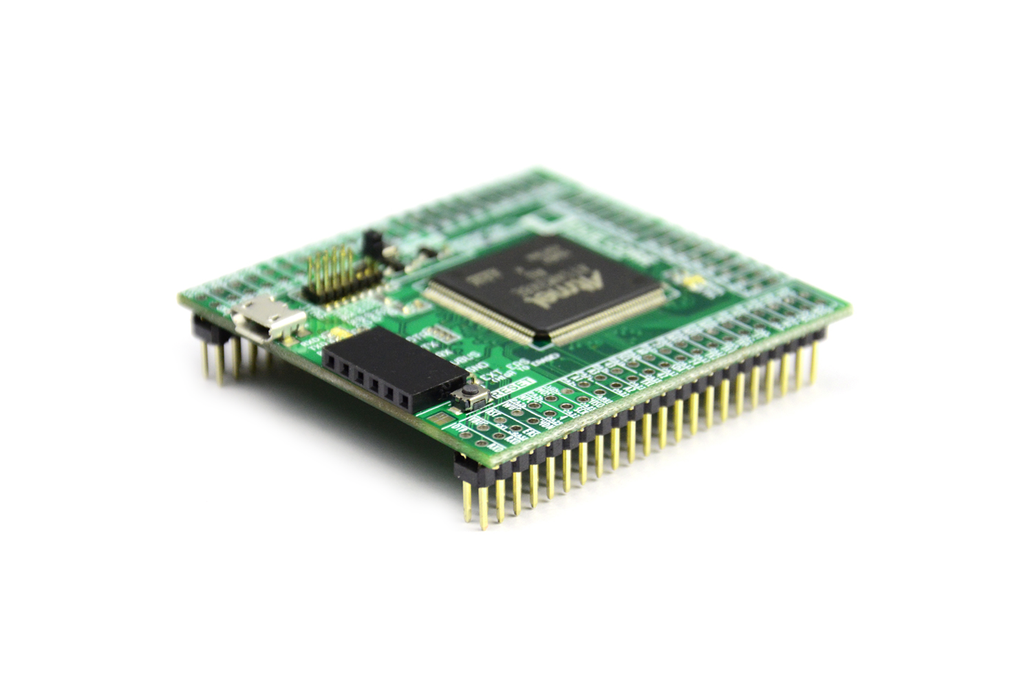

Just another Arduino Compatible Board but this time its a DUE-CORE.

DUE-CORE is a compact version of Arduino DUE, It integrates all peripherals required for MCU & all GPIO are connected to the 2.54mm connectors for users.

What makes it special?

As a standard MCU core board, apart from main the features with DUE also has the following features:

• Compact size: All components are put on a 54 x 58mm 4-Layers PCB.

• All I/O are connected to 116pin 2.54 standard connector.

• User can integrate the Due Core to any application even the size is very compact.

• Easy to use: All IO are connected to 116 pin (2.54 standard connector).

• Only a 5V power to the board to make it work.

• Stable design: adopt high-cost 4-layer PCB layout , two 5V to 3.3V LDO onboard , one is for digital part and one is for analog part.

• Separate AVCC and AGND, to ensure the best analog performance.

• Easy to setup the development environment: uploading sketch through standard 6pin UART interface, standard Micro usb connector, full use of existing resources.

• User-friendly design: Rich LED status indication, two onboard buttons, one is for MCU reset , and other one is for Flash Erase.

• Unique jumper erase protection against the flash erased by mistake operation.

• Rich resource : All IO are connected out for the user.

• Onboard I2C EEPROM designed to compensate for the shortcomings of SAM3X8E no built-in EEPROM.

DUE-Core Specifications

• Microcontroller: AT91SAM3X8E LQFP-144
• Operation Voltage: 3.3V
• Input voltage: 5V
• Total connector pins: 44 + 44 + 28 = 116Pins
• Flash: 2 x 256 Kbytes
• SRAM: 64 + 32 Kbytes
• Clock Speed: 84 MHz- Number of PIOs:103
• NAND Flash Controller (NFC): Yes
• SHDN Pin: Yes
• EMAC: MII/RMII
• External Bus Interface: 16-bit data / 8 chip selects / 23-bit address
• Central DMA: 6
• 12-bit ADC: 16 ch
• 12-bit DAC: 2 ch
• 32-bit Timer: 9 ch
• PDC Channels: 17
• USART/UART: 3 / 2 (USART3 in UART mode (RXD3 and TXD3 available))
• SPI: 1 SPI controller,4 chip selects +3 USART with SPI mode
• HSMCI: 1 slot, 8 bit
• Board dimension: 54 x 58mm

Warning:

Unlike other Arduino boards, the Arduino DUE-Core board runs at 3.3V. The maximum voltage that the I / O pins can tolerate is 3.3V. Providing higher voltages, like 5V to an I / O pin could damage the board.
