What is it?

This shield is to be combined with Olimex ESP32 POE board (need to be bought separately) to get French energy meter called Teleinfo (AKA TIC)

v1.0

• First fully working prototype

Why did you make it?

Following lot of users demands that wanted a complete working board after reading Teleinfo article on my blog.

This one is mainly needed when your smartmeter his far from house and WiFi signal too weak and/or if you don't have power near your smartmeter to power Denky, WeMos Teleinfo or any other type of board. Having Ethernet near smart mater and you done with POE, Olimex board and this Shield.

What makes it special?

It's tiny, simple and so powerfull, works with standard and historique mode on Linky (and historique on old smart meter)

What's included ?

One complete and assembled board with Olimex UEXT and teleinfo plug connector:

• Teleinfo Reader interface
• Blue LED to see if Teleinfo signal is received
• Trimmer to allow TIC sensitivity change without soldering resistors
• RGB User Led

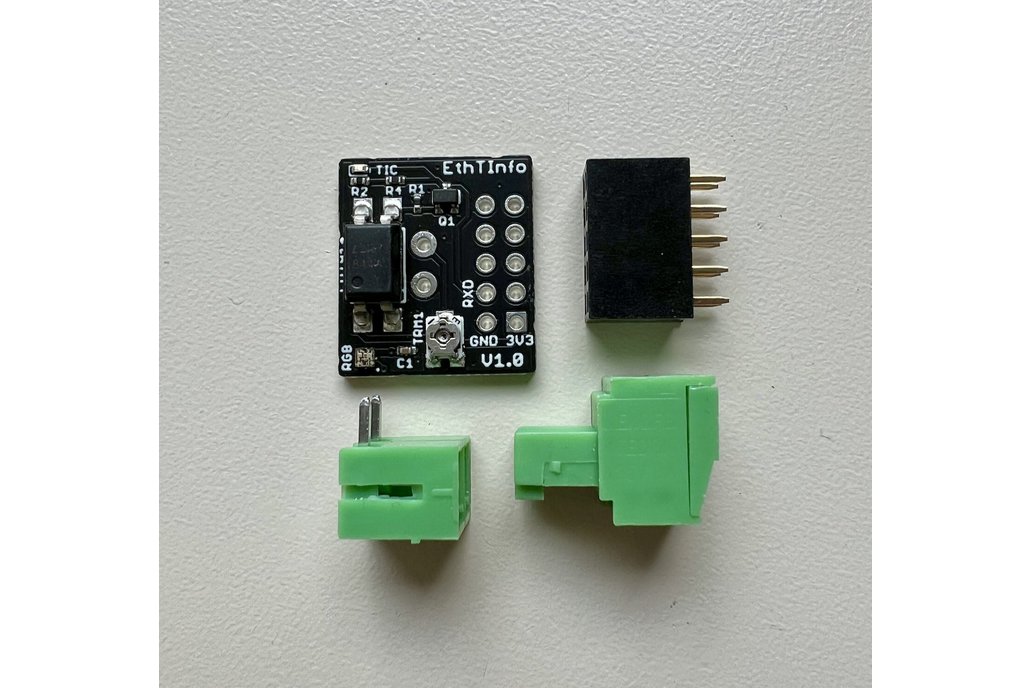

Olimex UEXT and TIC (Teleinfo) plug connectors are not soldered you can select option to have them soldered when buying with or without TIC connector.

Olimex ESP32 POE Board is NOT INCLUDED you need to buy it separately.

Is is compatible with new Linky metering system (Standard and Historique)

Firmware

Olimex ESP32 POE board may be flashed with Tasmota Teleinfo firmware working as an WiFi Access point for easy configuration.

Support Tasmota AutoConfig feature

Support and documentation

• Dedicated github repo
• Tasmota firmware Teleinfo documentation

If you have any question or need support, please go to the dedicated section on the community forum
