DCZia defcon 26 Mechanical Keyboard Badge

Name: DCZia defcon 26 Mechanical Keyboard Badge
SKU: 14541
Price: 85.00 USD
Availability: Discontinued
Rating: 5.00 (2 reviews)

(2 Reviews)

The DCZia defcon26 badge - 4x4 grid of CherryMX (Gateron) Blue switches with RGB backlight on an ESP32

Designed by snurkle engineering in United States of America

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

Visit Store

More From snurkle engineering:

DCZia Laser Theremin Blank PCB

snurkle engineering

$5.00

Bee Merry Christmas Ornament

snurkle engineering

$10.00

PUG SAO badgelife addon

snurkle engineering

$2.50

DCZia Electric Sampler

snurkle engineering

$110.00

More "Hackaday" Related Products

Sale

Meshtastic Mesh Device Station G2

B&Q Consulting Shop

$98.10 $109.00

USB-C for PS4 controller

Marius Heier

$10.00

Louder ESP32

Sonocotta

$24.00

PDP-11 replica kit: the PiDP-11

Obsolescence Guaranteed

$297.00

DCZia defcon 26 Mechanical Keyboard Badge 1

DCZia defcon 26 Mechanical Keyboard Badge 2

DCZia defcon 26 Mechanical Keyboard Badge 3

DCZia defcon 26 Mechanical Keyboard Badge 4

DCZia defcon 26 Mechanical Keyboard Badge 5

DCZia defcon 26 Mechanical Keyboard Badge 6

DCZia defcon 26 Mechanical Keyboard Badge 7

DCZia defcon 26 Mechanical Keyboard Badge 8

DCZia defcon 26 Mechanical Keyboard Badge 9

DCZia defcon 26 Mechanical Keyboard Badge 10

DCZia defcon 26 Mechanical Keyboard Badge 11












Hardware artistry and blobs of solder

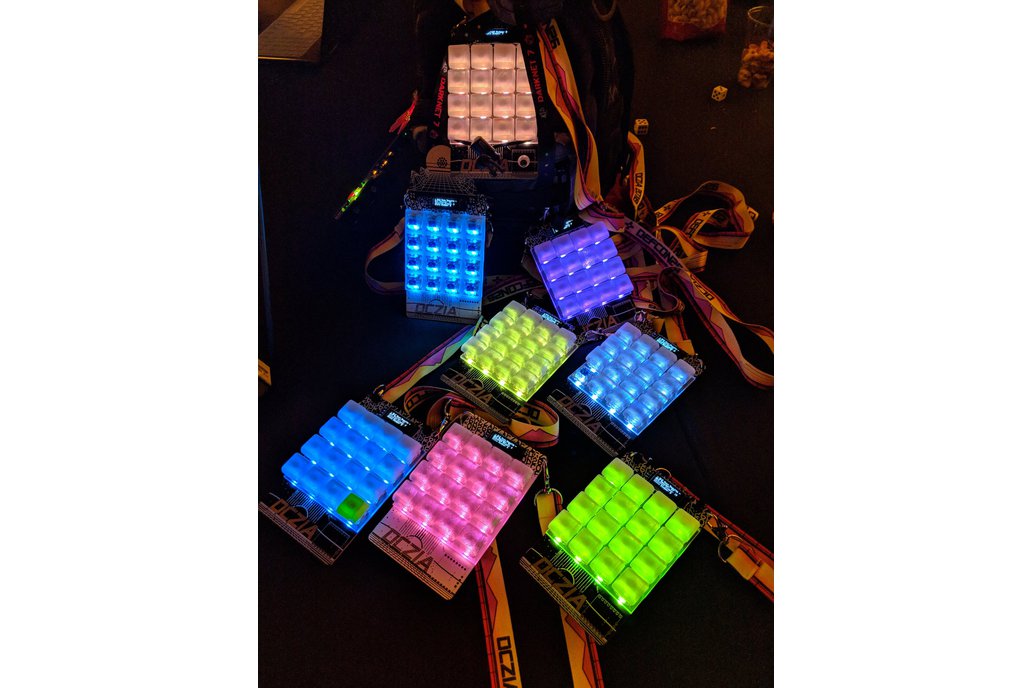

The DCZia defcon26 badge - 4x4 grid of CherryMX (Gateron) Blue switches with RGB backlight on an ESP32

Holiday sale! Help support DCZia's 2019 badge effort at DC27! Badges are 27% off and include a free SAO! CLICK CLACK CLICK This badge is about 100x120mm in size, and includes: Fancy artwork! A 4x4 …

Holiday sale!

Help support DCZia's 2019 badge effort at DC27! Badges are 27% off and include a free SAO!

CLICK CLACK CLICK

This badge is about 100x120mm in size, and includes:

Fancy artwork!
A 4x4 grid of clicky clicky Gateron Blues - CherryMX clones
Translucent key caps
RGB underlighting with sk6812s 'neopixel' LEDs
A 128x60 OLED screen
2 SAO connectors
1 Minibadge socket
Powered by a ESP32-WROOM32
USB interface for programming, compatible with Arduino for buttonless programming
A SD card socket
Powered by 3xAA batteries or via USB
Optional audio module header - detect noise! No code currently implemented for this, however.

The ESP32 has Bluetooth Low Energy (BLE) and Wifi for all your wireless needs. All source and design is fully open source and available via our github.

As delivered, the badge has a few modes of operation, for scanning for other BLE enabled badges, displaying color patterns, a pixel picker mode, and more. Development is active, and we plan to release some updates over time.

A future adapter that will plug into your minibadge socket will make this badge appear as a standard USB keyboard so you can use it with your computer. I'll announce the availability of this add-on once it is complete.

This badge by default is shipped as a kit. All the SMD work is complete, but it is up to you to complete the through hole assembly of:

Battery box
Switches
OLED display
Audio module (optional)
SAO and Minibadge sockets

It's pretty easy to assemble, but if you just want a complete badge, I've made an option available for you.

Review Breakdown

Average Ratings

Product: (5.00)

Documentation: (5.00)

Shipping: (5.00)

Communication: (5.00)

Garret | Dec. 18, 2018

Beautiful Badge

Very easy to assemble. I ended up switching out the switches I got with Hako Violets. They were a little snug but did snap into the carrier plate and matched the PCB footprints perfectly. Very solid PCB!

Robert | Oct. 10, 2018

Top 5 #badgelife 2018

Can't wait to get in and mess around with the firmware on this bad boy. Here's a thought -- I wonder, if you added a couple of small components, how hard it would be to give it audio OUTPUT capability and make it emulate, in a glorious RGB homage, an old-school BLUE BOX? If you run with this idea I get a free upgrade. ;-)
