Laser Theremin!

This is the DCZia badge from defcon 27. You 'play' it like a theremin, but instead of radio antennas, the badge uses time-of-flight laser ranging sensors to detect your hands. As you move your hands, you adjust pitch and volume, and with the rotary knob you can select the waveform to make some really wacky noises. The hardware and software are open source for you to hack on to your heart's content. Make it into something awesome and share the result with us!

This run of badges will be limited to a very small quantity since we will be hand assembling each board. If they sell out before you get one, be sure to jump on the waitlist to be notified for when we do another batch.

Parts!

• 64Mhz Arm CortexM4F with Bluetooth 5
• 5 Mechanical Clicky Low Profile Key Switches
• Rotary Encoder with Click Button
• OLED Display
• Onboard Speaker and Amplifier!
• SD Card Storage
• RGB Leds
• 2 SAO / "Shitty Add-On" Connectors

What you get

This badge is sold as a kit and only as a kit. But fear not - we designed it to be easy to assemble. All the surface mount stuff is already done, leaving just the through hole for you to complete. We even have an awesome build guide to help you along your way.

Please note badges will not ship until Dec 2nd

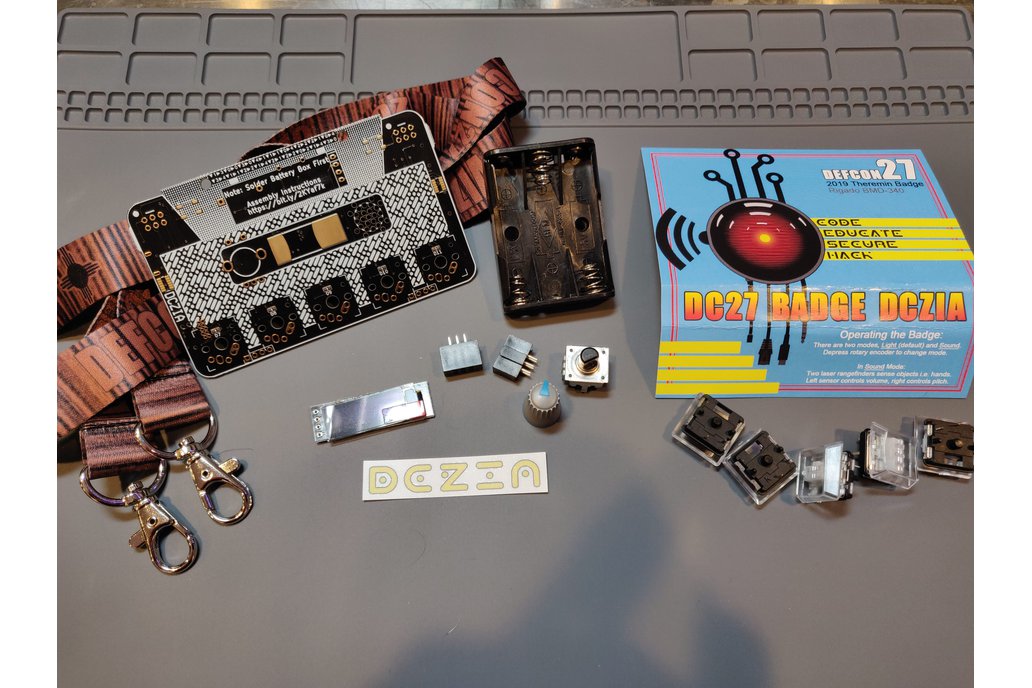

You'll get a bag of parts that contains:

• Populated theremin board, in black
• 5 clicky switches with key caps
• DCZIA sticker for the key caps
• Battery box
• Rotary encoder
• Knob for encoder
• Speaker
• Two SAO v1.69bis connectors
• OLED screen
• Lanyard
• Cool cassette box J-card insert
