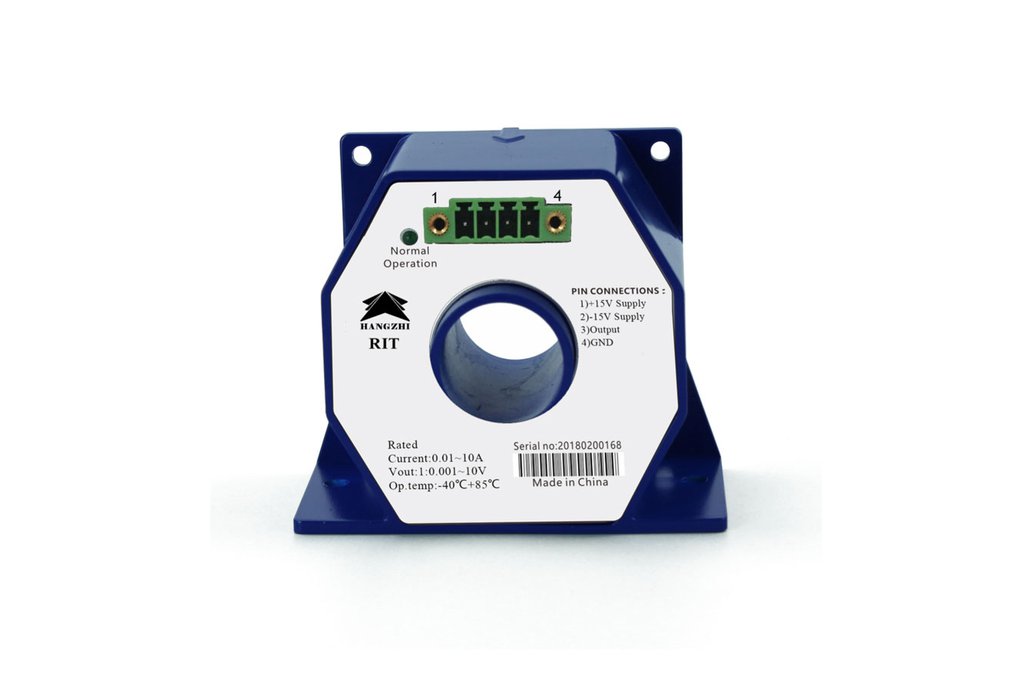

RIT001 Residual Current Sensor Transducer

Name: RIT001 Residual Current Sensor Transducer
SKU: 35359
Price: 233.00 USD
Availability: InStock

RIT001 Residual Current Sensor Transducer, accuracy 1%

Sold By Hangzhi Precision

RIT001 Residual Current Sensor Transducer 1

RIT001 Residual Current Sensor Transducer 2

RIT001 Residual Current Sensor Transducer 3




Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

RIT001 Residual Current Sensor Transducer, accuracy 1%

What is it? RIT001 Residual Current Sensor Transducer Why did you make it? measurement residual current What makes it special? RIT001 has a high gain and measurement accuracy in the full bandwidth ra…

What is it?

RIT001 Residual Current Sensor Transducer

Why did you make it?

measurement residual current

What makes it special?

RIT001 has a high gain and measurement accuracy in the full bandwidth range, due to the application of the multi-point zero-flux technology system and high-frequency ripple sensing channel on top of currently existing DC sensor technology.

Primary Nominal Current: DC0.01, Overload Capacity: 200% for 1 minute, Power Supply: DC14.2V to 15.8V, Output Voltage: ±1V, Accuracy: 1%, Linearity: 0.2%, Zero Offset Voltage: ±10mV, Dynamic Response Time: 2ms, Frequency bandwidth(-3dB): up to 100KHz, Insulation Voltage (Between primary and secondary): 5KV, Operation Temperature Range: -40 ~ 85℃.
