ESP32 KNX - Base / DevelopmentBoard

Name: ESP32 KNX - Base / DevelopmentBoard
SKU: 36172
Price: 40.00 USD
Availability: InStock

ESP32 to KNX Baseboard, Arduino compatible

Designed by LittleHelpers in Austria




Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

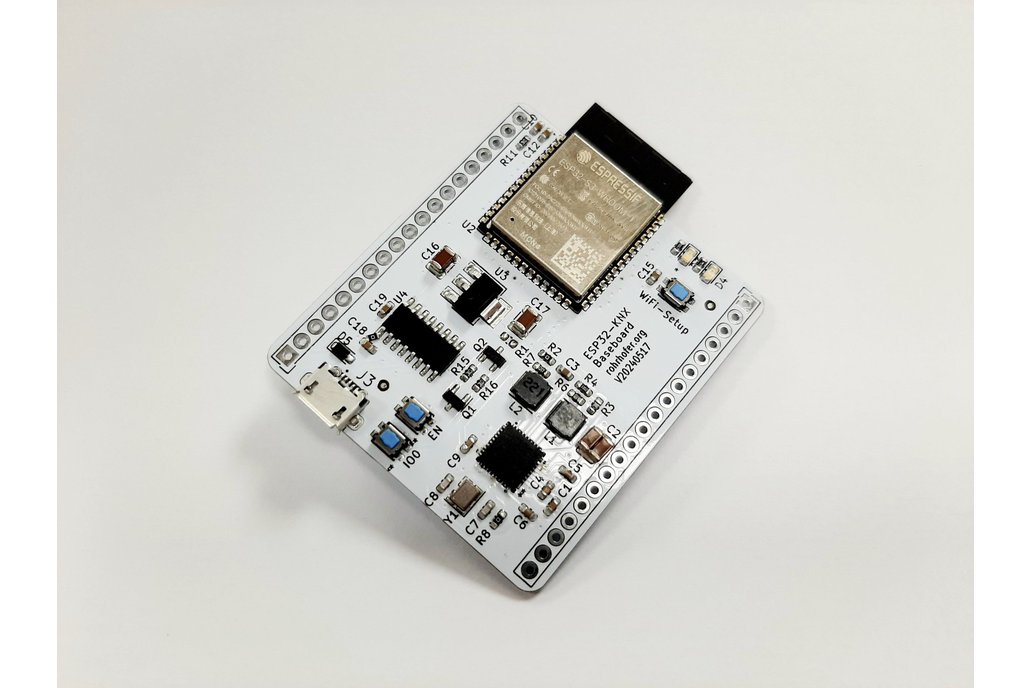

ESP32 to KNX Baseboard, Arduino compatible

What is it? This is an open-source development board for Esp32-Chip with an integrated KNX- Bus Coupling Unit and Serial to USB Chip. Why did you make it? Simply to save time from project start to a…

What is it?

This is an open-source development board for Esp32-Chip with an integrated KNX- Bus Coupling Unit and Serial to USB Chip.

Why did you make it?

Simply to save time from project start to a working prototype.

Characteristics

45x55mm
ESP32 S3 Wroom Module
Serial to USB Chip (CH340) onboard, Arduino compatible
KNX BCU - Bus coupling unit onboard (NCN5130)
2 LED's (green & red) and 1 Button onboard
Breakout of all other available pins of the ESP32 module
Arduino compatible (tested with https://github.com/thorsten-gehrig/KnxTpUart )

What makes it special?

This Boards saves a lot of time if you want to start a ESP32 KNX Project. No need for debuging the basic KNX functions. You can start directly with your application.
