Tiny QRP 1:9 Unun Kit

Name: Tiny QRP 1:9 Unun Kit
SKU: 29284
Price: 15.00 USD
Availability: InStock

A complete kit to make your 1:9 random wire UnUn for QRP, rated for 10 watts (option 15 watts is available)

Designed by HB9ZHK in Switzerland

2024-10-02T08:55:44.368Z-2023-02-05T18-57-49.986Z-Winder with Wire.jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

A complete kit to make your 1:9 random wire UnUn for QRP, rated for 10 watts (option 15 watts is available)

What is it? A kit based on a custom PCB board to build your QRP 1:9 UnUn. The kit contains all you need to build your own tiny random wire antenna (PCB, FT50-43 toroid, BNC connector and magnet wire …

What is it?

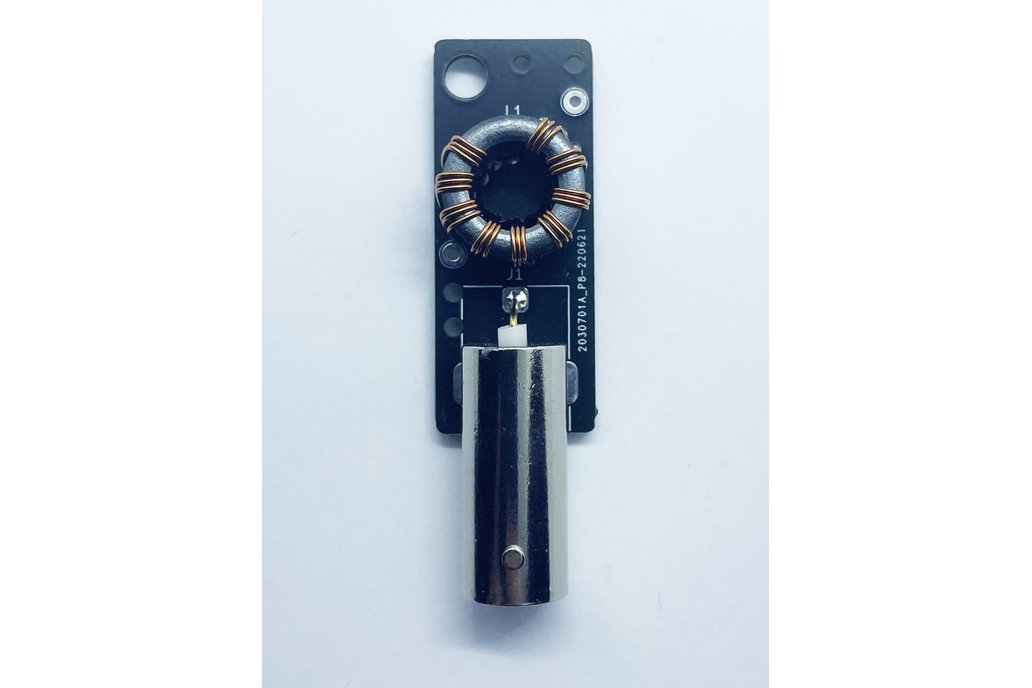

A kit based on a custom PCB board to build your QRP 1:9 UnUn. The kit contains all you need to build your own tiny random wire antenna (PCB, FT50-43 toroid, BNC connector and magnet wire for the toroid). Please note that you will need an antenna tuner to use the antenna on all bands.

This is a kit and needs assembly. You will need to wind the toroid with the magnet wire, solder the toroid and the BNC connector to the PCB board .

The kit contains: 1 PCB 1 female BNC connector 1 FT50-43 ferrite toroid (see also options) Enough magnet wire

The antenna wire mounting holes are suitable for wires up to 1.5mm diameter (with insulation). The holes can be extended with a driller for slightly thicker wires.

Why did you make it?

Working primarily QRP, often portable I wanted to have a minimal system as lightweight as possible. Often, antennas make up a considerable amount of space and weight of the overall system and I looked into ways to minimize this.
