PPPM - A Power Meter based on RP2040 and INA219 with OLED

V3 is out now! Get your PPPM now! What is it? The PPPM performs Voltage, Current and Power measurements in low voltage systems. With a max. input voltage of 26V and a max. current of 3.6A it is suita…

Read More…

V3 is out now! Get your PPPM now!

What is it?

The PPPM performs Voltage, Current and Power measurements in low voltage systems. With a max. input voltage of 26V and a max. current of 3.6A it is suitable for any 12V powered device.

You can use it in your caravan, camper, boat, yacht, lab and just about anywhere you want to monitor the voltage of your system and the current drawn by the devices.

A 0.1 Ohms shunt performs the measurements on the high side of the system.

With a bit of programming in micropython and soldering you can easily extend the functionalities and the max. current.

Why did you make it?

I needed a device to easily measure the power output of a power supply. Normally, I needed to take two measurements with my one multimeter.

What makes it special?

The small form factor of 30x76mm
Instant values on the OLED display
3 "pages" with big values
1 summary "page"
User button
2 user LED
2 headers for external acess to the pins (not all pins are acessable)
Robust terminal block for up to 2.5mm²
Button and LEDs user configurable (requires programming)
Completely open source

New in V3:

Corrected Silkscreen and minor fixes

New in V2:

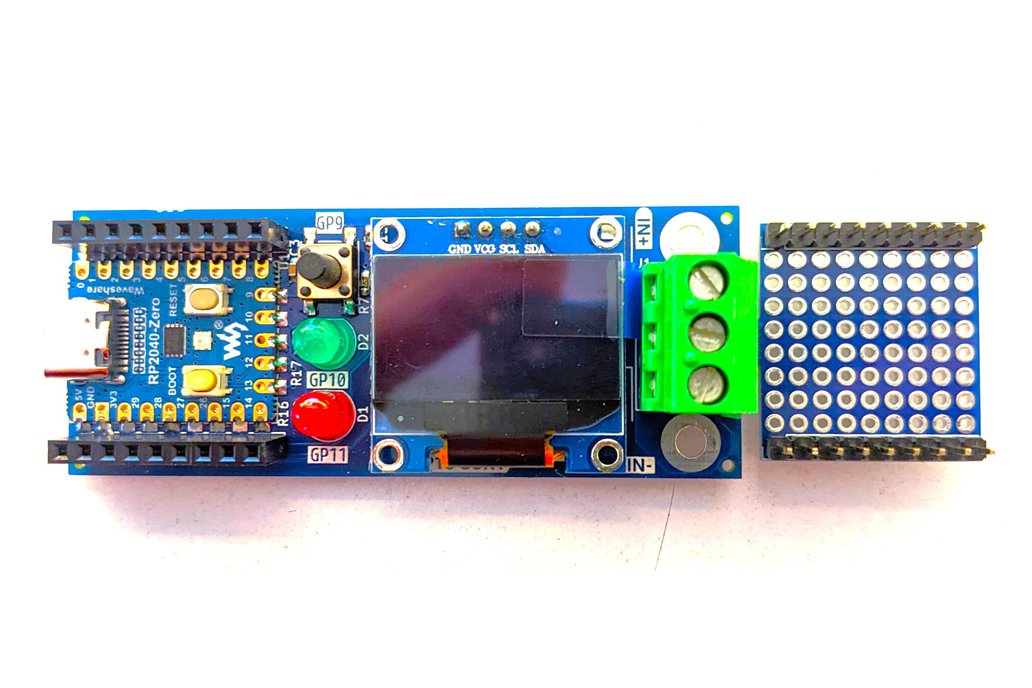

A breakout board for additional circuitry. Fits on the female headers.

The device comes with ready to use firmware. The button cycles through the pages. The green LED blinks.

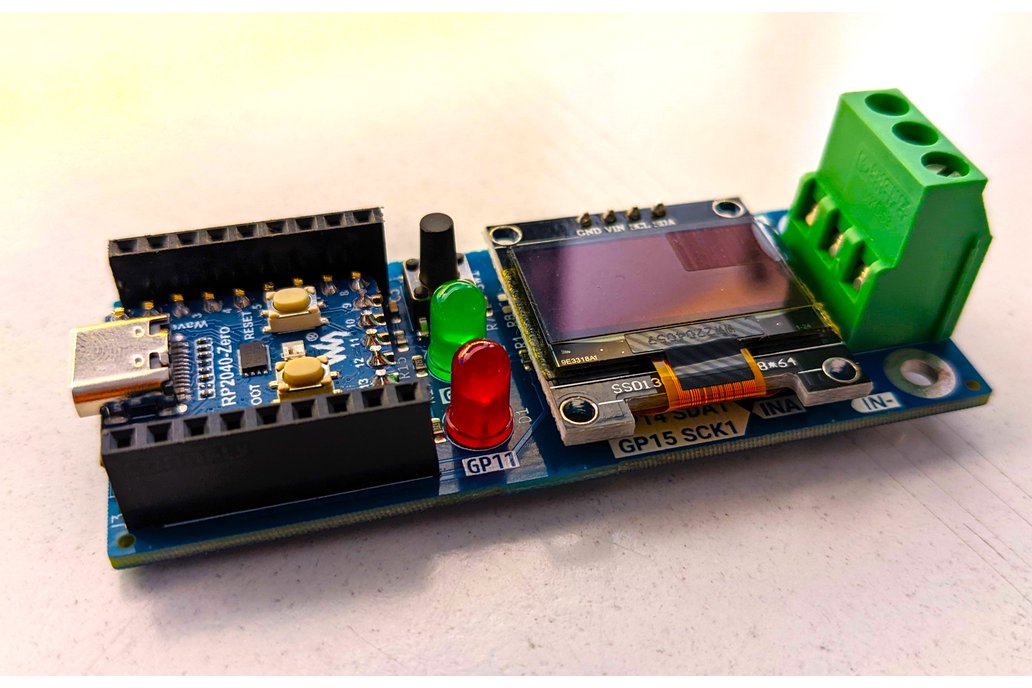

Photos from Version 1 only for reference!
