Hiwonder LX-16A Full Metal Gear Serial Bus Servo with Real-Time Feedback Function for RC Robot( Control Angle 240)

What is it?

Hiwonder LX-16A is a full metal gear serial bus servo with 17kg high torque. It can provide temperature, position feedback. LX-16A Bus Servo uses our private serial protocol so that it is necessary to use our TTL/USB debug board (compatible for Arduino) to control bus servo. Notes: The debug board required to purchase separately from ours. You only need one debug board no matter how many servos you control.

What makes it special?

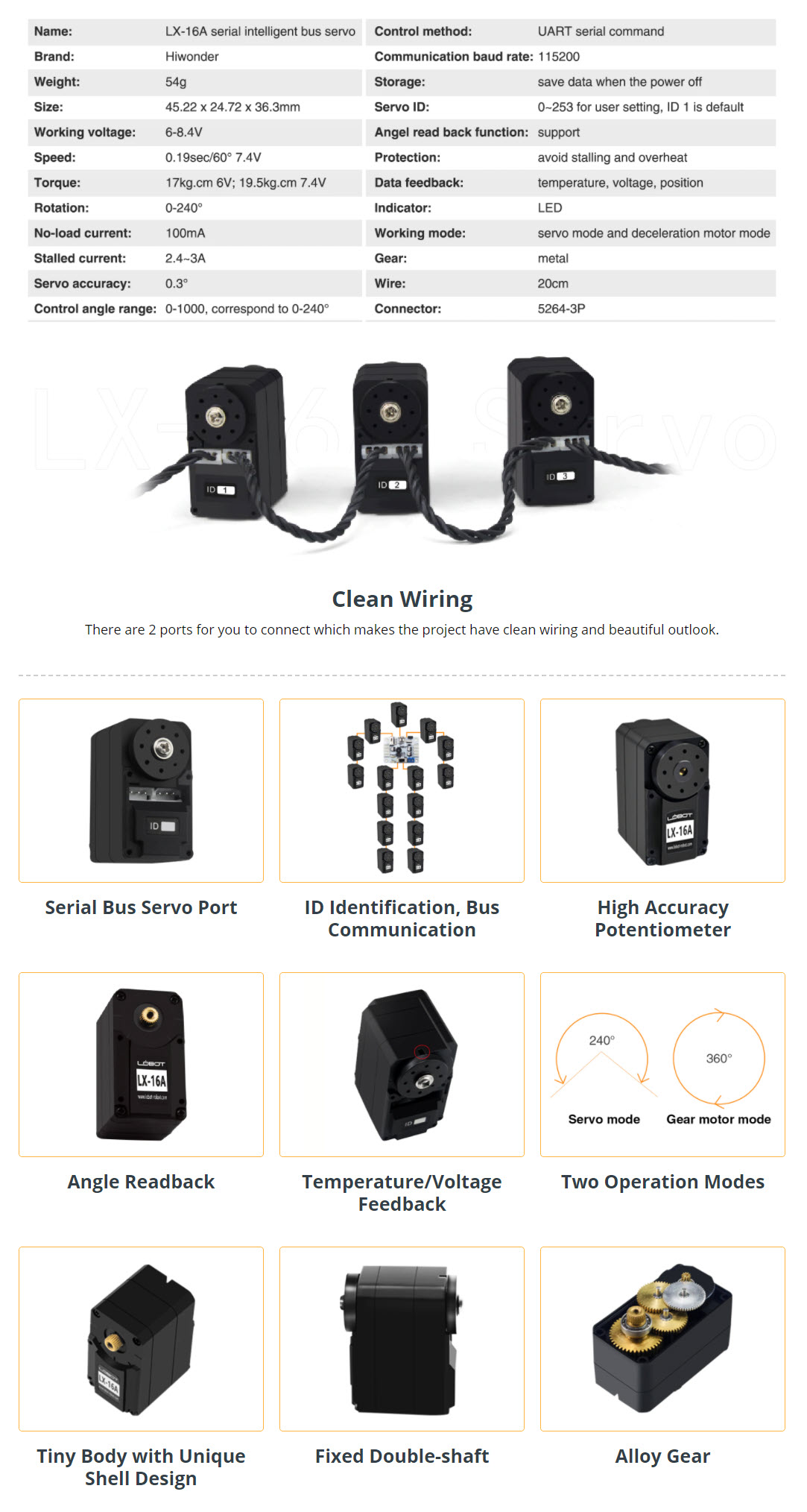

• 17kg large torque. 17 kg/cm (236 oz/in) @6V; 19.5 kg/cm (270 oz/in) @7.4V. We provide communication protocol and detailed video tutorials
• Real-time feedback function of position, temperature, voltage. The top of the servo has a warning The indicator will blink if overcurrent, over-temperature or locked-rotor occurs
• Full metal gear. Improve servo’s accuracy and extend its service time
• Dual ball bearing: one is the driving ball bearing, the other is the assistant ball bearing (support role)
• Use high-precision potentiometer in the new design. Accuracy and linearity have been greatly improved! Accurate movement can help you build up robots
• The control board uses I/O port to connect the serial servo, servos are connected in series through a dual interface, which reduces the use of serial ports. Simple wiring makes the product more exquisite and attractive
