SA818 (DRA818) Breakout PCB Version 2.1

Name: SA818 (DRA818) Breakout PCB Version 2.1
SKU: 34543
Price: 10.00 USD
Availability: InStock

PCB for a SA818 or DRA818 UHF or VHF Transceiver module.

Designed by HobbyPCB in United Kingdom

SA818 (DRA818) Breakout PCB Version 2.1 1

SA818 (DRA818) Breakout PCB Version 2.1 2

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Visit our website http://www.hobbypcb.co.uk for more info. PRICE REDUCTIONS on MOST PCBs until December 2024

PCB for a SA818 or DRA818 UHF or VHF Transceiver module.

What is it? This is a breakout Printed Circuit Board for a SA818 transceiver module. Why did you make it? I am a licensed Radio Amateur and building electronics is part and parcel of the culture. I h…

What is it?

This is a breakout Printed Circuit Board for a SA818 transceiver module.

Why did you make it?

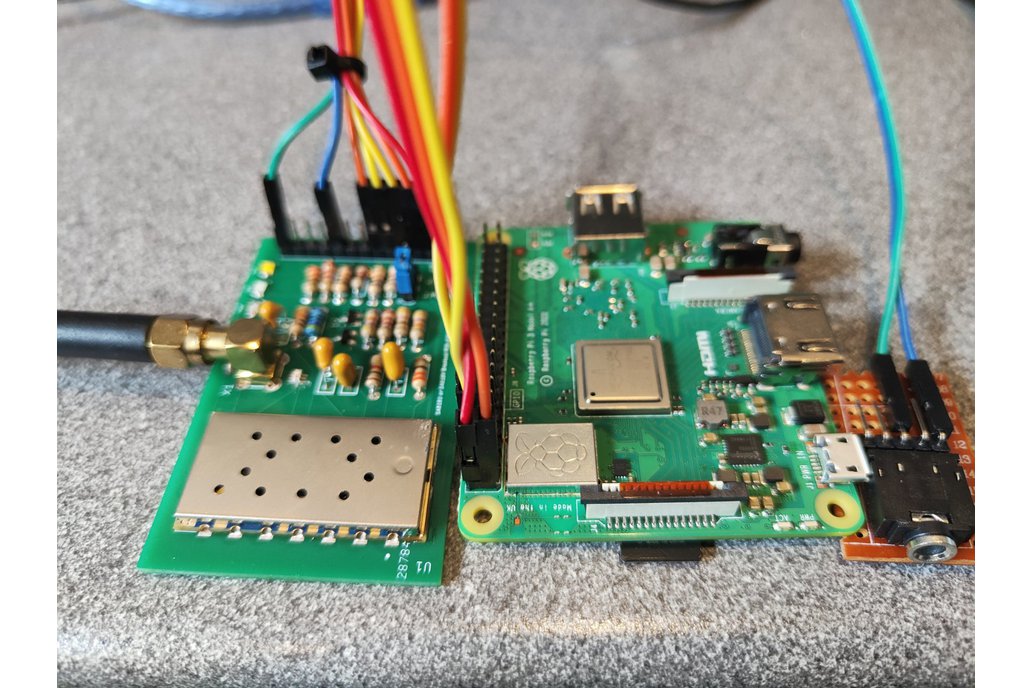

I am a licensed Radio Amateur and building electronics is part and parcel of the culture. I have wanted to construct a radio using this module for some time and successfully built the shield for an OrangePi zero published by VoltNode. A great design but designed exclusively for the OrangePi. I wanted to be able to interface any MCU to make programming the module easier, hence the PCB here. Version 2.1 makes connections clearer with extra GNDS for flexibility. It also includes an option for a PTT button.
