The Fluke 884XA processor is made of Unobtainium!

Fluke used several variations of the Zilog Z8611 processor in the 884X meters including the Z8613 piggy-back device with a 4K ROM mounted on top. There are mask-ROM versions with 4K internal & 4K external in socket U202, as well as 8K internal with no external ROM. The earliest 8840A ROM version is 2.3, progressing to the final 4.0 version in the late 1990's. For the 8840AF we know of only a 2.5 ROM set and for the 8842A there are 3.0 & 3.1 ROM sets. We see no good reason to use any but the latest version.

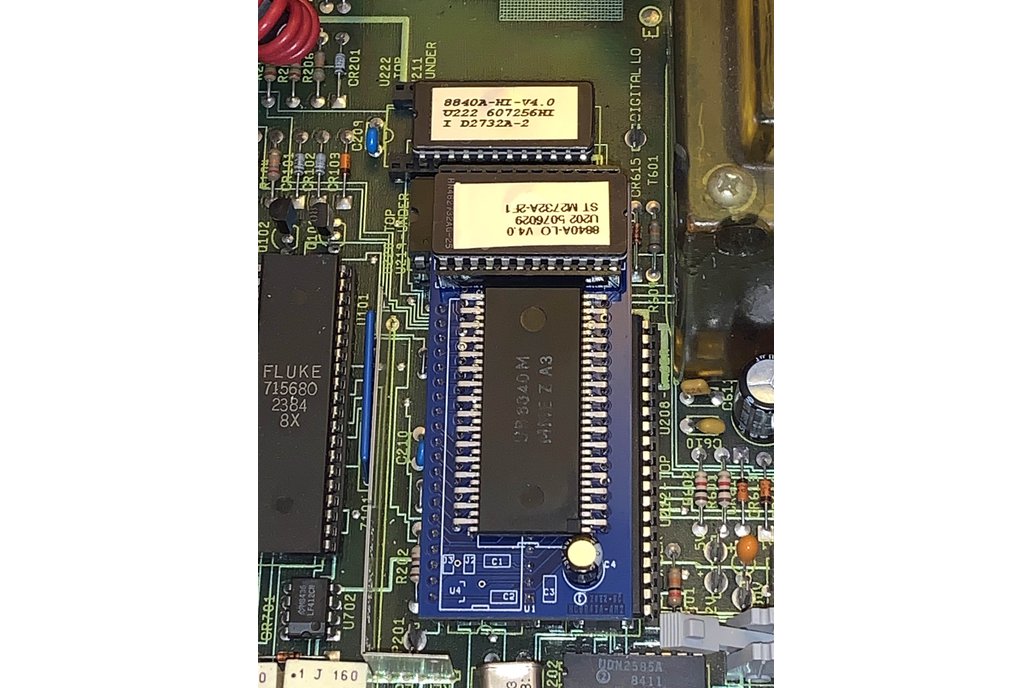

Our Z8611 clone is based on the UB8840M with a PCB mounted external UV EPROM for the low 4K. This is a 64-pin QIL package with buffered I/O for reading external ROMs.

Each of the 3 Fluke meters (8840A, 8840AF & 8842A) require a different ROM set. We can provide both upper & lower ROMs in the latest version for the selected meter. (Except for the 8840AF)

Our KIT package contains a PCB with premounted SMD capacitors. It also includes the UB8840M processor, EPROM socket and all needed pin headers and through hole components.

If you also need EPROMs, please contact us before ordering.
