1.Description:

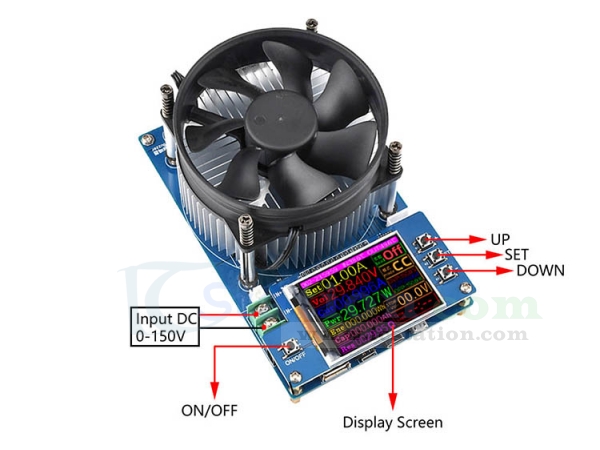

It is a 150W Electronic Load Tester 2.4in TFT LCD Display Aging Discharger Battery Capacity Tester

2.Feature:

• Overload protection
• Overcurrent protection
• High temperature protection

3.Parameter:

• Working power supply: DC 12V 1A
• Input voltage:DC 00.000~150.00V
• Input current:DC 00.000~20.000A
• Power range:0~150W
• Capacity range:0~999.999Ah
• Electricity range:0~99999.9Wh
• Impedance range:0~999.999Ω
• Temperature range:-50℃~120℃(Outside) -10℃~80℃(Inside)
• Time accumulation range: 999-23:59:59
• Fan cooling power: ≤150W
• Fan control threshold: Temp＞40℃
• Screen standby time: normally on or 0~ 99seconds
• Run time accumulation function: >0.05A began to record the total time
• Input interface: 20A high current occlusion screw column, type A USB,Mini USB, Micro USB, Type-C USB
• Refresh time:＞500ms/time
• Measurement rate: 0.5time/s
• Over limit alarm: interface warning and buzzer alarm
• Voltage overrun protection set range:0~150V The default 150V
• Current overrun protection set range:0~20A The default 20A
• Power overrun protection set range:0~150W The default 150 w
• Low voltage stop range: 0~150 v

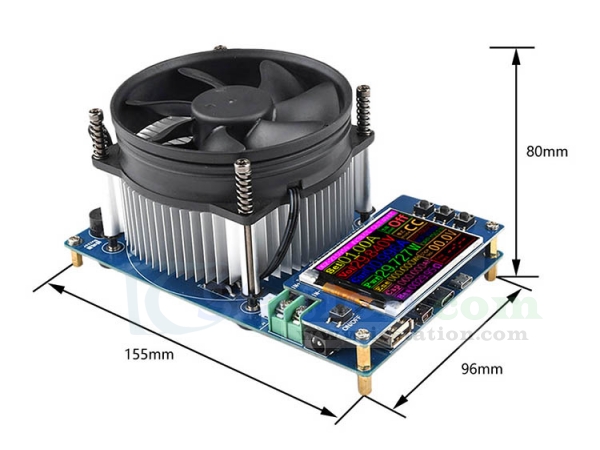

• Size:155x96x80mm/195x105x135mm(package)
• Consumption:＜1.5A
• Working temperature:-10~60℃
• Working humidity:10~80(No condensation)

4.Package:

• 1pcs Battery Capacity Tester
• 1pcs Power Adapter
• 1pcs Power conversion plug
• 1pcs Temperature sensor
