1.Description:

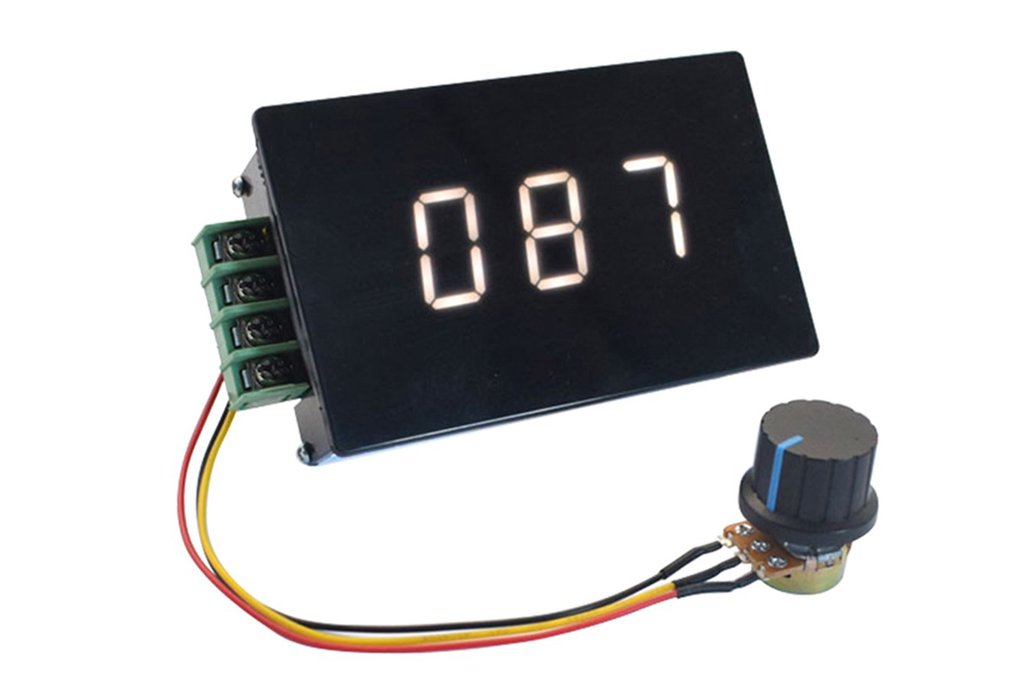

• It is a PWM motor governor.
• It is suitable for the speed adjustment of the motor, with a rotary button, the adjustment is simple and convenient, and it is worth having.

2.Feature:

• It has a digital display that can show the speed percentage.
• It supports panel-type embedded installation.
• It supports brushed motors.
• It has a potentiometer, and the size is adjusted by the potentiometer.

3.Parameter:

• Product Name:PWM Motor Governor
• Input Voltage:DC 6V-60V
• Output Current:0-30A
• Continuous Current:20A
• Speed Regulation Type:regulating current
• Speed Regulation Mode:potentiometer
• Support Motor:brushed motor
• Forward and Reverse:one-way
• Speed Range:0-100%
• Control Frequency:15KHz
• Digital Display of Speed:0-100%
• Wiring Type:Barrier terminal block
• Knob Cable length:18cm
• Work Temperature:-25℃~85℃
• Work Humidity:5%~95%RH
• Size:96x61x34mm

4.Note:

• The digital display only displays 1-100 non-motor actual speed.For example,when the full speed of the motor is 5000 rpm,it will display 100 when it is 5000 rpm,and 50 when it is 2500 rpm.
• The input voltage must be divided into positive and negative.
• The input voltage should be equal to the rated voltage of the motor.

5.Package:

1pcs PWM Motor Governor
