Description:

• It is a 3-series lithium battery charger.
• The solar cell maximum power point tracking (MPPT) is to ensure that the photovoltaic cell always outputs the maximum power when the light intensity changes to make full use of the solar energy.
• In general, it is necessary to use a switch-mode DC-DC converter to realize the MPPT function to keep the product of output voltage and charging current (output power) maximized.

Feature:

• MPPT solar maximum power tracking charging management chip, with trickle, constant current, and constant voltage charging management.

• It adopts imported high frequency low conduction internal resistance double MOS tube, high current diode, high efficiency flat high power inductor, alloy current detection resistor.

• The large aluminum heat sink at the bottom ensures long-term stable operation under high current.

• It is equipped with dual battery status indicators to see the battery status.

Parameter:

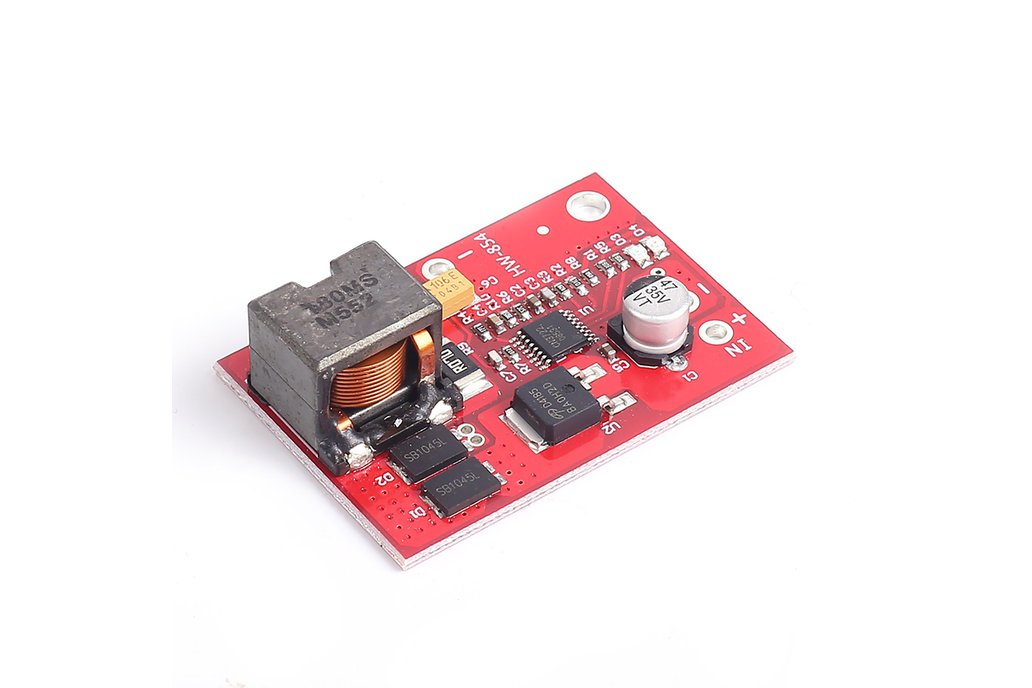

• Product Name:3-Series Lithium Battery Charger
• Input Voltage:DC 18V
• Output Voltage:DC 12V
• Output Current:3A
• Connection Method:Welding
• Work Temperature:-25℃~85℃
• Work Humidity:5%~95%RH
• Size:453210mm

Interface Description:

• IN+:Input positive
• IN-:Input negative
• BAT+:Battery positive
• BA-:Battery negative

5.Package:

• 1pcs 3-Series Lithium Battery Charger
