Introduction:

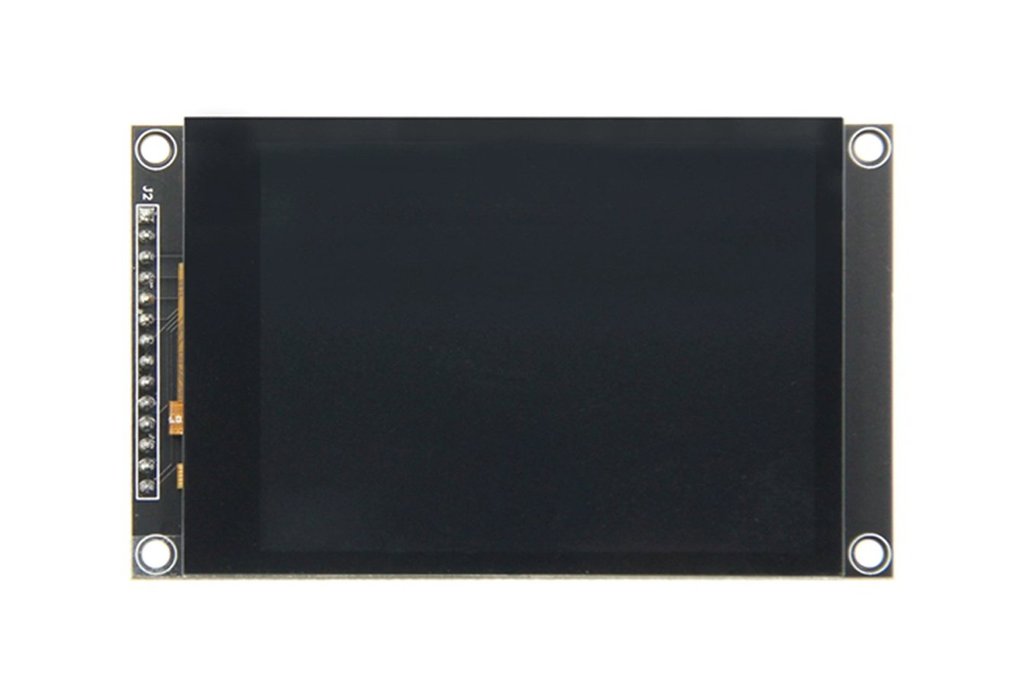

• It is a 3.2 inch SPI Serial TFT LCD Capacitive Touch Screen Display Module 240*320 IPS Version Black

Feature:

• 3.2inch color screen with 240x320 resolution of 65K colors and rich display colors.
• The upgrade adopts IPS full view panel, with good visual angle.
• On board level conversion circuit, compatible with 5V and 3.3V MCU.
• Adopting a 4-wire SPI serial bus to save I/O pins.
• Optional capacitive touch/no touch function for modules.
• Module input supports 2.54 pin interface and FPC extension interface.
• Equipped with micro TF card slot for easy storage expansion.

Parameter:

• Screen Size: 3.2inch
• Screen Type: IPS
• Resolution: 240xRGBx320 (pixels)
• Number of Colors(Max):262K
• LCD Driver IC: ILI9341V
• Display Interface: 4-Line SPI
• Pixel Size: 0.2025(H)x0.2025(V)(mm)
• View Angle: ALL 0’CLOCK
• Brightness(TYP): 280(cd/m2)
• Backlight Type: White LED*6
• Touch Screen Type: Capacitive Touch Screen
• Touch Screen Resolution: 240x320(pixels)
• Touch Screen Driver IC: FT6336G
• Communication Interface: IIC
• Working Voltage: 5.0 V
• Backlight Current：95 mA
• Power: 0.5 W
• Interface: 14P 2.54mm spacing Header and 0.5mm spacing FPC seat
• Work Temperature:-10~50℃
• Work Humidity:0%~95%RH
• Size: 55.2x90.5MM

Interface Function Description:

• 14 Pin Header: 2.54mm spacing row pins, module signal input pins.
• Micro SD Slot: Insert a Micro SD card to expand storage space, such as storing big data content such as fonts and images.
• 14P FPC: 0.5mm FPC terminal, used for module signal input with the same function as 14 Pin.

Pin Function Description:

• VCC: Power positive.
• GND: Power ground.
• LCD_CS: LCD selection control signal, Low level active.
• LCD_RST: LCD reset control signal, Low level reset.
• LCD_RS: LCD command / data selection control signal (High level: data, low level: command).
• SDI(MOSI): SPI bus write data signal(SD card and LCD screen used together).
• SCK: SPI bus clock signal(SD card and LCD screen used together).
• LED: LCD backlight control signal (If you need control, please connect the pins. If you don't need control, you can skip it).
• SDO(MISO): SPI bus read data signal (SD card and LCD screen used together).

• CTP_SCL: Capacitive touch screen IIC bus clock signal (modules without touch screens do not need to be connected).

• CTP_RST: Capacitor touch screen reset control signal, low-level reset (modules without touch screens do not need to be connected).

• CTP_SDA: Capacitive touch screen IIC bus data signal (modules without touch screens do not need to be connected).
• CTP_INT: Capacitor touch screen IIC bus touch interrupt signal, when generating touch, input low level to the main control (modules without touch screens do not need to be connected).
• SD_CS: SD card selection control signal, low level active (without SD card function, can be disconnected).

Package:

• 1pcs 3.2inch TFT SPI 240*280 Capacitive Touch .
• 1pcs 14P FPC 0.5 Reverse 30CM
