1.Description:

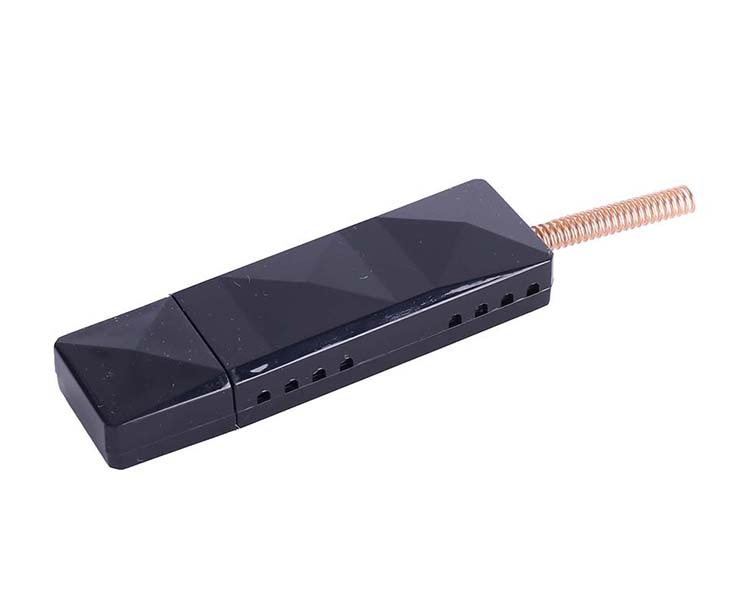

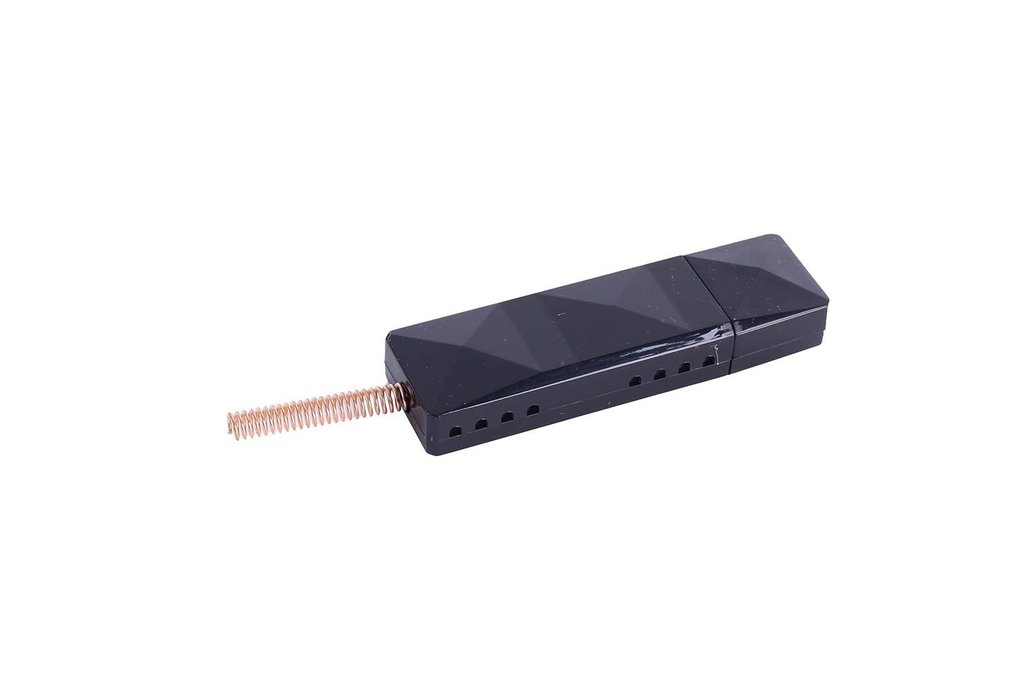

• It is a Wireless remote control signal amplifier.
• This product is a radio frequency signal repeater, mainly used for signal amplification and relay.
• It uses 2 main control chips,one for receiving and decoding the received signal,the other for transmitting,and the two main controllers are relatively independent.
• The stability and response speed are greatly improved,and the forwarding is performed immediately after receiving the correct decoded signal.

2.Feature:

• It is plug and play,no need to set up.
• Solve signal blind spots and achieve full coverage.
• It has good stability and fast response.
• Built-in receiving antenna.

3.Parameter:

• Product Name:Wireless Remote Control Signal Amplifier
• Product Number:YS-RPT1
• Supply Voltage:DC 5V
• Working Current:250mA
• Standby Current:21mA
• Transmitting Power:28dbm
• Launch Distance:500 meters (open distance),200 meters (indoor)
• Receiving Distance:50 meters (visual distance)
• Product Use:433 wireless remote control
• Work Temperature:-25℃~85℃
• Work Humidity:5%~95%RH
• Size:1152617mm

4.Signal Conditions Applicable to Forwarding:

• Support Decoding Signal:Chip models 2260,2262,2240,2264,1527,1520,SMC918,FP527
• Support Decoding Frequency:315Mhz
• Support Oscillation Resistance range:1.8M~5.6M

5.Note:

• Generally,place this repeater closer to the remote control end (transmitting end),or place it in the center,and place it when the remote control signal can be received normally.
• Avoid placing the receiving switch within the remote control signal range.
• with the repeater signal may cause some more sensitive switches to perform two actions.
• If two or more repeaters are used in an environment,please use the designated repeater mode to limit a certain signal to be forwarded by a repeater.
• It avoids the continuous loop forwarding of the same signal in 2 repeaters.

6.Use the Test Process:

• Find a mobile phone charger with a USB port and plug it in as a power supply.
• Place it near the remote control (transmitting end) or the center of the remote control from the receiver.
• When the remote control can control the device normally,press the remote control button for 1 second to check whether the transmitter indicator is all off and the device is under normal control.
• If there is no indicator light change on the repeater after pressing the remote control,it generally means that the remote control does not support it.If one light flashes and one light is always on,it means that it is currently in "designated forwarding mode" and this signal is learning.

7.Working Mode Switch:

• 1.Introduction to working mode:
• 1.1.Arbitrary forwarding mode:Unconditionally forwarding after receiving the signal that meets the requirements.

• 1.2.Any forwarding mode:simple operation,no need to set up,just plug in and use,as long as there is a signal,it will forward.The designated forwarding mode is used to use 2 or more of this product in an environment to avoid interference caused by repeated and continuous transmission of signals.You can specify a signal to learn through this mode,and only the signal that has been learned and recorded can be forwarded.

• 2.Working mode switching method:

• 1.1.Arbitrary forwarding mode:Short press the "set button" when the indicator flashes once,it means that the current is any forwarding mode
• 1.2.Designated forwarding mode:Short press the "set button" when the indicator flashes for 2 times,it means the current forwarding mode

8.Signal Learning Method for Specified Forwarding Mode:

• Learning status:
• Long press the "Settings button" for 2 seconds,the indicator light will light up and release the button,which means you have entered the learning status.At this time,press the remote control button to transmit the signal,and the indicator light flashes 2 times to indicate that the signal learning record is completed.Learn more to repeat this operation.
• Clearing status:Long press the "settings button" for 4 seconds,and then release the button after the indicator light turns on and then off,which means the record has been cleared.
• Forwarding time:
• Long press the "Settings button" for 6 seconds,the indicator will turn on and then off,and release the button when it flashes 1,which means that the forwarding time is about 1 second.
• Long press the "set button" for 8 seconds,the indicator light will turn on and then off,and release the button when it flashes 2,which means that the forwarding time is about 1.5 seconds.
• Long press the "set button" for 10 seconds,the indicator light will turn on and then off and release the button after flashing 3,which means that the forwarding time is about 2 seconds.

9.Frequently Asked Question:

• 1.How far is the transmitting distance and how far is the receiving distance:

• Answer:The transmission distance is related to environmental obstacles,such as a distance of 500 meters in a normal non-complete open place;the receiving distance is also related to the environment,and the specific issue depends on the transmission power of the remote control.

• 2.Can this control other curtains,shutters,and alarms?

• Answer:This product simulates the emission of 2262 1527 coded signal,if your device has the signal of learning these 2 coded formats,it can support it.

• 3.Why is there no response when I press my remote control repeater?

• Answer:Before using,you need to determine the frequency and chip model of your remote control.If there is a mismatch between the frequency and model,the output cannot be decoded.Therefore,the purchase frequency must be the same,for example,433M remote control must purchase 433M equipment.

• 4.How do I see if the remote control chip model and frequency symbol do not match?

• Answer:You can consult the remote control vendor for this,or you can disassemble the remote control shell by yourself.You can see that there is a metal block inside,usually with words printed on it.Normally you can see 315Mhz or 433Mhz,and the chip model can see the largest one.The black blocks generally have 8 feet or 16 feet or more,and they are also printed with common words.2262,2260,1527 are also supported.

10.Package:

1pcs Wireless Remote Control Signal Amplifier
