Description:

• 8 digit bi-directional 3.3V-5V/5V-3.3V logic level converter board.
• It can bidirectionally transfer with 8 channels between high logic voltage and low logic voltage.
• VCCA side voltage range: 1.2V-3.6V; VCCB side voltage range: 1.65v-5.5v
• Serial communication interface is compatible with UART/IIC/SPI port, which is easy to connect.
• Widely used in the communication between 5V SCM and 3.3V device, 3.3V SCM and 5V device. It can also apply in the level conversion between MCU and SD card, MCU and iic/spi serial port devices.

Feature:

• Provide two-way communication capability
• VCCA side support voltage: 1.2V-3.6V
• VCCB side support voltage: 1.65v-5.5v
• Can provide 3.3-5V, 1.8-3.3v and other common level conversion capability

Main applications:

• 5V and 3.3V MCU module
• 3.3V and 5V MCU module
• Compatible and other communications support
• MCU and SD card communication level conversion
• SCM and iic, spi serial device level converter
• OE active high enable IO recommended by a low voltage side of the IO port

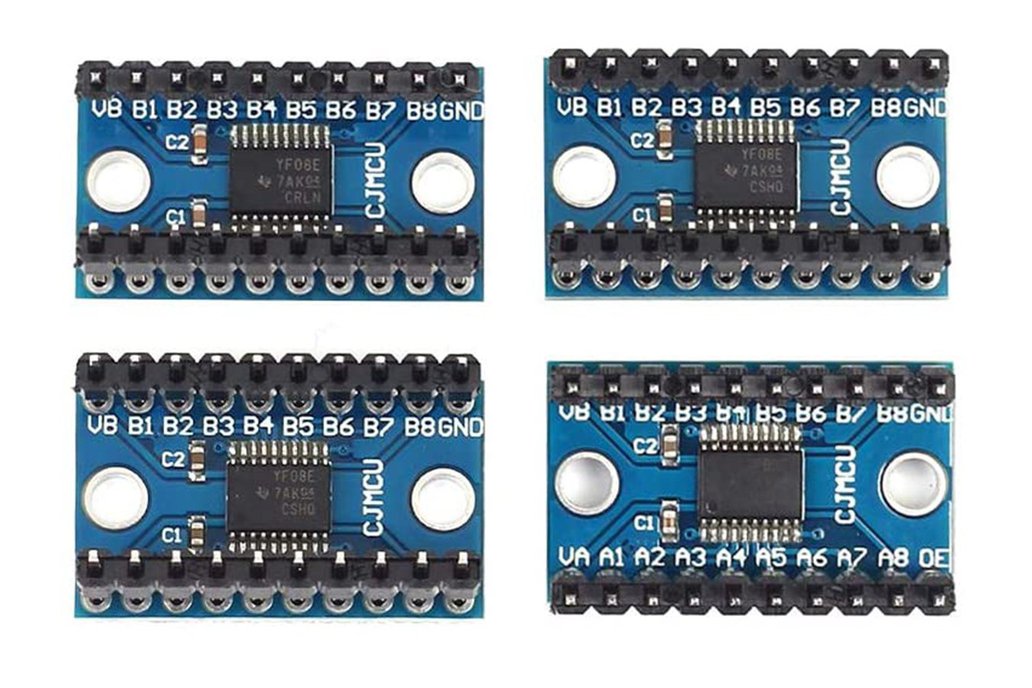

TXS0108E 8 Channel Logic Level Converter

• Bi-Directional High Speed Full Duplex

• Icstation bi-directional logic level converter is a small board that safely steps down 5V signals to 3.3V and steps up 3.3V to 5V at the same time. This level converter also works with 1.8V and 2.8V devices.

• The level converter is very easy to use. Each level converter has the capability of converting 8 pins on the high side to 8 pins on the low side.

• The level converter provide serial interface compatible with UART/IIC/SPI port is very easy to use.

Note

• The logic converters are designed mainly to connect different logic devices (micro-controllers, gates, modems) and/or control external devices (ie actuators that require a digital input signals for logic control).
• Using them to power up external devices it's not recommended and can damage your converter and devices connected to it.
