Description:

• XY-Y50L is a high-power 50W+50W HIFI Stereo Bluetooth 5.1 Audio Amplifier Module which also can be controlled by APP Sinilink and remote controller. It can modify the Bluetooth name and password, also can turn ON/OFF Bluetooth prompt tone.

• 2.0 channels audio signal output. Built-in amplifier module therefore it can connect to loudspeaker directly. It supports Bluetooth music receive and AUX/USB audio input. It is ideal for DIY wireless Bluetooth speakers and transponders.

Features:

• Bluetooth APP Control: It can not only be used as an ordinary Bluetooth receiver, but also use the special Bluetooth APP SiniLink to achieve the play state switching and sound quality playback.ON/OFF Prompt Voice, Modify Bluetooth Name, ON/OFF Bluetooth Password, Modify Bluetooth Password, Switch Bluetooth/AUX/USB Audio, Adjust Volume for Prompt Voice.

• Remote Control: It uses an infrared remote control with silicon rubber buttons which can improve user experience. It can adjust the volume, switch music, switch audio mode, switch sound effects, and also mute and turn off the power which can implement remote control and more convenient operation

• HIFI 50W+50W Dual Channel Stereo: It has a built-in amplifier chip to provide 50W*2 high power drive capability with DC 9V-24V work voltage.Recommended to use more than 5A current to get more clear, bright and high fidelity sound.

• Bluetooth/AUX/U-disk Audio: It can not only receive music via Bluetooth, but also via AUX and U-disk to fit different needs. It is capable of playing WAV, WMA, FLAC, APE, MP3 and APE music files.

• Application: Perfect for home theaters, KTVs, outdoor parties, and more, this Bluetooth amplifier will improve sound quality and provide a surround sound experience. It is easy to install and use, allowing you to experience an immersive sound with minimal effort.

Functions:

• Bluetooth APP Control
• Remote Control
• Bluetooth/AUX/U-disk Audio Input
• HIFI 50W+50W Dual Channel Stereo
• ON/OFF Prompt Voice
• Modify Bluetooth Name
• ON/OFF Bluetooth Password
• Modify Bluetooth Password
• Adjust Volume for Prompt Voice
• 60° Infinite Adjust Volume

Parameters:

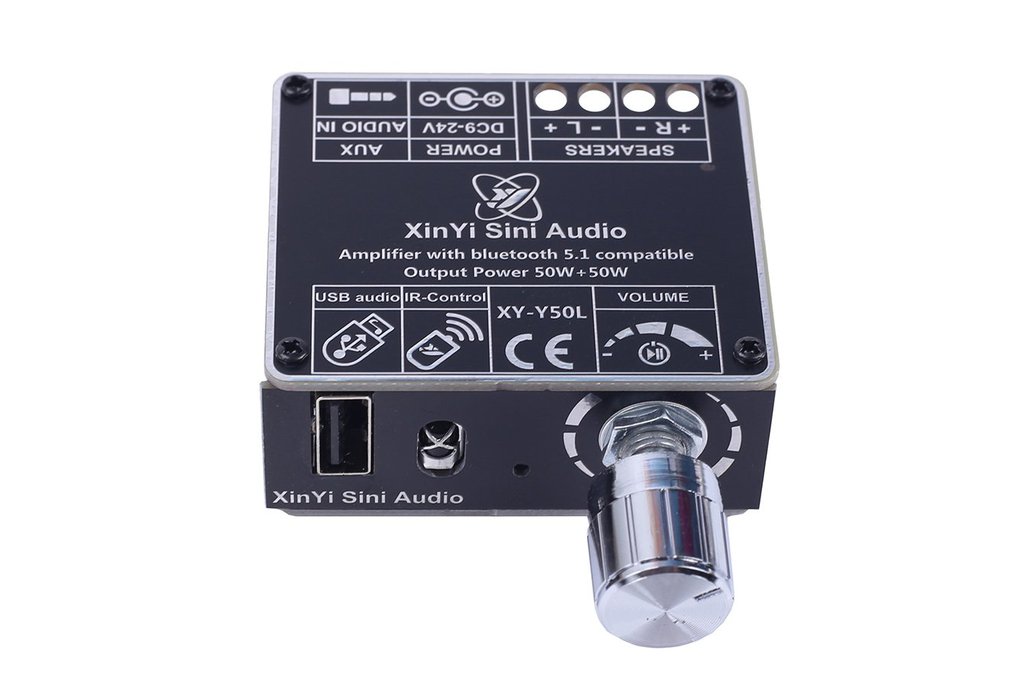

• Product name:XY-Y50L 50W+50W HIFI Stereo Bluetooth 5.1 Amplifier Module
• Model:XY-Y50L
• Work Voltage:DC 9V-24V(12V or more recommended)
• Work Current:>5A
• Unique function:Sinilink APP control
• Channel:2.0 channel stereo output
• Bluetooth:BLE 5.1
• Audio input type:Bluetooth/AUX/U-disk
• Audio output type:Left/Right
• Adjust volume:360° Potentiometer adjustment
• Frequency range:20Hz-20KHz
• Music format for U-disk: WAV, FLAC, APE, MP3
• Output power:
• Output power 10W*2 at 12V 8ohm
• Output power 20W*2 at 12V 4ohm
• Output power 30W*2 at 24V 8ohm
• Output power 50W*2 at 21V 4ohm
• The voltage cannot exceed 21V at 4ohm
• The voltage cannot exceed 24V at 8ohm
• Communication distance:15meter(Max)
• Over temperature protection:Yes
• Short circuit protection:Yes
• Over voltage protection:Yes
• Under voltage protection:Yes
• Clipping protection:Yes
