Product Introduction:

• Input Voltage: DC 4.5-24V
• Output Voltage:integration adjustable and fixed output, back side can choose fixed output voltage
• Adjustable Range: 0.8-17V, fixed voltage （1.8V 2.5V 3.3V 5V 9V 12V）
• Output Current: 3A (max), actual testing input 12V output 1.5A

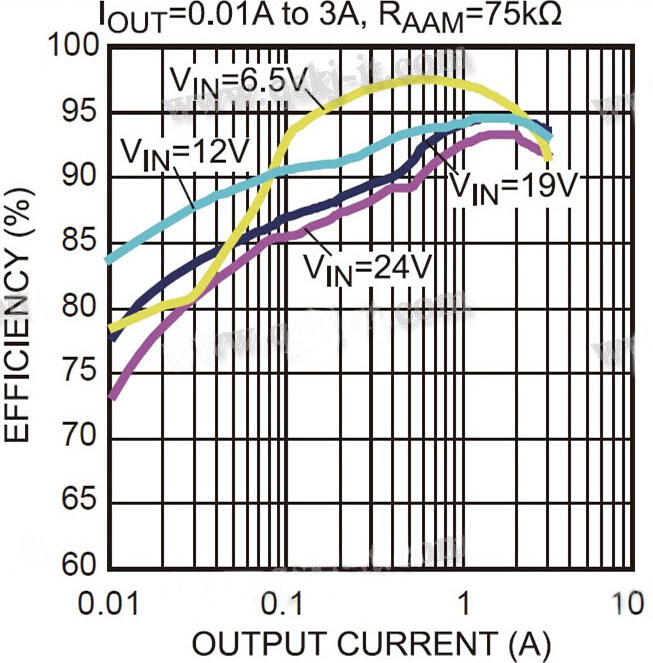

• Transform Efficiency: 97.5%(max)（6.5 to 5V 0.7A）
• Switch Frequency: 500KHz
• Output Ripple Wave: 20mV (12V to 5V 3A) 20m band width
• Operating Voltage:-40℃～85℃
• Output Overvoltage Protection:no
• Static Current: 0.85MA
• Load Adjust Rate: ±1%
• Voltage Adjust Rate: ±0.5%
• Dynamic Response Speed: 5% 200uS
• Output Short Circuit Protection: yes
• Input Transposition Protection: no
• Enable Control: yes
• Connecting Type: soldering
• Input Way: soldering
• Output Way: soldering/pin
• Soldering Hole Space: 2.54mm

Note:

• Default output is the adjustable mode.

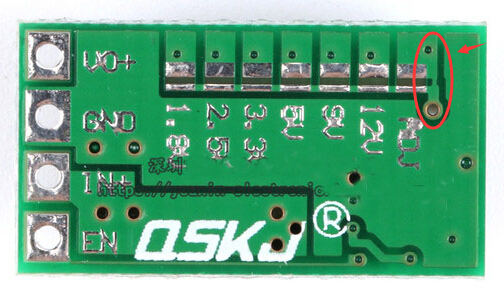

• If you want to use the fixed output, please cut the wire on the PCB in the red sphere.

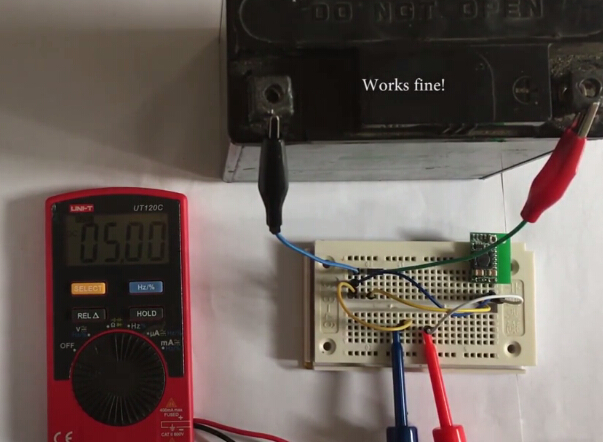

Testing Picture:

Tested by ICStation's Outstanding Partner Planetleak DIY Projects:
