This Robot is made of 18 SG90 Servo Motors

To make this robot move, we just need the control software and the following components:

• 1.6 Legs 18 DOF Robot Black Spider Robot 18pcs SG90 Servo Motor
• 2.32 Channels Servo Motor Controller Robot Contorller Servo Driver
• 3.7.4V power supply

Notes:

1.The controller 3509 can connect with 32 pcs servo motors, connect the pin "+" with the red wire of the servo motor, the pin "-" with the orange wire of the servo motor, connect the pin "S" with the yellow wire of the servo motor.

2.You can also other controller like Arduino, but we have not prepared the related material right now. And you can use the joystick when you use the control 3509, but you need to order it separately.

3.You can control the robot via USB wire with the help of the controller 3509 and it's control software. But if you use other controller, you have to try another way to control the robot, we do not have related material for other controller right now.

Length 13.3CM, width 20CM, height of about 8.5CM When the robot moves,the size can be different.

SG90 Servo Motor:

• Dimension: 22mm x 11.5mm x 22.5mm
• Net Weight: 9 grams
• Operating speed: 0.12second/ 60degree ( 4.8V no load)
• Stall Torque (4.8V): 17.5oz /in (1kg/cm)
• Temperature range: -30 to +60
• Dead band width: 7usec
• Operating voltage: 3.0V~7.2V
• Fit for ALL kind of R/C Toys
• Coreless motor

3 pole wure

--All nylon gear

--Dual ball bearing

--Connector wire length 150mm

--Accessory : comes with 3 different servo horns and fittings

Accessories Introduction

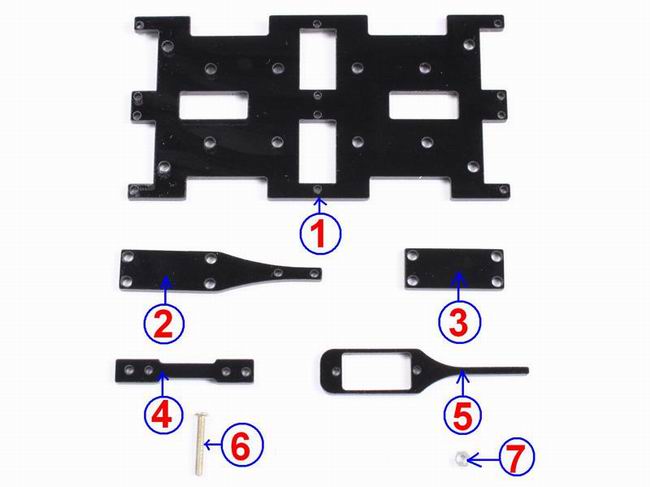

Accessories Introduction 1 (In kit)

• Part 1: Host Body Bracket x1
• Part 2: Arm 1_1 x6
• Part 3: Arm 1_2 x6
• Part 4: Arm 2 x6
• Part 5: Leg x6
• Part 6: M3*20 Screw x12
• Part 7: M3 Nut x12

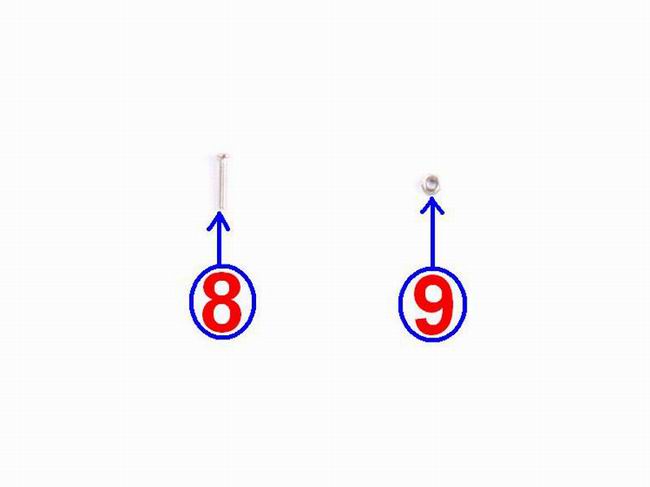

Accessories Introduction 2 (Prepare by yourself, we will not send in kit)

• Part 8: M1.5*11 Screw x24
• Part 9:M1.5 Nut x24

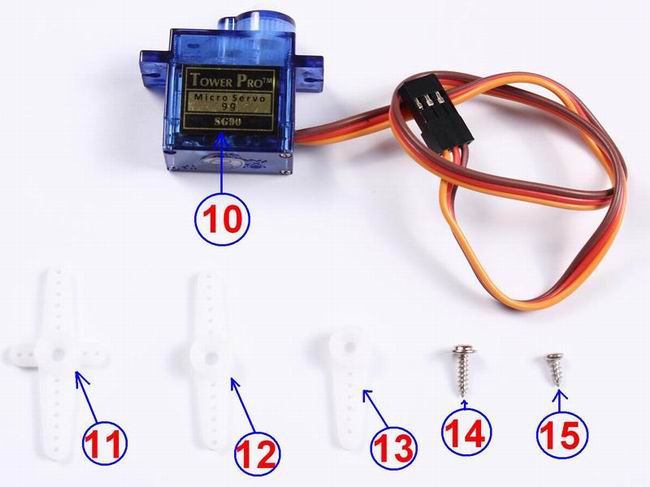

Accessories Introduction 3 (Prepare by yourself, we will not send in kit. Part 11~15 are Part 10’s accessories, they are all in one kit. If you purchase Part 10, seller will send you Part 11~15)

• Part 10: SG90 Servo motor x18
• Part 11: “+” servo bracket (We will not use it in install)
• Part 12: “-” servo bracket (We will not use it in install)
• Part 13: servo bracket x18
• Part 14:M2*7 Screw x18
• Part 15:M2*5 screw x18
