Feature:

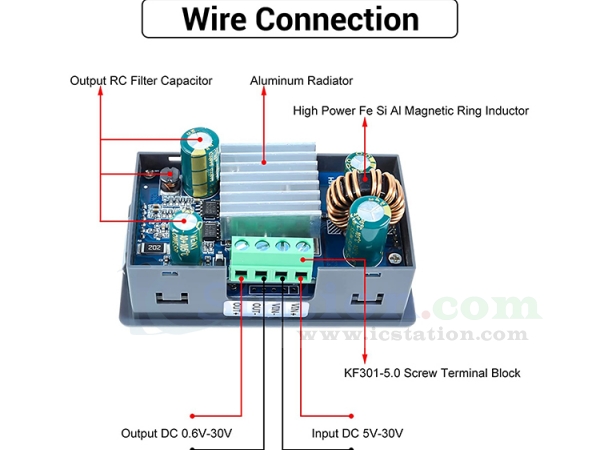

1. GOOD HEAT DISSIPATION: Automatic lifting pressure module with thickened heat sink, and fixed with screws,not only better heat dissipation performance, and more stable, not easy to fall off.

2. SAFE TO USE: This section of Step up down module is easy to install, and the PDF version of the manual is provided for your convenience. And with a variety of protection mechanisms, such as anti-reverse protection, over temperature protection, over capacity protection, timeout protection.

3. HD LCD DISPLAY: This Power supply module has an HD LCD display for clearer reading and can display multiple parameters at once, eliminating the need for frequent switching of the required parameters.

4. PRODUCT PARAMETERS: The input voltage of this adjustable voltage regulator is DC 5-30v and the output voltage is DC 0.6-30v. Under the condition of natural heat dissipation, the output power is 35W, and under the condition of air cooling, the output power can reach 50W.

5. WIDE APPLICATION: CNC step-up step-down module has a variety of protection functions, can be widely used in the laboratory power supply, outdoor camping, electric scooters, golf carts, etc.

Parameters:

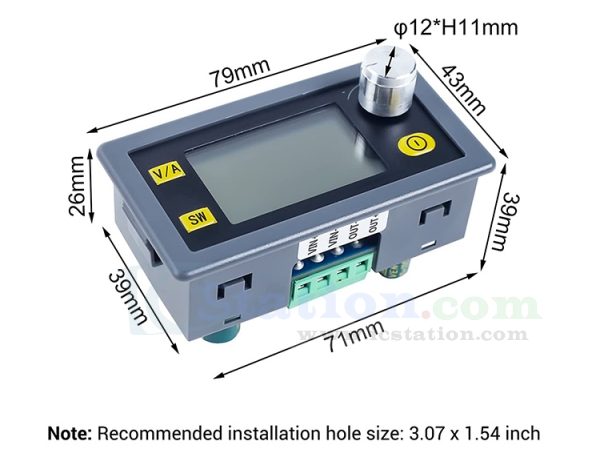

• Product Name: XY-SK35H 35W 4A CVCC Buck Boost Power Supply Module
• Work Voltage:DC 5V-30V
• Output Voltage: DC 0.6V-30V
• Output Current: 0~4A
• Output Power: 35W (50W with additional radiator)
• Voltage Display Precision:+/-0.5%+0.01V
• Voltage Display Resolution:0.01V
• Current Display Precision:+/-0.5%+0.003A
• Current Display Resolution:0.001A
• Conversion efficiency:About 88%

Instructions for Use:

Note: When OAP/OPH and OHP functions are not enabled, the power supply will automatically record the capacity/energy and running time. After OAH/OPH and OHP functions are enabled, the power supply will automatically turn off the output after reaching the set value. After the OHP function is enabled, the running time of the power supply is countdown mode.
