Description:

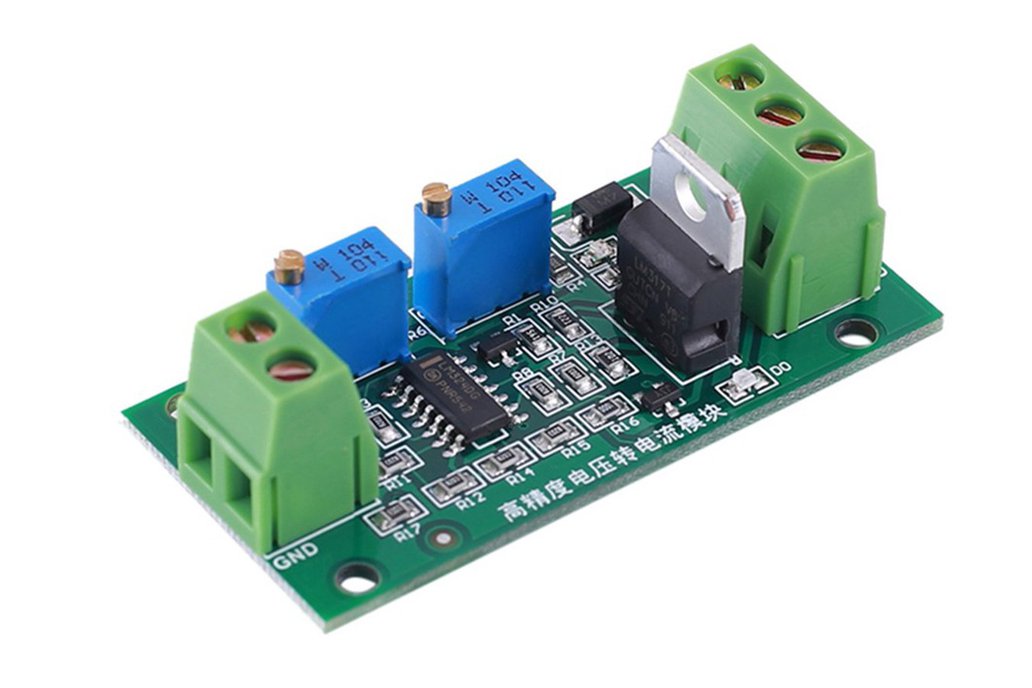

• It is a 0-3.3V to 4-20mA Voltage to Current Converter. It can convert DC 0-3.3V voltage signal to 4-20mA current signal.
• User also can reset input voltage range and output current range by two potentiometer. It also can be used a constant current output source without input voltage signal.

Features:

• Repeatable setting parameters
• Constant current output source
• 750ohm drive load

Parameters:

• Product Name:0-3.3V to 4-20mA Voltage to Current Converter
• Working Voltage:DC 12V-32V
• Input Signal Voltage:DC 0-3.3V (Default)
• Output Signal Current:4mA-20mAV (Default)
• Precision: 0.01A
• Working Temperature range:-10℃~70℃
• Working Humidity Range:5%-95%RH
• Module Size:56x26x18mm

Reset Parameters:

• For example: set the module to 0-2.5V to 3-18mA.
• Input 0V voltage signal.
• Adjust R6(Right) potentiometer until the output current is 3mA.
• Adjust R6(Left) potentiometer until the output current is 18mA.

Application:

• PLC industrial controller
• Circuit safety protection equipment
• Factory circuit design
• Industrial measuring instruments

Package:

• 1pcs 0-3.3V to 4-20mA Voltage to Current Converter
