1.Description:

• It is a stepper motor drive controller.
• This module is a pulse generation module, which is supplied as a signal to the stepper driver.
• If you want to control a stepper motor, you must also be equipped with a driver.
• This simple controller + stepper drive + stepper motor + DC power supply can form a simple control platform.

2.Feature:

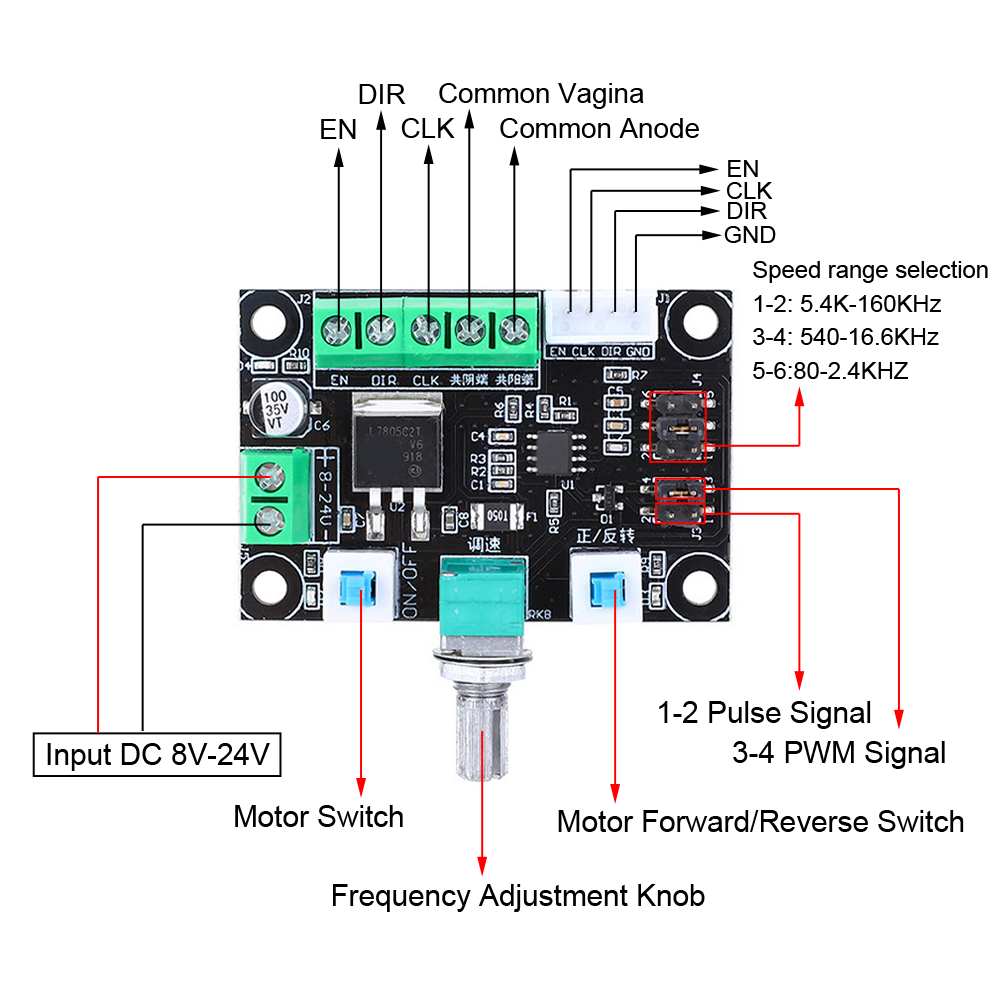

• It has a frequency adjustment knob to adjust the frequency.
• It has a motor forward and reverse switch and a motor switch.
• It has 3 kinds of frequency signals,which can be selected by skipping stitches.
• It can generate pulse signal and PWM signal,which can be selected by jumper.
• It can measure frequency through two ports:PUL and common cathode (or common anode).

3.Parameter:

• Product Name:Stepper Motor Drive Controller
• Input Voltage:DC 8V-24V
• Frequency Signal:5.4KHz-160KHz/540KHz-16.6KHz/80KHz-2.4KHz
• Signal Selection:pulse signal/PWM signal
• Work Temperature:-25℃~85℃
• Work Humidity:5%~95%RH

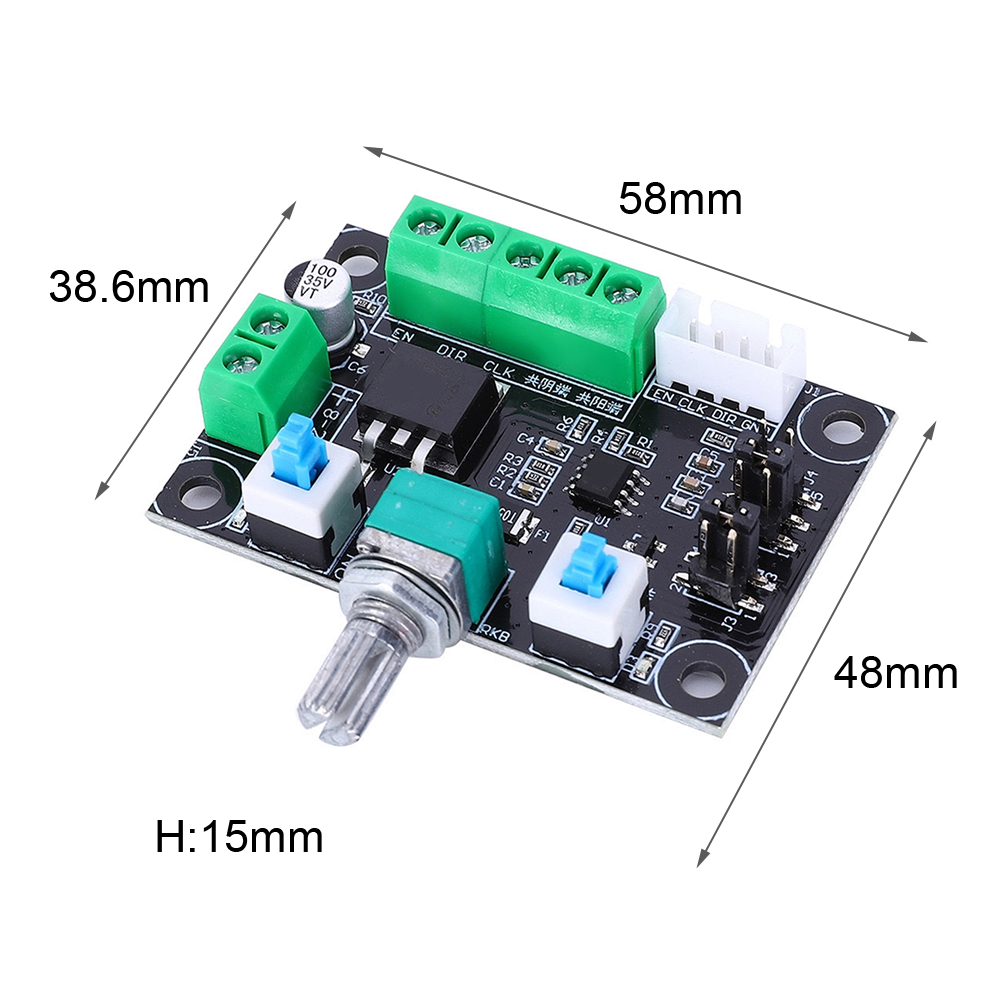

• Size:5838.615mm

4.Common Anode Connection (connection B):

• EN+,PUL+,DIR+ are connected together to the common anode.
• EN-:Connect to EN
• PUL-:Connect to CLK
• DIR-:Connect to DIR

5.Common Cathode Connection (connection B)

• EN-,PUL-,DIR- are connected together to the common cathode.
• EN+:Connect to EN
• PUL+:connect to CLK
• DIR+:connect to DIR

6.Package:

• 1pcs Stepper Motor Drive Controller
