1.Description:

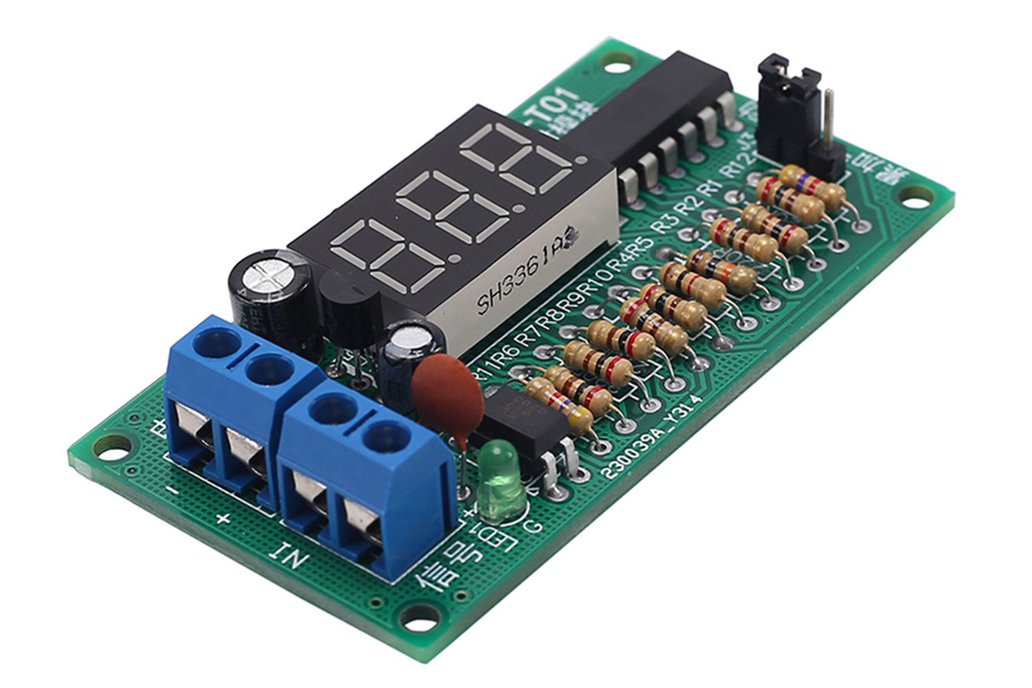

• QF-T01 is a DC6V-25V 3Bit Red Digital Timer Module.
• It's a very simple and pure timer. It also can be used as electronic stopwatch.
• Users can choose cumulative mode and non-cumulative timing mode according to actual needs.

2.Features:

• Dual timing mode:cumulative and non-cumulative
• Wide input work voltage
• 3Bit red digital tube display
• Timing range:0.01s~999s

3.Parameters:

• Product name:QF-T01 DC6V-25V 3Bit Red Digital Timer Module
• Input voltage:DC 6V-25V
• Mode switch type:Jump cap
• Work Temperature:-40℃~85℃
• Work Humidity:5%~95%RH
• Module Size:65 x35 x12mm

4.Functions:

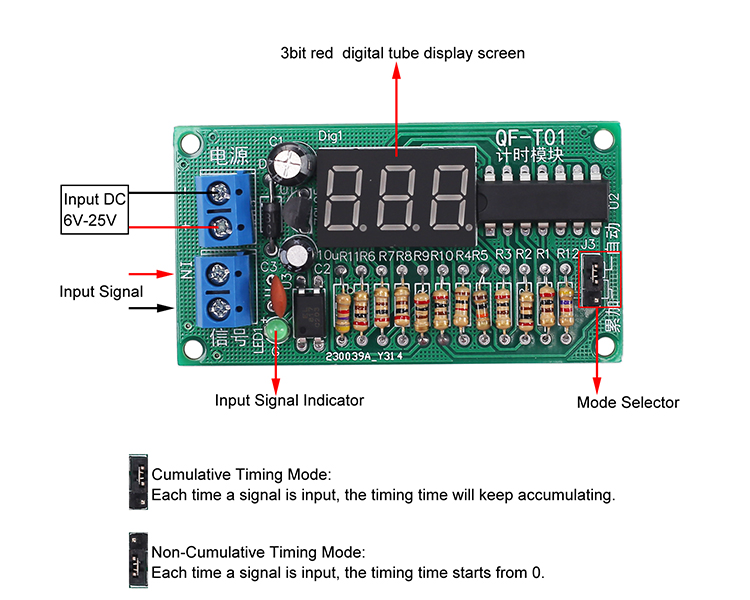

Cumulative Timing Mode:

• Connect the two pins below with jump cap.
• Each time a signal is input, the timing time will keep accumulating.
• Remove the working power to clear time to zero.
• Re-time from 001 seconds when the timing exceeds 999s.

Non-Cumulative Timing Mode:

• Connect the two pins above with jump cap.
• Each time a signal is input, the timing time starts from 0.
• Re-time from 001 seconds when the timing exceeds 999s.

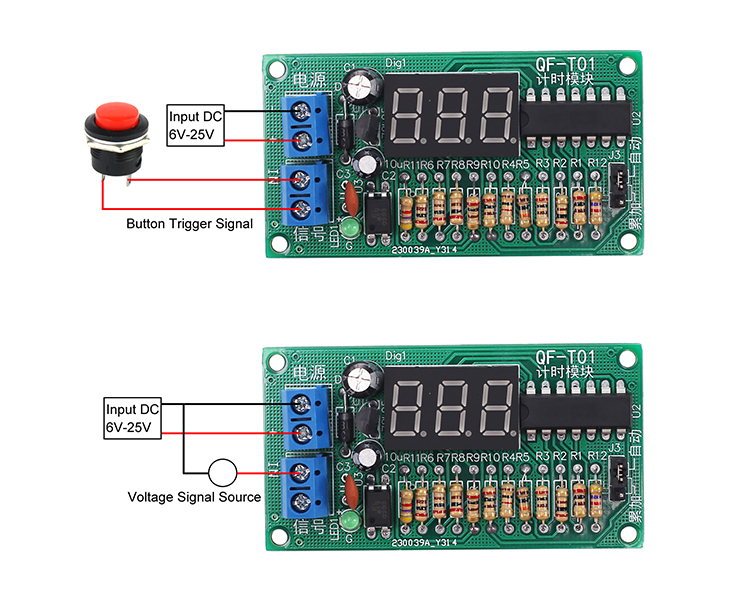

Input Signal Indicator:

• Green signal indicator turn ON when input signal.

Signal Type:

• Passive signal: Such as buttons, switches and so on.
• Active signal: Such as voltage signal, sensor and so on.

5.Main Function:

• It is used to monitor and display the time duration of the input signal.

5.Application:

• Product production quality inspection process
• Signal Stability Check
• Sports timing
• Athletics games or contests

6.Package:

1pcs QF-T01 DC6V-25V 3Bit Red Digital Timer Module
