Description:

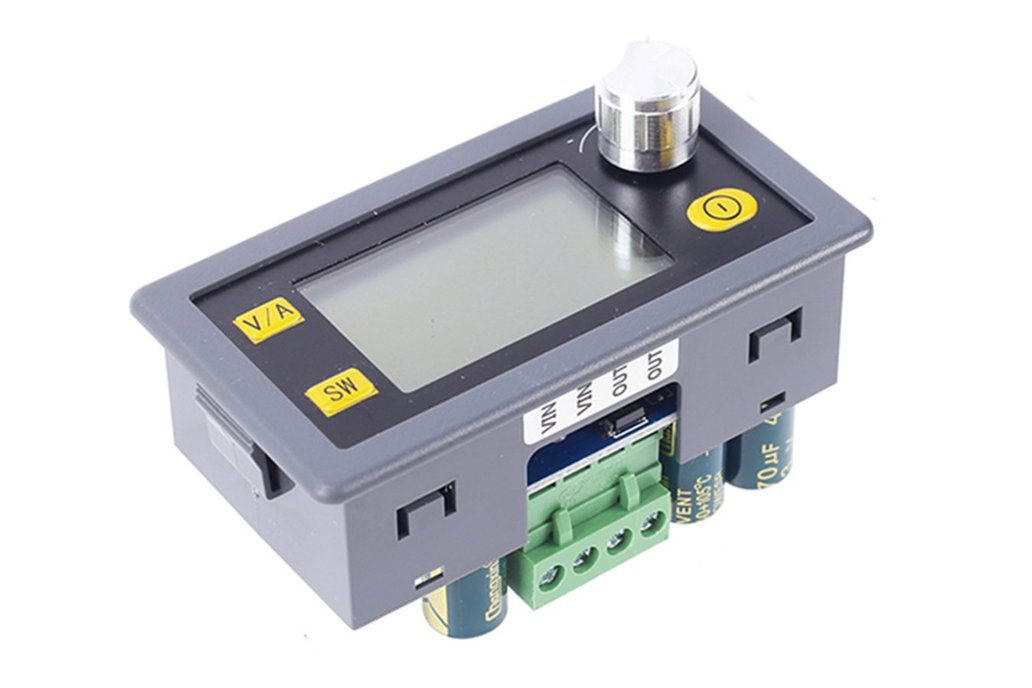

• XY-5008E is a DC-DC 400W 8A CVCC Adjustable Automatic Buck Power Supply Module with a new generation of larger LCD display screen. It is a non-isolated converter which supports solar charging.

• It can convert DC 6V-55V to DC 0.0V-50V power supply and can provide stable output.It can be used as ordinary buck power supply module, battery/solar charger or LED constant current drive and so on.

Features:

• Solar Charging: It can output a stable voltage value when the input voltage changes which is very suitable for solar energy systems such as solar charging, solar power supply, solar voltage conversion.

• Adjust CVCC: Constant voltage and constant current can not only stabilize the voltage, but also set the limit output current value to meet the current demand of the load. At the same time, it can also protect the load to avoid entering the over-current state.

• Larger HD LCD display screen: It adopts an upgraded full view large screen, which can display multiple parameters and working status at the same time.Experience more fluency.

• Programmable Multi Parameter: It can set/display output voltage/current/power,work time, output electric energy, output capacity, input voltage and ON/OUT/CV/CC work status.You can also set default output state after power on.

• Multiple Protection Mechanisms: Under-voltage, over-voltage, over-current, over-power protection, over-temperature, over-capacity, over energy protection and so on.

Functions:

• Adjust CVCC Control Output
• Solar Charging Control
• 400W High Power
• larger HD LCD Display Screen
• Multiple protection mechanisms
• Power-down Memory Function
• Power-down Saving Work Mode
• Parameter locking to avoid misoperation
• Automatic control cooling fan

Parameters:

• Product Name: XY-5008E 400W 8A CVCC Buck Power Supply Module
• Work Voltage:DC 6V-55V
• Output Voltage: DC 0.0V-50V
• Output Current: 0~8A
• Output Power: 400W(Max)
• Voltage Display Precision:+/-0.4%+0.01V
• Voltage Display Resolution:0.01V
• Current Display Precision:+/-0.5%+0.003A
• Current Display Resolution:0.001A
• Conversion efficiency:About 95%
• Soft start:Yes
• Over-temperature Protection:100℃
• Timeout Protection:Yes(0-100H adjustable, default OFF)
• Over-capacity Protection:Yes (0-9999AH adjustable, default OFF)
• Over-energy Protection:Yes (0-9999WH adjustable, default OFF)
• Work Temperature:-20℃~85℃
• Work Humidity:10%~85%RH
• Size:79x43x57mm
