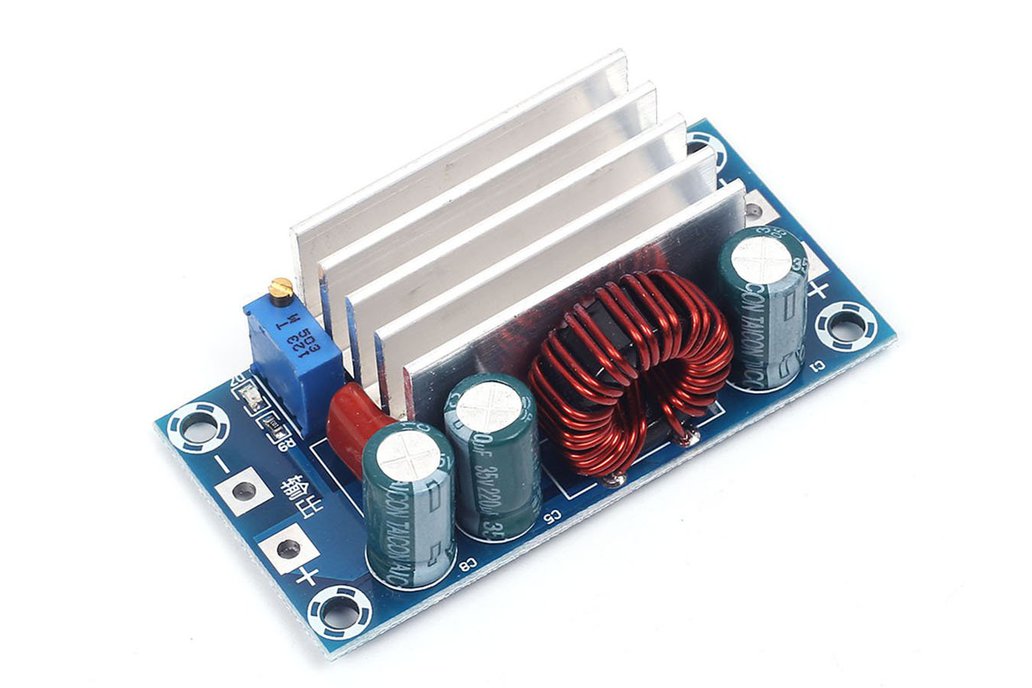

DC to DC Automatic Buck Boost Converter Power Supply Module Step Up Step Down Module
Sold By ICStation
This product is no longer available for sale.
The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.
Description: Automatic buck-boost power module. Fixed output for stable power. It can be used for solar energy, unstable power supply. Features: Supports boost and buck at the same time. Output v…
Read More…Automatic buck-boost power module. Fixed output for stable power. It can be used for solar energy, unstable power supply.
Supports boost and buck at the same time.
Output voltage stability.
Ultra low voltage ripple output.
Wide voltage input.
5>. 30W High Power.
Better heat dissipation.
Used as a constant voltage power supply.
| No. | Parameter | Value |
|---|---|---|
| 1 | Mode | XH-M245 |
| 2 | Input voltage | DC 6V-30V |
| 3 | Output voltage | 5V-30V |
| 4 | Input current | 3A(MAX) |
| 5 | Working frequency | 180KHz |
| 6 | Size | 62x31x22mm |
Input a voltage value within DC 6V-30V.
Use a voltmeter to test voltage at output port.
Adjust potentiometer to make sure the output voltage is your need.
Rotate the potentiometer counterclockwise to reduce the output voltage.
Rotate the potentiometer clockwise to increase the output voltage.
Car
Solar energy
Smart home
Factory
Greenhouse control
Motor control
A : No,it can not.The maximum output power is 30A.
A : No,it is not.
