1.Introduction:

• CCM6DS-T is a DC12V-80V 30A 0%~100% PWM DC Motor Speed Controller with 30Amp Fuse.
• It can drive DC motor up to 30A with a CCM6DS-K control display panel. It is easy to use and can be directly connected to the motor and to adjust motor’s speed.

2.Feature:

• Slow Start and Slow Stop
• Dual 30Amp Fuse to protect circuit inside and motor
• DC 12-80V wide voltage so that adapt to more DC motors
• 30A strong current output to provide enough driving capacity for the motor
• Adjust PWM from 0% to 100% which can control motor’s speed

3.Parameter:

• Product Name:CCM6DS-T 12-80V 30A PWM DC Motor Speed Controller
• Work Voltage:DC 12V - 80V
• Drive Current:30A(Max)
• Control Power:12V/250W; 24V/350W; 48V/500W and so on;
• Duty cycle:0%~100%(Adjustable)
• Work Frequency:21KHz
• Work Temperature:-20℃~85℃
• Work Humidity:5%~85%RH
• CCM6DS-T Size:110 x 77 x 36mm
• CCM6DS-K Size: 92 x 69 x 13mm

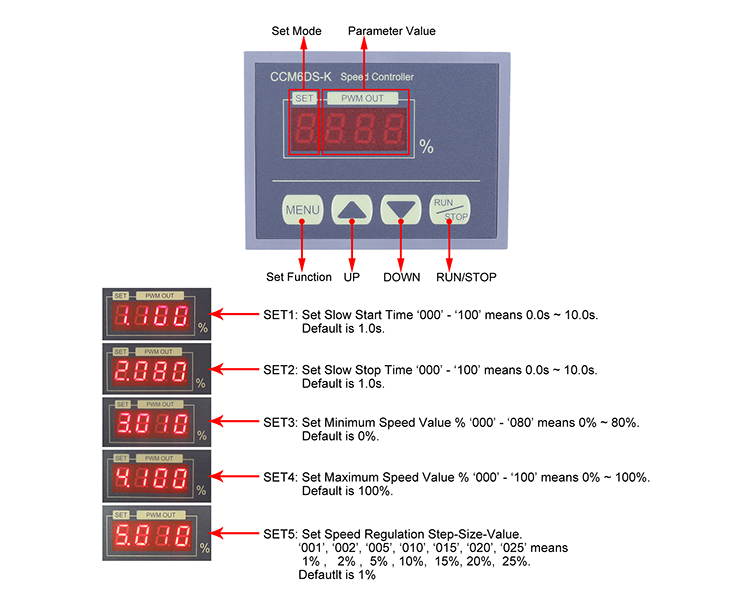

4.Set Parameter:

• Press ‘MENU’ button enter into set mode and switch parameter SET1~SET5.

• Press ‘UP’ and ‘DOWN’ buttons to change parameter value.Keep press can change value quickly.

• The first bit is mode and the remaining 3 bits is mode parameter value.

• E.g: display ‘2.010’ means that the current display mode is SET2 and the parameter value is ‘010’.

• Press ‘RUN/STOP’ button to save parameter and exit set mode to start running.

• ’SET1’ Function: 000-100 and display as ‘1.xxx’ which is used to set motor slow start time. Time from starting to 100% speed. Set time range is 0~10.0s and the default value is 1s. So ‘xxx’ is 000 to 100. Note: ’090’ means 9.0s.

• ’SET2’ Function: 000-100 and display as ‘2.xxx’ which is used to set motor slow stop time. Time from press stop button to complete stop. Set time range is 0~10.0s and the default value is 1s. So ‘xxx’ is 000 to 100. Note: ’090’ means 9.0s.

• ’SET3’ Function: 000-080 and display as ‘3.xxx’ which is used to set minimum speed value. Set range is 0%~80% and the default value is 0%. So ‘xxx’ is 000 to 80. Note: ’070’ means 70%. This value must be less than SET4.

• ’SET4’ Function: 000-100 and display as ‘4.xxx’ which is used to set maximum speed value. Set range is 0%~100% and the default value is 100%. So ‘xxx’ is 000 to 100. Note: ’070’ means 70%. This value must be greater than SET3.

• ’SET5’ Function: 001, 002, 005, 010, 015, 020, 025 and display as ‘5.xxx’ which is used to set speed regulation step size value. In normal display status, each time you press the ‘UP’ or ‘DOWN’ button , the speed changes 1%, 2%, 5%, 10%, 15%, 20%, 25%.

5.Use Steps:

• Select the matching power supply and DC motor.

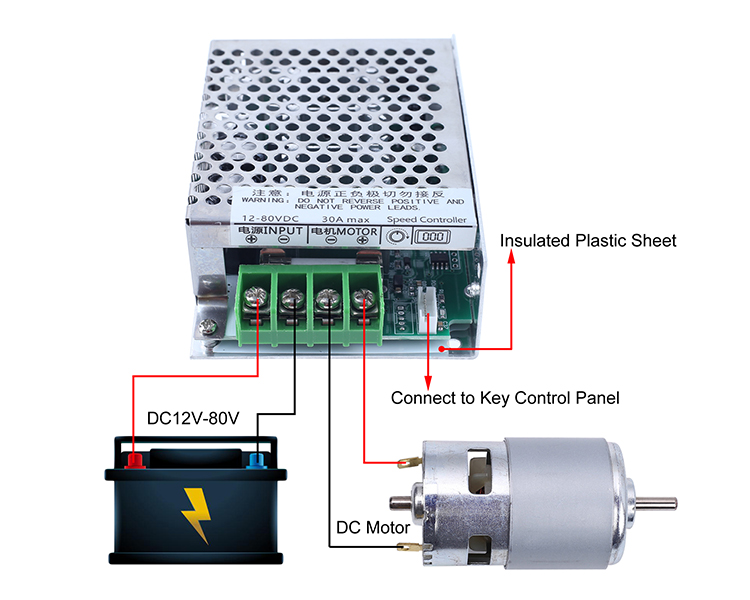

• Connect DC motor at output terminal which has mark ‘MOTOR +’ and ‘MOTOR -’ as wiring diagram.
• Connect motor driver and button/display panel by 5Pin wire.
• Input work voltage at input terminal which has mark ‘INPUT+’ and ‘INPUT-’ as wiring diagram. Note:The positive and negative poles of the power supply must be connected correctly.
• Set parameter and adjust motor speed.

6.Note:

• It can output voltage same to input voltage.So the input voltage must match the motor’s work voltage.
• Please pay attention to the positive and negative poles of the power supply. It can't be connected reversely.
• It just can input DC power supply.

7.Application:

• Cooling equipment control
• Heating equipment control
• Irrigation system
• Lamp adjust brightness

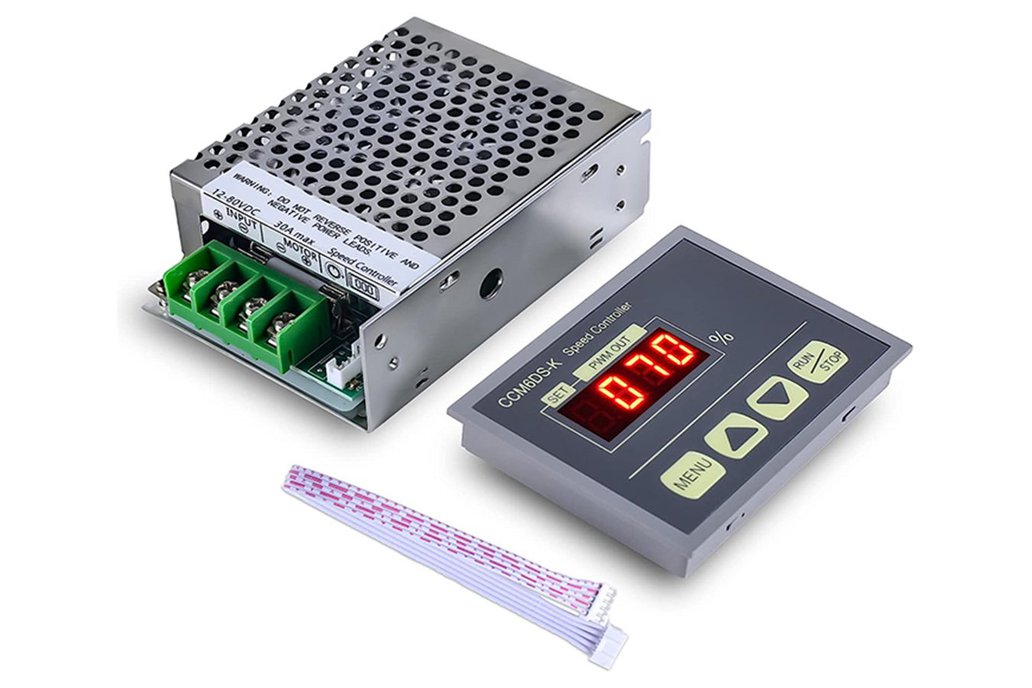

8.Package:

• 1pcs CCM6DS-T 12-80V 30A PWM DC Motor Speed Controller
• 1pcs CCM6DS-K Button/Display Control Panel
• 1pcs 20cm PH2.0-5Pin Wire
