DC Voltage Converter Board 2.8V-5.5V

Name: DC Voltage Converter Board 2.8V-5.5V
SKU: 8510
Price: 2.99 USD
Availability: InStock

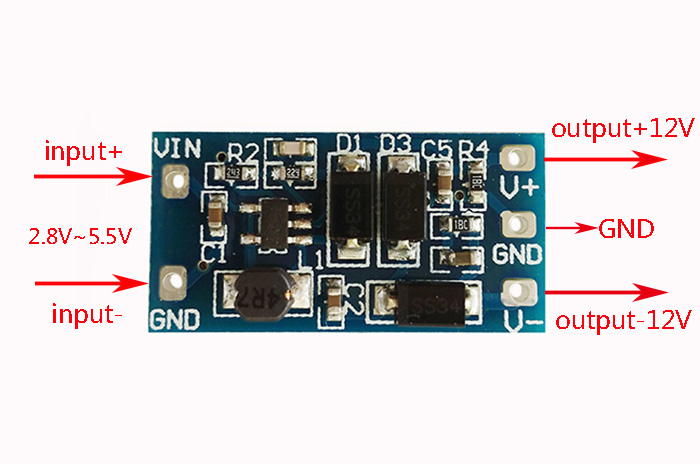

Power Supply Module DC Converter Board Module 2.8V-5.5V To +/-12V 2.4x1.2cm

Sold By ICStation

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Power Supply Module DC Converter Board Module 2.8V-5.5V To +/-12V 2.4x1.2cm

Product Introduction: Input Voltage Range:2.8V-5.5V Output Voltage:+/-12V (V +:+12V;V-:-12V) Output Current:+12V stable output current capability of 50mA,-12V stable output current capability 30mA,a…

Product Introduction:

Input Voltage Range:2.8V-5.5V
Output Voltage:+/-12V (V +:+12V;V-:-12V)
Output Current:+12V stable output current capability of 50mA,-12V stable output current capability 30mA,almost meet all ADC, DAC and amplifier applications
Size:2.4*1.2cm
Application:can be used as ADC,DAC or amplifier,dual power supply

Note: The -12V supply is lower 0.4-0.6V than the + 12V supply because of the the partial voltage of the diode. Please do not connect high-power load for this module is a small current.
