Description:

• DY-HL50T is a DC 12V 24V 60W Mono Voice Playback Module which can be trigger play by 9 input signal. It is a one-on-one segmented trigger control player that supports MP3 and WAV decoding formats; 9 input signal can be triggered in segments. Multiple triggering working modes can be set, suitable for various scenarios and applications.

Features:

• DC 9-24V wide voltage power supply
• 9-Channel one-on-one trigger interface, triggering up to 9 music
• Low level trigger version and directly using GND as a trigger signal
• Supports MP3 and WAV decoding formats, and audio file sampling rates up to 48KHz
• Supports TF card (up to 32G) storage and must be in FAT32 format
• Audio files can be replaced by connecting the computer with a USB data cable
• Equipped with a 60W Class D power amplifier, it can directly drive 4-8ohm, 20-60W speakers
• External warning lights can be connected and voltage is same to input voltage
• DIP switch is set with 8 trigger working modes
• Potentiometer adjusts volume
• High temperature and high voltage terminal blocks

Parameters:

• Work Voltage:DC 9V-24V
• Work Mode: 9-Kinds
• File Format: MP3,WAV
• Speaker Power: 10W-30W
• Output Impedance: 4ohm-8ohm
• TF Card Type:32G(Max and NOT included)
• Audio Output: Active output
• Adjust Volume: Yes
• Trigger Signal: Low Level Signal(NPN)
• Work Temperature:-20℃~85℃
• Work Humidity:5%~95%RH
• Module Size:76x58x22mm

Interface Description:

• GND/COM: Trigger signal common terminal.
• S1: Trigger playing 00001.mp3 music file.
• S2: Trigger playing 00002.mp3 music file.
• S3: Trigger playing 00003.mp3 music file.
• S4: Trigger playing 00004.mp3 music file.
• S5: Trigger playing 00005.mp3 music file.
• S6: Trigger playing 00006.mp3 music file.
• S7: Trigger playing 00007.mp3 music file.
• S8: Trigger playing 00008.mp3 music file.
• S9: Trigger playing 00009.mp3 music file.
• 9-24V Terminal: Input work voltage.
• Speaker: Connect to 4-8ohm speaker.
• Light/Alarm Output: Output voltage is the same to input work voltage. It can connect alarm/warning lights.
• Indicator: Green after power ON and red when playing.
• Micro USB Socket: Connect to PC and download music files.
• Potentiometer. Adjusting the volume.Increase volume clockwise.
• 3Bit Red Toggle Switch:Set 8 different triggering modes, which must be powered on again after changing the mode.
• TF Card Socket:Insert a TF memory card for use, up to 32GB, and the memory card must be in FAT32 format.

Note:

• It is a low-level trigger, and the input port can input a GND signal.
• The power must be restarted after switching modes.
• Inter-Cut Trigger mode application, where background music is stored in the root directory, and insert music must be placed in the "CHABO" folder. No need "CHABO" folder in others play mode.
• The music file name must be a 5-digit number, for example: 00001.mp3 ~ 00009.mp3
• TF memory card must be in FAT32 file system format and does not support NTFS file system format.
• Each input port can only control one music file such as S3 just can control music file 00003.mp3.

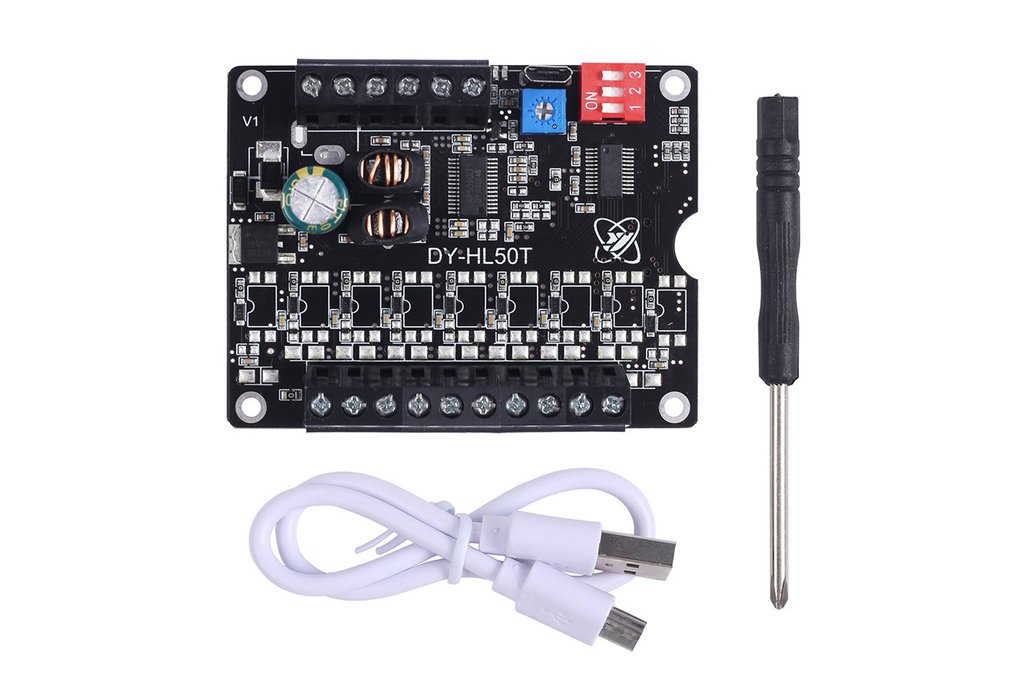

Package:

• 1pcs DY-HL50T 60W Mono Voice Playback Module
• 1pcs 30cm USB Wire
• 1pcs ‘ + ’ Screwdriver
