1.Introduction:

• 【Updated Digital to Analog Audio Converter】: It converts coaxial or toslink digital PCM/LPCM audio signals to analog L/R RCA and 3.5mm Jack Audio (not capable of being reversed). This Digital to Analog Audio Converter is designed for either home or professional audio switching.

• It can be used in digital LED TV / cloud TV / Apple TV / blue ray machine / network player / XBOX360 / computer optical fiber coaxial output sound card / digital set top box / network TV box and other electrical equipment with SPDIF coaxial audio / digital optical fiber audio output equipment which can use this converter to convert to analog audio signal L/R channel output.

• 【96KHz Sampling Rate】: Supports sampling rate at 32, 44.1, 48 and 96KHz; 24-bit S/PDIF incoming bit stream on left and right channels. Provides electromagnetic noise-free transmission. Note:When connected to the Toslink and Coaxial at the same time, the product will give priority to Toslink input.

• 【Aluminum Alloy Design】: Small and portable size, lightweight, durable and heat-resisted aluminum metal case make the converter convenient to carry and use, doesn’t take up too much space behind your entertainment center or desk.

• 【Easy operation & Wide Application】: With an optical cable and a coaxial cable to transmit digital or analog signals respectively, powered by (5V 1A) USB power cable(Does not come with adapter). Easy to install and simple to operate. Before installation, please make sure all devices you wish to connect have been turned off. Can be Used for PS3, PS4, Blu-ray Player, HD DVD, Home Cinema Systems, AV Amps, Etc.

• The device successfully decodes perfectly and sends the audio signal without damage and noise into the audio amplifier! Achieve perfect high fidelity lossless audio output function! Perfect audio visual!

2.Feature:

• Support SPDIF coaxial audio input
• Support digital optical fiber audio input
• R/L Audio and AUX audio dual output
• Support sample rates including 32KHz, 44.1KHz, 48KHz and 96KHz
• Easy to Install and Simple to Operate
• Support Uncompressed 2-channel LPCM or PCM Digital Audio Signal Output
• 24bit S/PDIF stream left and right channels

3.Parameter:

• Work Voltage:DC 5V / 1A
• Power Interface:DC-005
• Input type:Coaxial(RCA) and Toslink audio input
• Input type:R/L(RCA) Channel and 3.5mm AUX Stereo jack
• Applicable frequency:32KHz, 44.1KHz, 48KHz and 96KHz
• Work Temperature:-40℃~85℃
• Work Humidity:5%~85%RH

4.Note:

• Converter will give priority to Toslink input when connected to the Toslink and Coaxial cables at the same time.
• It Can Only Use 5V/1A Plug so please Do Not Use Other Plugs.
• Please don't forget to set the audio output to PCM or LPCM as it is not compatible with 5.1 Channel Signal, such as Dolby Digital or DTS 5.1, Dolby-AC3.
• If you are using TV as the audio resource, please do not forget to set your TV audio output to PCM/LPCM(Steps:Device homepage--system setting--image and sound---voice setting--digital audio output--PCM/LPCM).
• If you are using Panasonic TV as audio resource, please set TV audio output to SPDIF output.
• If you are using Samsung TV as speakers, please turn on its external speakers(Steps: menu - sound - speaker settings - external speakers - on).

5.Application:

• Digital LED TV
• Cloud TV
• Apple TV
• Blue ray machine
• Web player
• XBOX360
• Computer optical fiber coaxial output sound card
• Digital set top box
• Network TV box

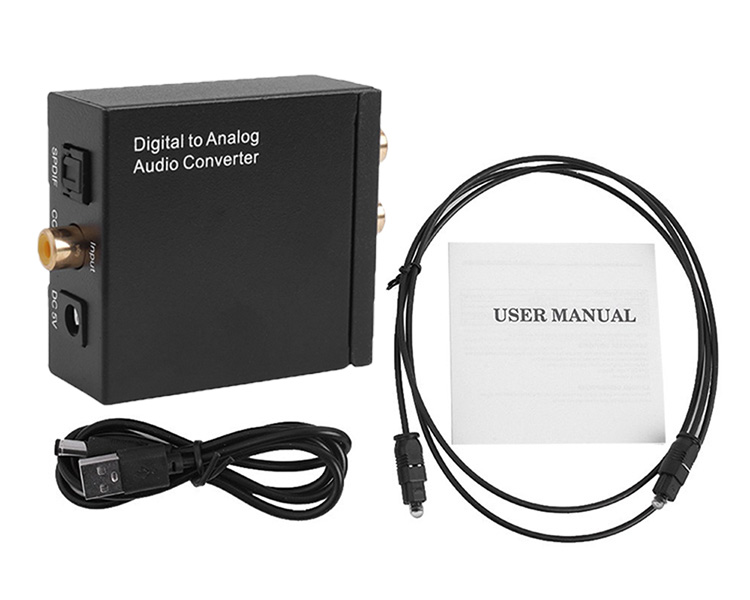

6.Package:

• 1pcs DAC Digital to Analog Audio Converter
• 1pcs 100cm Toslink cable (Optical cable)
• 1pcs 80cm USB to DC-005 Power Supply
