Product Features

   This module is made of high quality LED tube, it has high brightness and can display data clearly even under the sunlight. It uses the original imported Microcontroller to sampling and display voltage. It has also finished a large amount of data processing which makes it display accurately and stably. This module uses all SMT technology, it is of exquisite workmanship and small size. What’s more, it has reverse connect protection which can protect it from damage when the connection is opposite with the correct way.

Product Parameters

• The module name: the current display module
• The refresh rate: About 200ms
• Measuring range: 0A-5A
• Working current: less than 8mA
• Storage temperature: -10 degrees to +65 degrees
• Weight: 10g
• Measuring accuracy: 0.1%
• Display mode: three 0.36 "digital tube
• Power range: 4V-30V
• Display color: red blue green yellow
• Input impedance: 5 milliohms
• The peripheral size: 351410mm

Link Picture

Independent power supply wiring method

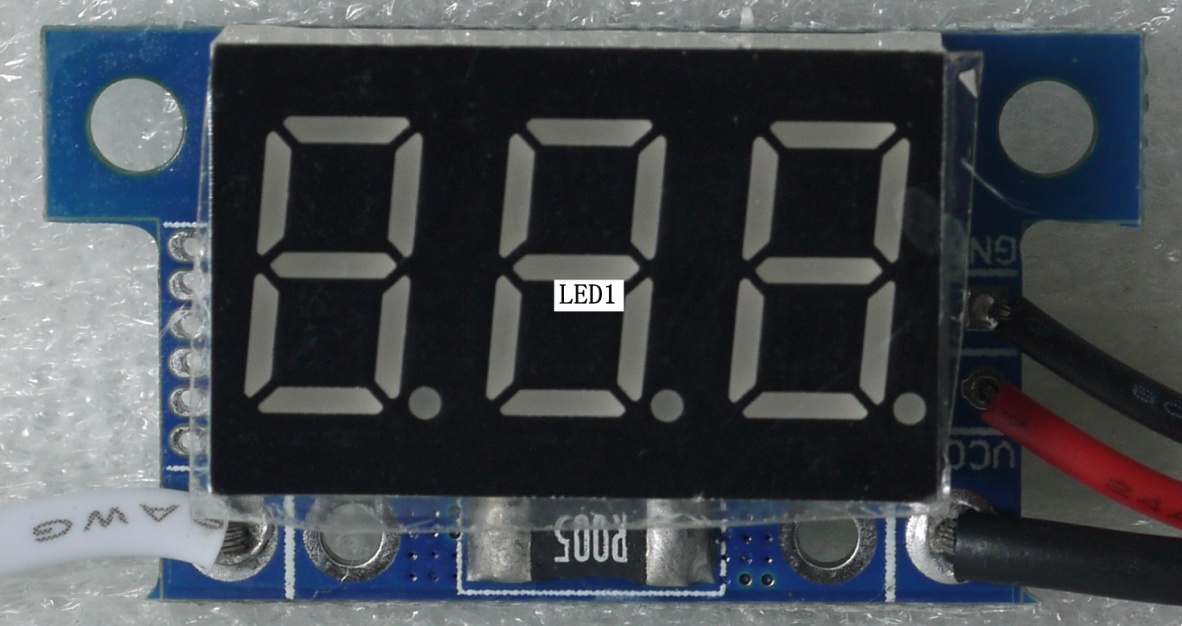

Product Picture
