DIY Kit Electronic Windmill Shaped LED Light

DIY Project. DIY Kits for Soldering Practice. Electronic Kits for Beginners.

Sold By ICStation

DIY Kit Electronic Windmill Shaped LED Light 1

DIY Kit Electronic Windmill Shaped LED Light 2

DIY Kit Electronic Windmill Shaped LED Light 3

DIY Kit Electronic Windmill Shaped LED Light 4

DIY Kit Electronic Windmill Shaped LED Light 5

DIY Kit Electronic Windmill Shaped LED Light 6

2022-05-09T07:34:16.015Z-Electronic Windmill Shaped LED Light.jpg

2022-05-09T07:33:55.982Z-Electronic Windmill Shaped LED Light_1.JPG

2022-05-09T07:33:55.982Z-Electronic Windmill Shaped LED Light_6.jpg

2022-05-09T07:33:55.982Z-Electronic Windmill Shaped LED Light_4.JPG

2022-05-09T07:33:55.982Z-Electronic Windmill Shaped LED Light_5.JPG

2022-05-09T07:33:55.982Z-Electronic Windmill Shaped LED Light_7.JPG

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

DIY Project. DIY Kits for Soldering Practice. Electronic Kits for Beginners.

Description: This is a DIY MCU design teaching Electronic windmills kit parts for soldering practice. Parameters: Operating voltage: 5V Work efficiency: adjustable speed PCB board material: RF--4 hi…

Read More…

Description:

This is a DIY MCU design teaching Electronic windmills kit parts for soldering practice.

Parameters:

Operating voltage: 5V
Work efficiency: adjustable speed
PCB board material: RF--4 high quality circuit board
Size: 40mm*50mm

Circuit Principle:

The circuit is based on MCU control.
MCU control different vertical LED lighting, so as to achieve the effect of windmill rotation.
The speed of the windmill can be changed by press the buttons.

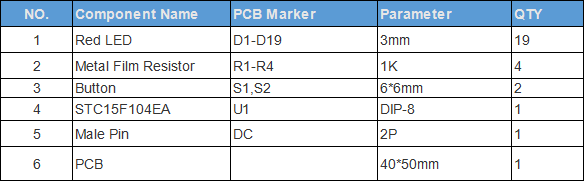

Component List:

Circuit Diagram:

Finished Product Picture:

Installation Steps:

Step 1: Install the 4pcs 1K resistor

Step 2: Install all the 19pcs LEDs

Step 3: Install the IC chip

Step 4: Install the buttons and power interface

Now, let's make it works!
