DIY Kit RDA5807 87MHz-108MHz FM Radio Receiver

Name: DIY Kit RDA5807 87MHz-108MHz FM Radio Receiver
SKU: 25429
Price: 13.99 USD
Availability: InStock
Rating: 2.00 (1 reviews)

(1 Review)

DIY Soldering Project, RDA5807 Radio Assembly Kits. 87MHz-108MHz FM Radio DIY Soldering Kit, Soldering Practice Kits

Sold By ICStation

DIY Kit RDA5807 87MHz-108MHz FM Radio Receiver 1

DIY Kit RDA5807 87MHz-108MHz FM Radio Receiver 2

DIY Kit RDA5807 87MHz-108MHz FM Radio Receiver 3

DIY Kit RDA5807 87MHz-108MHz FM Radio Receiver 4

DIY Kit RDA5807 87MHz-108MHz FM Radio Receiver 5

2024-07-16T08:26:44.194Z-DIY Kit RDA5807 87MHz-108MHz FM Radio Receiver.jpg

2021-11-20T03:30:47.797Z-FM Radio Receiver DIY Kit.6.JPG

2021-11-20T03:20:49.235Z-FM Radio Receiver DIY Kit.7.JPG

2021-11-20T03:20:49.235Z-FM Radio Receiver DIY Kit.8.JPG

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

DIY Soldering Project, RDA5807 Radio Assembly Kits. 87MHz-108MHz FM Radio DIY Soldering Kit, Soldering Practice Kits

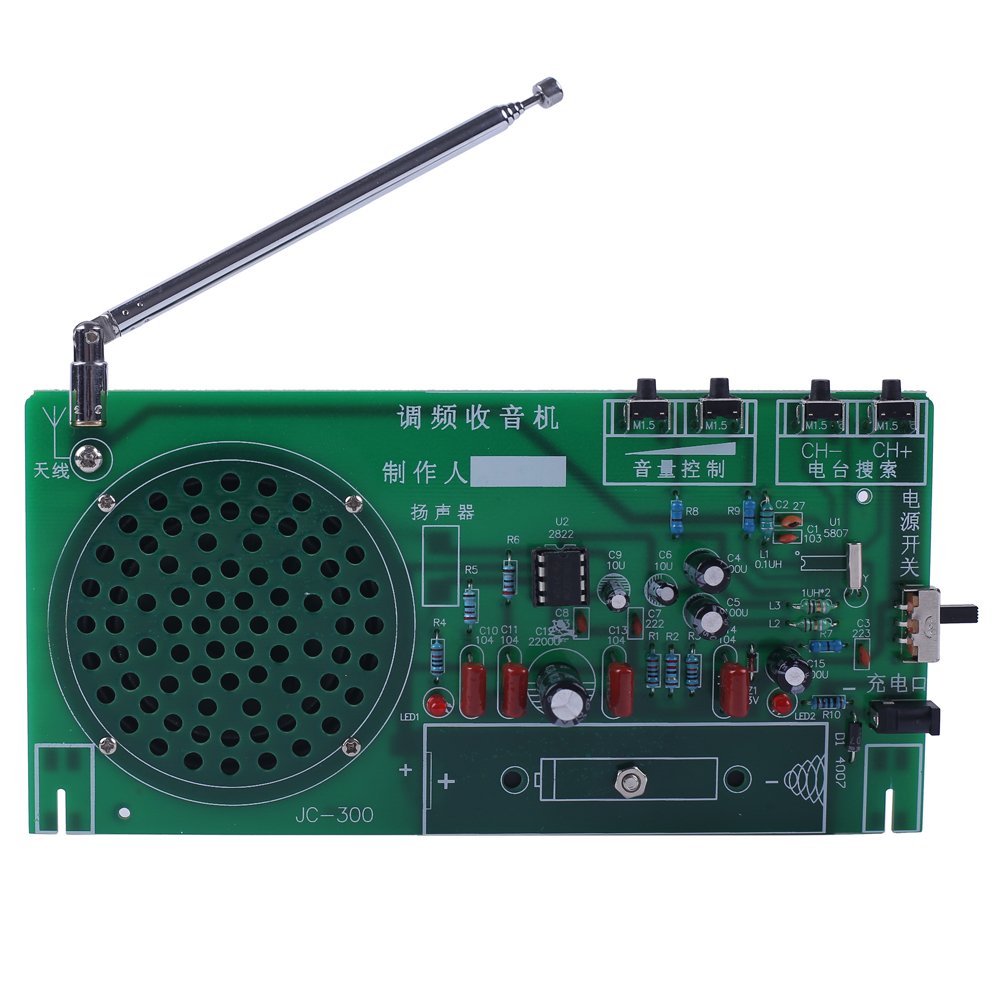

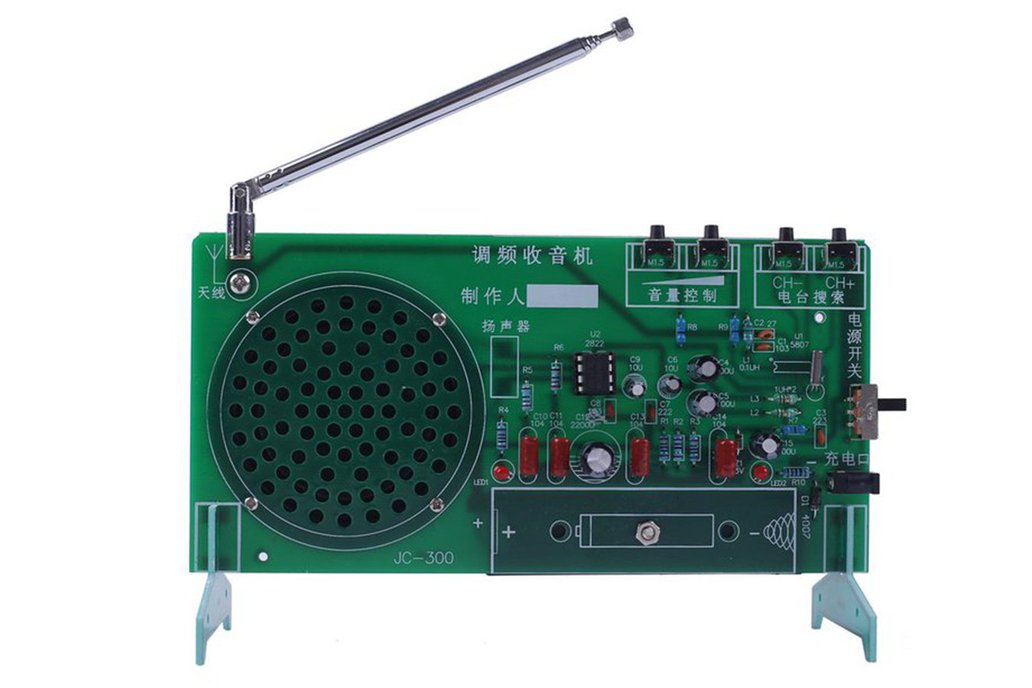

1.Introduction: JC-300 is a 3.7V RDA5807 87MHz-108MHz FM Radio Receiver DIY Kit. It is a simple FM receiver and can be used all over the world with power by 18650 rechargeable battery. It is very s…

1.Introduction:

JC-300 is a 3.7V RDA5807 87MHz-108MHz FM Radio Receiver DIY Kit.
It is a simple FM receiver and can be used all over the world with power by 18650 rechargeable battery.
It is very suitable for users to learn electronic circuits, practice and proficient soldering skills, and enhance electronic professional knowledge and interest.

2.Feature:

DIY soldering project.
Universal frequency 87MHz-108MHz.
Stable fixing bracket.
Support battery charging function.

3.Parameter:

Product Name:JC-300 RDA5807 FM Radio Receiver DIY Kit
Work Voltage:DC 3.7V
Power Type: 18650 Battery (Not Included)
Work Temperature:-25℃~85℃
Work Humidity:5%~95%RH
Size(Installed):170x110x60mm

4.Function:

Left two buttons are used to adjust volume.
Right two buttons are used to switch FM stations.
The switch on the side is the power switch. UP is ON and down is OFF.
Power socket is used to charging for 18650 rechargeable battery.

5. Schematic diagram:

6. Component list:

7. Installation Steps:

Please download the pdf documents

No country selected, please select your country to see shipping options.

Change Destination Country:

Review Breakdown

Average Ratings

Product: (1.00)

Documentation: (2.00)

Shipping: (3.00)

Communication: (2.00)

Richard | Jan. 29, 2022

I bought two so you do not have to!

Bought two of these kits - just as well as one of the RDA5807s was defective.

The one that did work sounded truly awful - I had to pack the speaker from the PCB with washers to cure that. The supplier should supply a gasket. This improved matters, but distortion can be an issue.

The two stands and the cut out for the aerial needed modifying with a needle file to ensure successful assembly.

**Safety issue** the supplier recommends an 18650 lithium cell, but there is no charging circuit for it! The builder of this kit would plug this thing straight into a USB power supply using the supplied power lead.....!

Not really recommended - especially any beginners interested in this kit.
