DIY Red LED Dot Matrix Clock SMD Soldering Kit

Name: DIY Red LED Dot Matrix Clock SMD Soldering Kit
SKU: 16262
Price: 18.99 USD
Availability: InStock
Rating: 3.88 (2 reviews)

(2 Reviews)

DIY Kit Red LED Dot Matrix Clock SMD Kit Parts C51MCU Temperature Control Module with Acrylic Shell

Sold By ICStation

This seller is taking a break until June 16, 2025. Sign up below to get an email when they're back!

DIY Red LED Dot Matrix Clock SMD Soldering Kit 1

DIY Red LED Dot Matrix Clock SMD Soldering Kit 2

DIY Red LED Dot Matrix Clock SMD Soldering Kit 3

DIY Red LED Dot Matrix Clock SMD Soldering Kit 4

DIY Red LED Dot Matrix Clock SMD Soldering Kit 5

DIY Red LED Dot Matrix Clock SMD Soldering Kit 6

$16.71

Sale! 12% off

On A Break

DIY Kit Red LED Dot Matrix Clock SMD Kit Parts C51MCU Temperature Control Module with Acrylic Shell

Description: This is the DIY LED dot matrix optical control LED digital clock kit parts. It's red with a acrylic shell. This product needs to be soldered and assembled by yourself. Parameters: Compo…

Description:

This is the DIY LED dot matrix optical control LED digital clock kit parts. It's red with a acrylic shell. This product needs to be soldered and assembled by yourself.

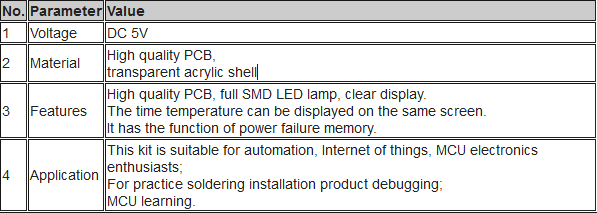

Parameters:

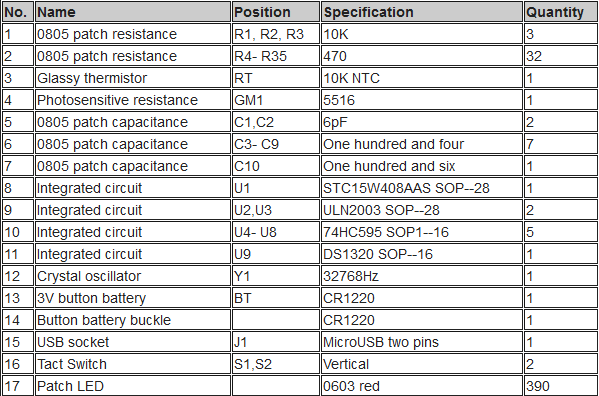

Component List:

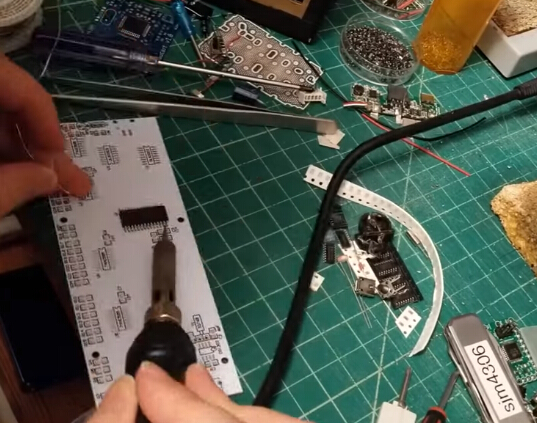

Tested by ICStation's Outstanding Partner sjm4306:

Learn More Details in the Video:

(The language in the video is English)

No country selected, please select your country to see shipping options.

Change Destination Country:

Review Breakdown

Average Ratings

Product: (4.50)

Documentation: (2.00)

Shipping: (5.00)

Communication: (4.00)

John | Dec. 20, 2020

Fun project, Not for beginners

This is a fun SMD project, if a litte tedious. In the end, it works as described. As for instructions, unless you know Chinese, forget it. There is a list that tells you positions and values for everything in English (like R25 is 24ohms or C21 is 100uf), but everything else is Chinese. And the link to show you how to do it is a dude soldering something else, like a solder how-to video...in Chinese. And the link to instructions online are...in Chinese. But if you have experience with SMD, reading codes on components, and polarities of LEDs, this is a fun project.

Robert | Aug. 27, 2020

Good little kit

Got here pretty quick, all things considered, went together good, though some may need help the instructions and the size of the leds that make it a challenge. Works really well and actually keeps pretty good time which is very unusual clock kits from Asia. I build then throw away most as they can not be used for their intended use. All in all, a good kit. I have purchased a few things from Tindie, and it always been a good experience.
