Description:

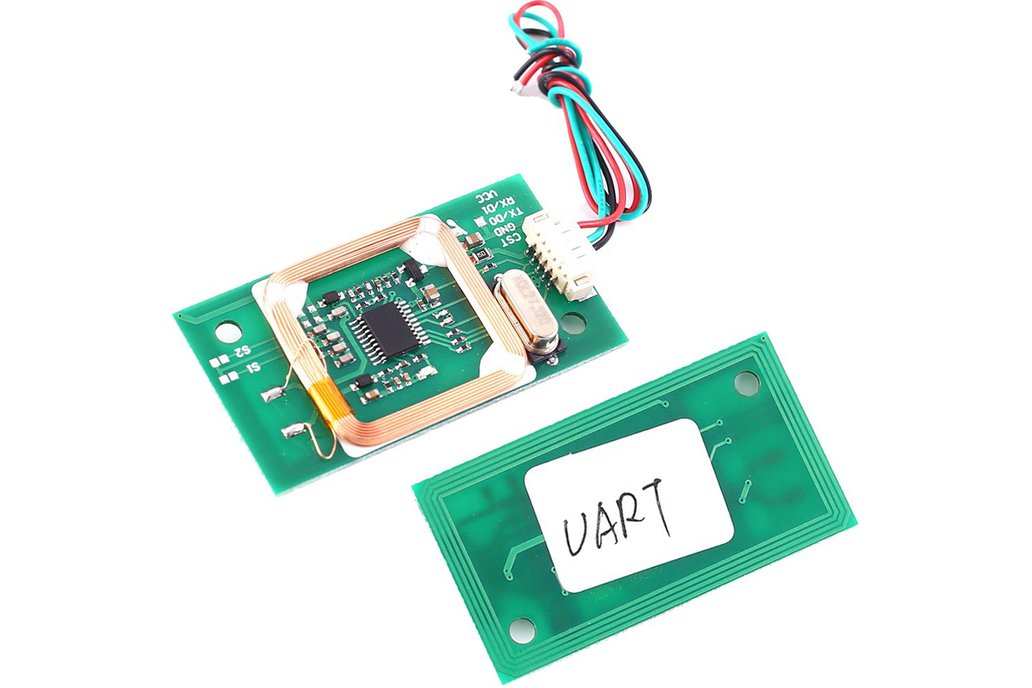

• It is a IC+ID dual frequency card reader module.
• Integrates a high-performance card reader RF circuit and antenna, replacing the UART data output protocol.

Note: Due to the shortage of the original chip, the product design has been changed to a new version since April 3rd, 2023. The function, size and interface did not change. Hope for your understanding.

Features:

• UART format output
• Support dual frequency RFID card
• Support ID+IC card

Parameters:

• Product Name: IC+ID Dual Frequency Card Reader Module
• Working Voltage: DC 5V
• Working Current: 40mA
• Support Reading:125kHZ and 13.56MHZ card reading
• Interface: UART
• Work Temperature: -35℃~85℃
• Work Humidity: 5%~95%RH
• Size: 47.5275.5mm

Uart Interface Output Introduction:

• Baud Rate:9600
• Data Header:0x02
• Length:0x09
• Card Type:0x01
• Card Number Data:SN0~SN3
• BCC Check:XOR operation of other data except head and tail of data
• End of Data:0x03
• The Card Types:0x02 EM4100/0x01 MIFARE 1K
• For Example: The data received by the serial tool is 02 09 02 04 2E 53 82 F0 03
• The 1st byte 0x02 indicates the start of data.
• The 2nd byte 0x09 indicates that the entire data length is 9 bytes, including the start of data and the end of data.
• The 3rd byte 0x02 indicates that the card type is EM4100.
• The 4th to 7th bytes (0x04 0x2E 0x53 0x82) These 4 bytes represent the card number read.
• The 8th byte 0xF0 indicates the BCC check from the 2nd byte to the 8th byte.
• The 9th byte 0x03 indicates the end of the data.

Applicable:

• Attendance fingerprint reader module
• Access control intercom card reader module

Package Included:

• 1pc IC+ID Dual Frequency Card Reader Module
• 1pc Wire
