1. Description:

It is a GY-US42 ultrasonic sensor module.The module can be adapted to different working environments and directly connected to the microcontroller.A USB to TTL module connection is required when connecting to a computer.IIC mode can directly connect with APM,Pixhawk,and other flight controllers.

2. Feature:

• It has built-in precise algorithms
• Ultrasonic non-contact measurement
• Test distance up to 720cm
• It supports IIC,serial,and PWM communication formats.
• Small power consumption,small size and easy installation.

3. Description:

• Product Name:GY-US42 Ultrasonic Sensor Module
• Working Voltage:3V~5V
• Working Current:9mA
• Resolution:1cm
• Response Frequency:15Hz
• Measuring Range:20cm~720cm
• Work Temperature:-20℃~65℃
• Storage Temperature:-40℃~85℃
• Work Humidity:5%~95%RH

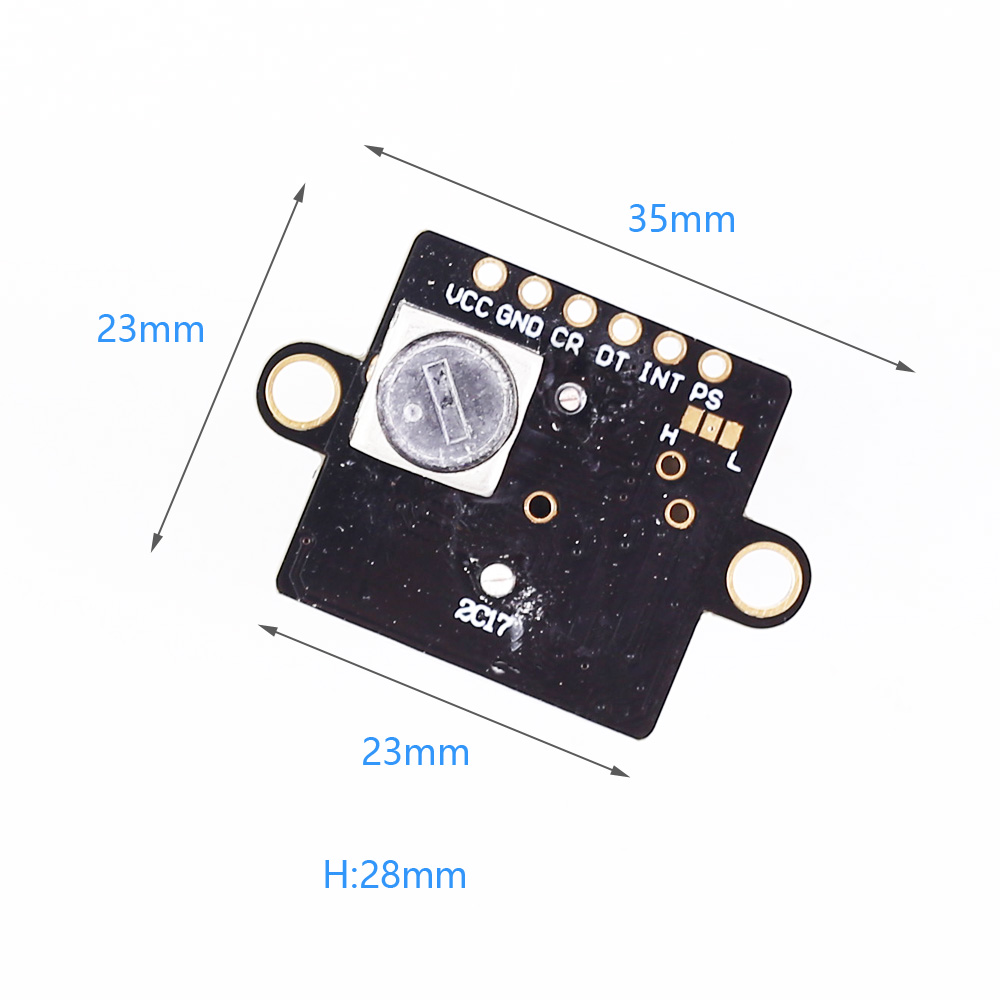

• Size:352328mm

4. Pin Description:

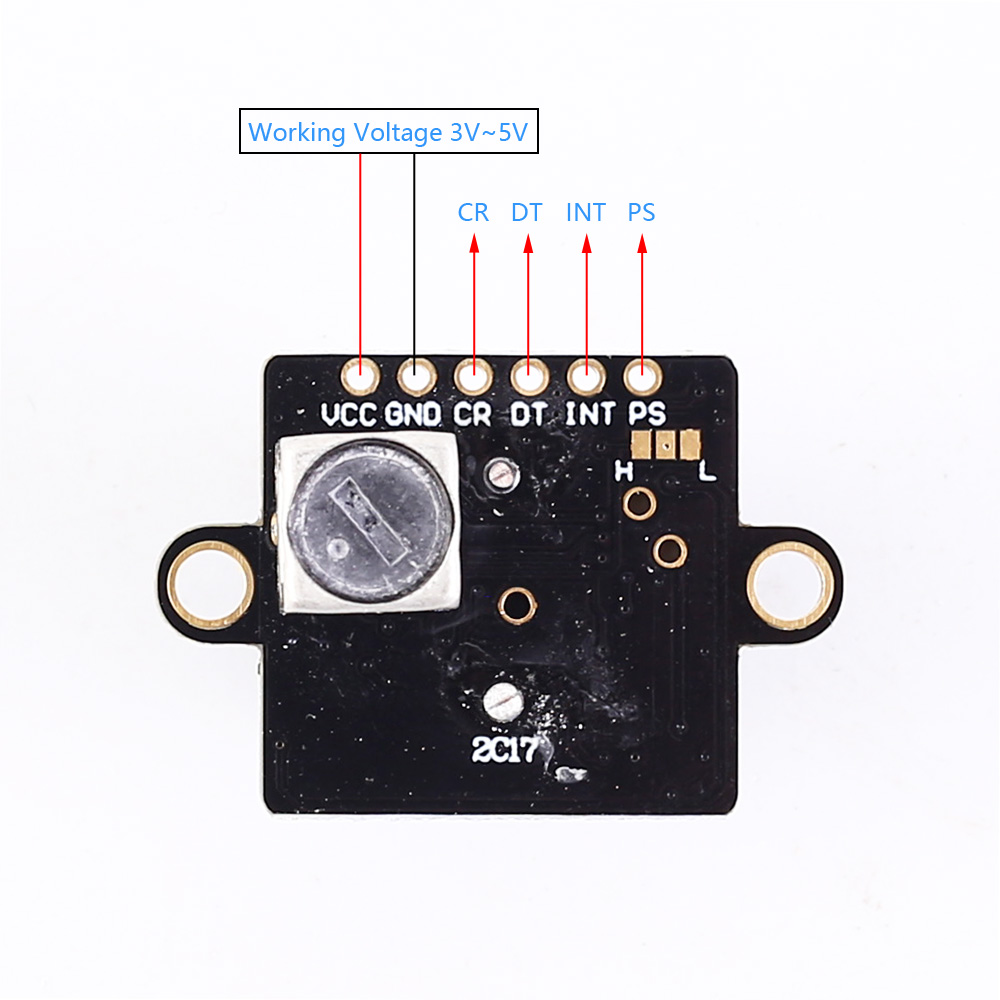

• Pin1:VCC
• Pin2:GND
• Pin3:CR,serial port USART_RX/IIC_SCL/Trig
• Pin4:DT,serial port USART_TX/IIC_SDA/Echo
• Pin5:INT,measurement status
• Pin6:PS,serial port/IIC/pulse mode conversion (default=IIC mode)
• PS pin hardware selection module working mode
• PS is left unconnected (default):IIC mode,Pin3(CR)=SCL,Pin4(DT)=SDA,Pin5 is INT status pin
• PS to VCC(PS=H):Serial UART mode,Pin3 (CR)=RX,Pin4 (DT)=TX,TTL level
• Connect PS to GND (PS=L):Pulse PWM mode,Pin3 (CR)=Trig trigger pin,Pin4 (DT)=Echo echo pin

5. Communication Protocol and Operation Steps:

5.1. Serial communication parameters: 9600,N,8,1/115200,N,8,1(default baud rate is 9600bps)

5.2. Module output format: Each frame contains 8-13 bytes (hexadecimal):

• Byte0:0x5A,frame header flag
• Byte1:0x5A,frame header flag
• Byte2:0x45,this frame data type(represents that this frame data is distance data)
• Byte3:0x02,the amount of data
• Byte4:0x00~0xFF,the first 8 bits of data
• Byte5:0x00~0xFF,lower 8 bits before the data
• Byte6:0x00~0xFF,checksum (the previous data is accumulated and only the lower 8 bits are left)

5.3. Distance length calculation method:

• Distance=(Byte3<<8)|Byte4 (cm)

5.4. Serial command command:

• Command format: 0xA5+command+command+sum checksum
• Sum checksum=sum of the first three data, take the lower 8 bits

5.5 .Output mode setting instruction:

• 0xA5+0x55+0x15+0x0F:Query IIC address
• 0xA5+0x56+0x01+0xFC:Query output distance data
• 0xA5+0x56+0x02+0xFD:Continuous output distance data, about 10hz (default)

5.6. IIC address setting instruction:

• 0xA5+0x57+addr+sum:addr is the IIC 8-bit address, the lowest bit must be 0

5.7. Baud rate configuration:

• 0xA5+0x58+0xAE+0XAB:9600 (default)
• 0xA5+0x58+0xAF+0XAC:115200

5.8. Save/restore configuration:

• 0xA5+0x5A+0x01+0X00:Save output configuration,IIC address, baud rate configuration
• 0xA5+0x5A+0x02+0X01:Restore factory settings, restore IIC address, baud rate

5.9. Operation steps in serial mode:

• Use USB to TTL module or MCU to connect with GY-US42 module
• TX-RX,RX-TX, the wiring method is cross connection.
• The GY-US42 module defaults to automatic output. The TX pin sends data. You can get data directly on the serial port. For the format, refer to the communication protocol.
• For other operations, you can refer to the protocol to send corresponding instructions.

6. Application:

• Intelligent robot
• Teaching laboratory instruments
• Product line inspection
• Quadcopter
• Anthropometric
• Smart car

7. Package:

• 1pcs GY-US42 Ultrasonic Sensor Module
• 1pcs Pin
