Range of application

1. The motion detection
2. The body feeling game
3. The electronic image stabilization
4. The navigation

Specifications

1. The power supply voltage: 5V
2. Communication: IIC
3. The output resolution: 16 bit
4. Gyroscope measuring range: ±250, ±500,±1000, + 1000dps and ±2000dps
5. The accelerometer measurement range: ±2，±4，±8，±16g
6. The PCB size: 23 x 23 mm
7. Install distributed distance: 18 x 18 mm
8. The installation hole size: Φ 3

Product Features

The MPU-6000™ family provides the world's first integrated 6-axis MotionProcessing™ solution that eliminates the package-level gyro/accel cross-axis misalignment associated with discrete solutions. The devices combine a 3-axis gyroscope and a 3-axis accelerometer on the same silicon die together with an onboard Digital Motion Processor™ (DMP™) capable of processing complex 9-axis MotionFusion algorithms. The parts' integrated 9-axis MotionFusion algorithms access external magnetometers or other sensors through an auxiliary master I2C bus, allowing the devices to gather a full set of sensor data without intervention from the system processor.

For precision tracking of both fast and slow motions, the parts feature a user-programmable gyro full-scale range of ±250, ±500, ±1000, and ±2000°/sec (dps) and a user-programmable accelerometer full-scale range of ±2g, ±4g, ±8g, and ±16g.

The devices are offered in the same 4x4x0.9 mm QFN footprint and pinout as the current MPU-3000™ family of integrated 3-axis gyroscopes, providing a simple upgrade path and making it easy to fit on space constrained boards.

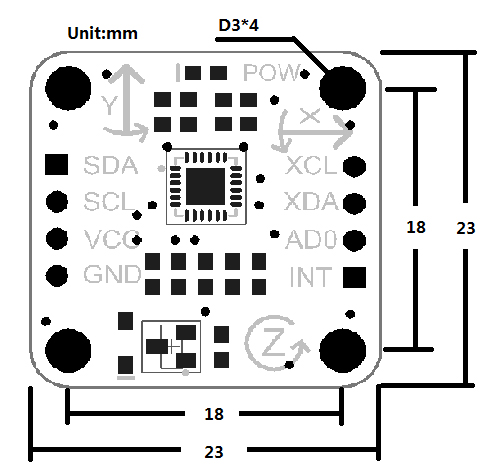

Size
