Description:

• XY-Y100H is a high-power 100W+100W HIFI Stereo Bluetooth 5.1 Audio Amplifier Module which also can be controlled by APP Sinilink and remote controller.
• It can modify the Bluetooth name and password, also can turn ON/OFF Bluetooth prompt tone. 2.0 channels audio signal output.
• Built-in amplifier module therefore it can connect to loudspeaker directly. It is ideal for DIY wireless Bluetooth speakers and transponders.

Features:

• Bluetooth APP Control : It can not only be used as an ordinary Bluetooth receiver, but also use the special Bluetooth APP SiniLink to achieve the play state switching and sound quality playback. In particular, it can support the modification of the Bluetooth name and set the Bluetooth pairing password which greatly improving the safety of the use of the product. At the same time, the Bluetooth prompt tone can also be turned ON or OFF as your needs.

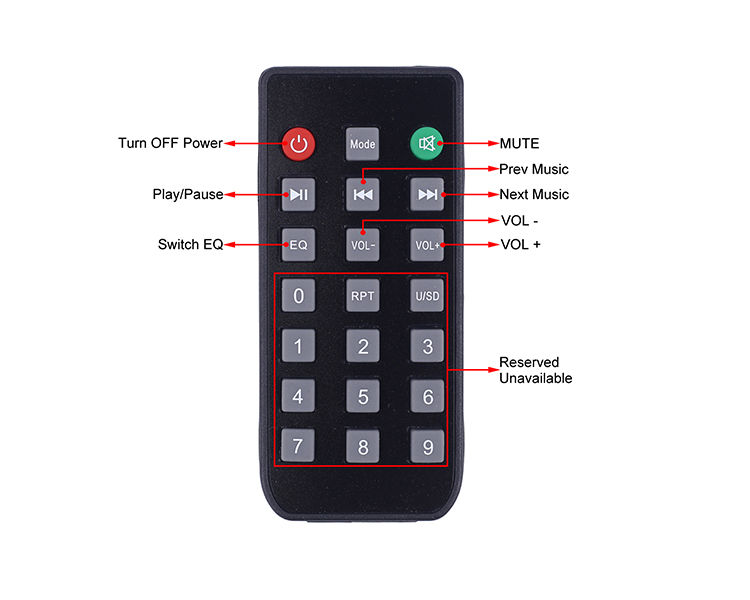

• Remote Control : It uses an infrared remote control with silicon rubber buttons which can improve user experience. It can adjust the volume, switch music, switch sound effects, and also mute and turn off the power which can implement remote control and more convenient operation.

• Bluetooth/AUX/U-disk : It can not only receive music via Bluetooth, but also via AUX and U-disk to fit different needs. It is capable of playing WAV,FLAC,APE,MP3 music files. Independent power switch to control its working status at any time.

• 100W+100W Dual Channel Stereo: It has a built-in TPA3116D2 amplifier chip to provide 100W*2 high power drive capability with DC 9V-24V work voltage.Recommended to use more than 5A current to get more clear, bright and high fidelity sound.

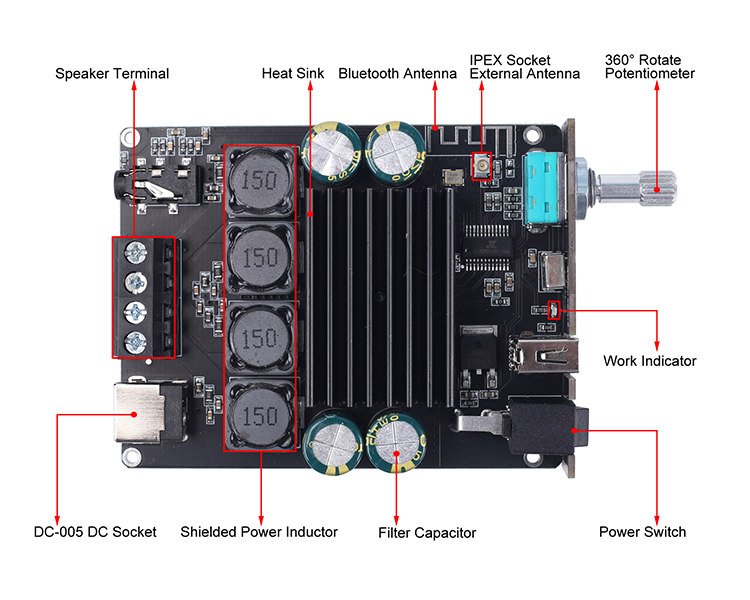

• Easy and fast operation: It only needs to connect the matching power supply and speaker to start working. The on-board 360° infinite tuning potentiometer can not only adjust the volume, but also playing and pause easy and fast operation. At the same time, an IPEX external antenna socket is reserved for effective receiving Bluetooth signals when the XY-Y100H is installed in a metal box.

• Protection Function : It has multiple protection mechanisms to ensure its safe operation with Over-voltage protection, under-voltage protection, short-circuit protection, overheating protection, clipping protection.

Functions:

• Bluetooth APP Control
• Remote Control
• Independent Power Switch
• Bluetooth/AUX/U-disk Audio Input
• HIFI 100W+100W Dual Channel Stereo
• ON/OFF Prompt Voice
• Modify Bluetooth Name
• ON/OFF Bluetooth Password
• Modify Bluetooth Password
• Adjust Volume for Prompt Voice
• 360° Infinite Adjust Volume

Parameters:

• Work Voltage:DC 9V-24V(12V or more recommended)
• Work Current:>5A
• Unique function:Sinilink APP control
• Controller IC: TPA3116D2
• Channel:2.0 channel stereo output
• Bluetooth:BLE 5.1
• Audio input type:Bluetooth/AUX/USB
• Audio output type:Left/Right
• Adjust volume:360° Potentiometer adjustment
• Frequency range:20Hz-20KHz
• Communication distance:15meter(Max)
• Over temperature protection:Yes
• Short circuit protection:Yes
• Over voltage protection:Yes
• Under voltage protection:Yes
• Clipping protection:Yes
• Work Temperature:-20℃~85℃
• Work Humidity:5%~95%RH

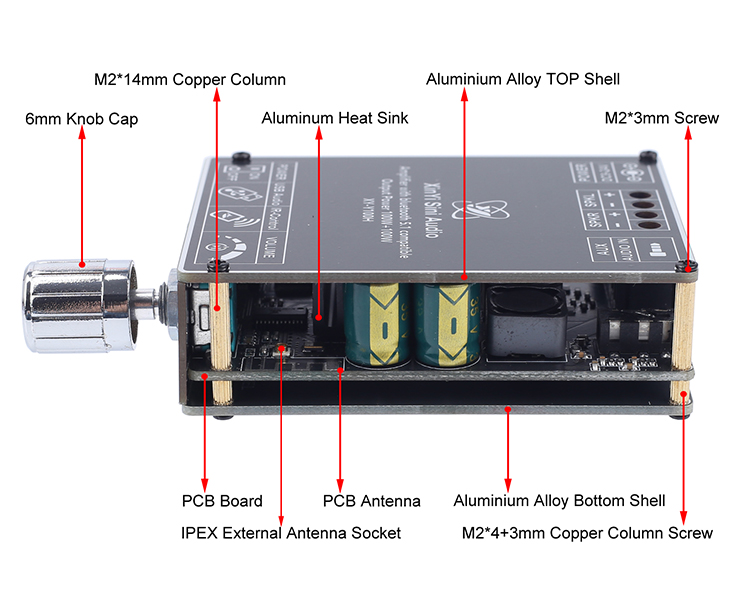

• Module Size(Installed):95x59x22mm

Output power:

• Output power 10W*2 at 12V 8ohm
• Output power 30W*2 at 24V 8ohm
• Output power 20W*2 at 12V 4ohm
• Output power 50W*2 at 21V 4ohm
• Output power 70W*2 at 24V 4ohm
• Output power 100W*2 at 21V 2ohm

Use steps:

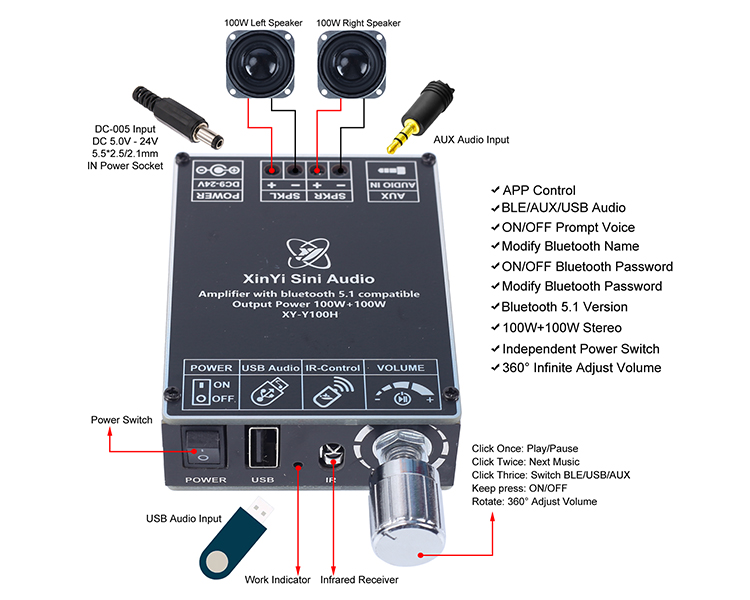

• Choose the right speakers and connect as shown in wiring diagram.
• Connect to right power supply from DC-005 power socket.LED indicator will flashing and it means that module enters pairing mode.And then speak prompt voice and it means that module is waiting for pairing.
• Turn ON power supply switch.
• Turn ON Bluetooth on phone.
• Select Bluetooth device ‘XinYi’ or modified name in your Bluetooth device listing.
• LED indicator will keep ON and it means that module is successfully connected and is waiting for playing.
• XY-Y100H will playing music after select music on phone.LED indicator will keep slowly blinking.
• Adjust potentiometer to change volume as you need.
• Open APP Sinilink and register an account if need control by APP. Note: You can choose to log in as a tourist without registering.
• Click the dot in the left to add device.
• Select ‘Bluetooth devices’ and then Search Bluetooth.
• Select devices ‘Sinilink-APP’ or ‘XinYi’ or ‘XYV122V....’ to connect module.
• User can adjust volume, select next or previous, play/pause, select EQ, reset name, enable/disable/set password, enable/disable Bluetooth prompt tone.
• XY-Y100H will speak prompt voice if disconnected.
